Service manual

3-12.

Disassembly of the REEL TABLE, IDLER

PLATE TOTAL ASS’Y (Fig. 3.15)

a. Remove the POLY WASHER ! and separate the

IDLER PLATE TOTAL Ass’y @ from the

mainbase.

b. Remove the REEL TABLE $ from the REEL

TABLE POST # of the MAINBASE.

3-13.

Disassembly of the REEL BRKT TOTAL

ASS’Y, CONNECT PLATE (Fig. 3.16)

a. Turn over the DECK MECHANISM and remove 2

screws !.

b. Remove the REEL BRKT TOTAL Ass’y @ from

the MAINBASE.

c. Separate the CONNECT PLATE # from the

MAINBASE by pushing to the direction of the arrow.

CAUTION:

• Take care not to deform the IDLER PLATE

TOTAL Ass’y @ when assembling and

disassembling.

CAUTION:

• Avoid getting Grease, Oil or Foreign substance on

the FELT of the Band BRAKE.

• Disassembly of the IDLER Ass’y should be precede

the disassembly of the REEL BRKT TOTAL

Ass’y.

• Check the operation of the REEL BRKT TOTAL

Ass’y before assembly.

• Check for smooth operation of FF/REW, PLAY,

CUE and REVIEW without existence noise.

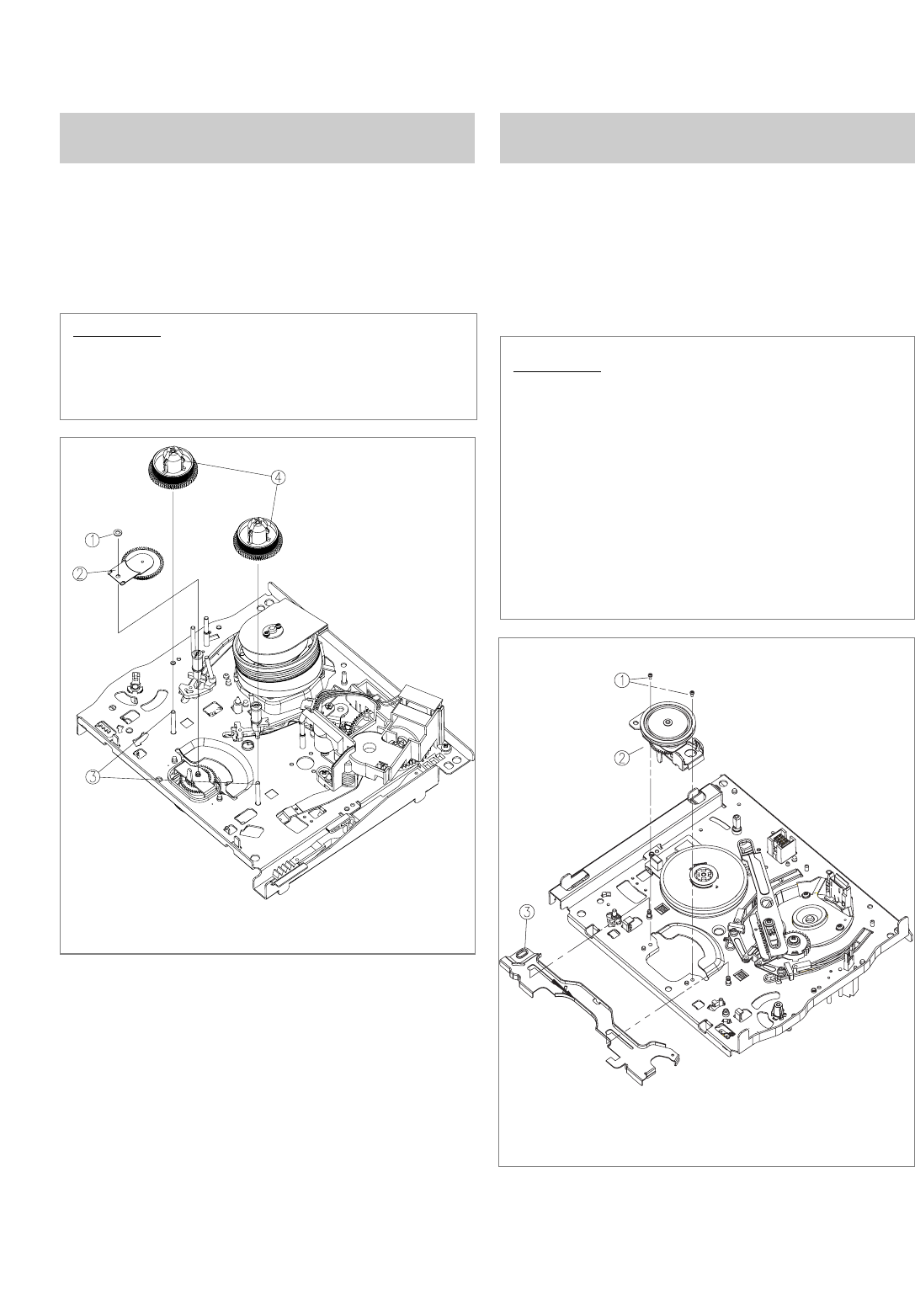

FIg. 3.15 Disassembly of the REEL TABLE and the

IDLER PLATE TOTAL ASS’Y

FIg. 3.16 Disassembly of the REEL BRKT TOTAL

ASS’Y and the CONNECT PLATE
