3-8. Disassembly of the S/T BRAKE ASS’Y
(Fig.3.12)
a. Unhook the S BRAKE SPRING # from the
MAINBASE HOOK !.
b. Remove the S BRAKE Ass’y @ from the mainbase.
c. Remove the T BRAKE SPRING ^ from the
MAINBASE HOOK $.
d. Remove the T BRAKE Ass’y %.
3-9. Disassembly of the TENSION BAND
ASS’Y (Fig. 3.13)
a. Unhook the TENSION SPRING @ from the
MAINBASE HOOK !.
b. Unhook the MAINBASE HOOK “A” and remove
the TENSION BAND Ass’y # from the mainbase.
3-10. Disassembly of the Capstan Motor
(Fig. 3.13)
a. Separate the CAPSTAN MOTOR % after the
removal of 3 screws $ holding the capstan motor.
3-11. Disassembly of the FE HEAD (Fig. 3.13)
a. Remove the screw ^ and separate the FE HEAD &
from the MAINBASE.
CAUTION:
• After the assembly of TENSION BAND Ass’y on
the mainbase, adjust the TENSION POLE location
as shown in Fig. 3.14.
• Avoid getting Grease, Oil or Foreign substance on
the FELT of the BAND BRAKE.
•
Take care not to deform the MAINBASE HOOK “A”
when separating the TENSION BAND Ass’y # .

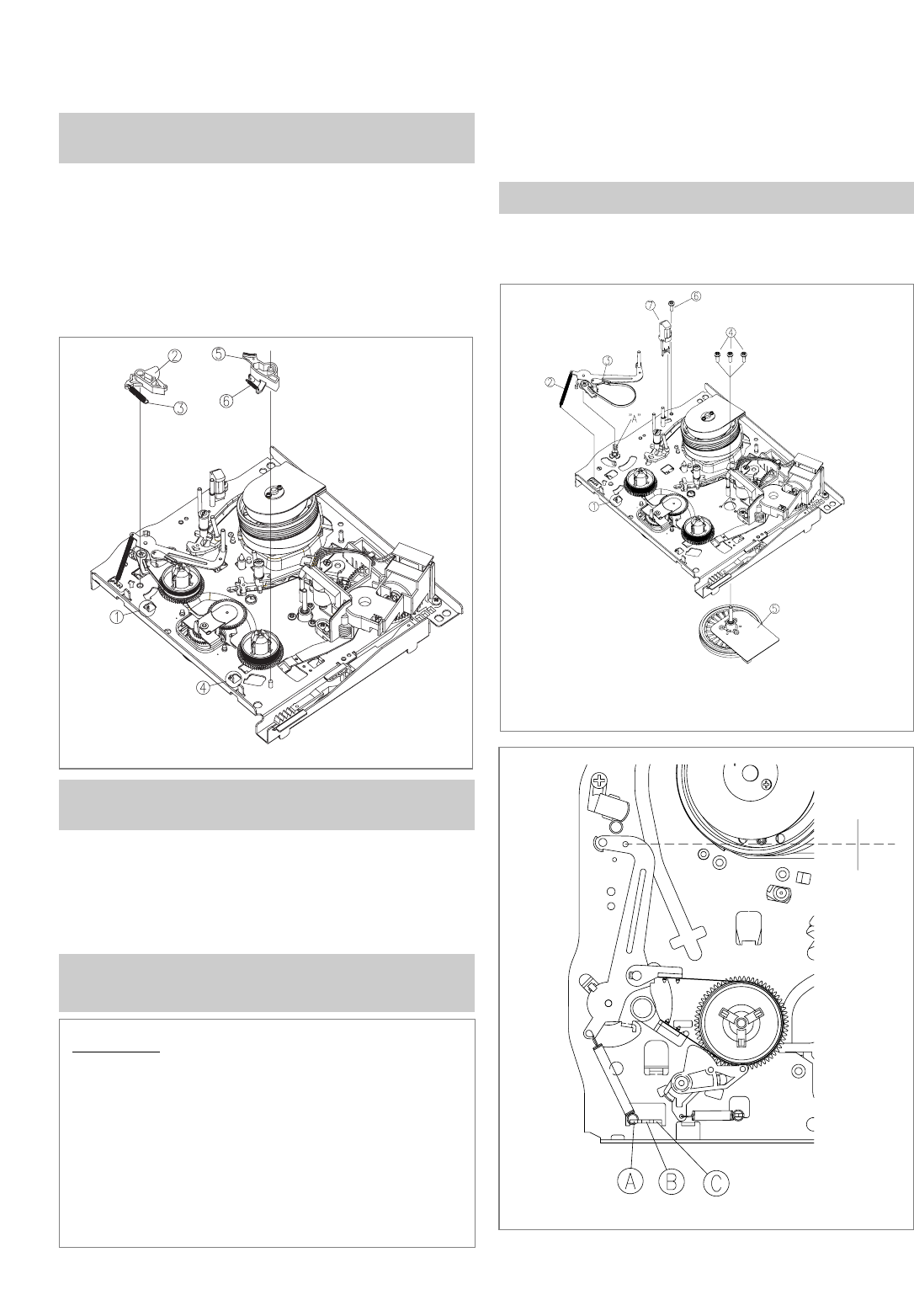

FIg. 3.12 Disassembly of the S/T BRAKE ASS’Y
FIg. 3.13 Disassembly of the TENSION BAND ASS’Y,
CAPSTAN MOTOR and the FE HEAD
FIg. 3.14 Adjustment of the TENSION POLE POSITION
