3-1. Removal of the FRONT LOADING
Ass’y (Fig. 3.1)
a. Unscrew the 2 screw holding the F/L ass’y.
b. Separate the F/L Ass’y from the MAINBASE ass’y
by lifting the rear part of F/L (Screw Hole).
3-2. Disassembly of FRONT LOADING
Ass’y (FIg. 3.2~3.5)
a. Remove the washer holding the door opener and
separate F/L Assembly by moving the DOOR
OPENER in the direction of arrow.
b. Remove the 2 screw holding the TOP PLATE and
separate the CASSETTE HOLDER Ass’y by moving
the FL BRKT L and FL BRKT R in the direction of
arrow. (Fig. 3.2)
NOTE:
Remove the FRONT LOADING Ass’y in eject
mode.

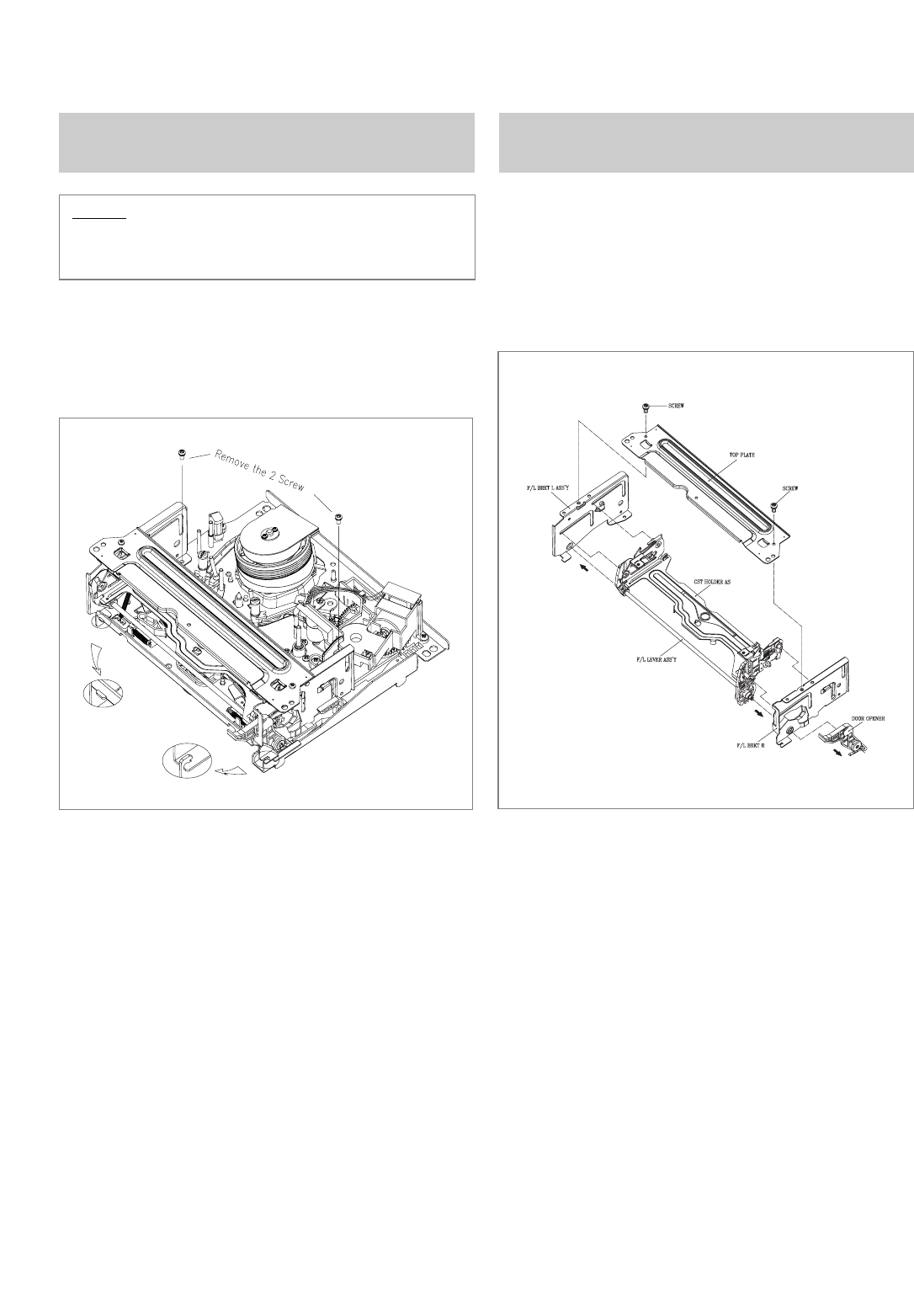

Fig. 3.1 Removal of the FRONT LOADING Ass’y
FIg. 3.2 Disassembly of the FRONT LOADING Ass’y
