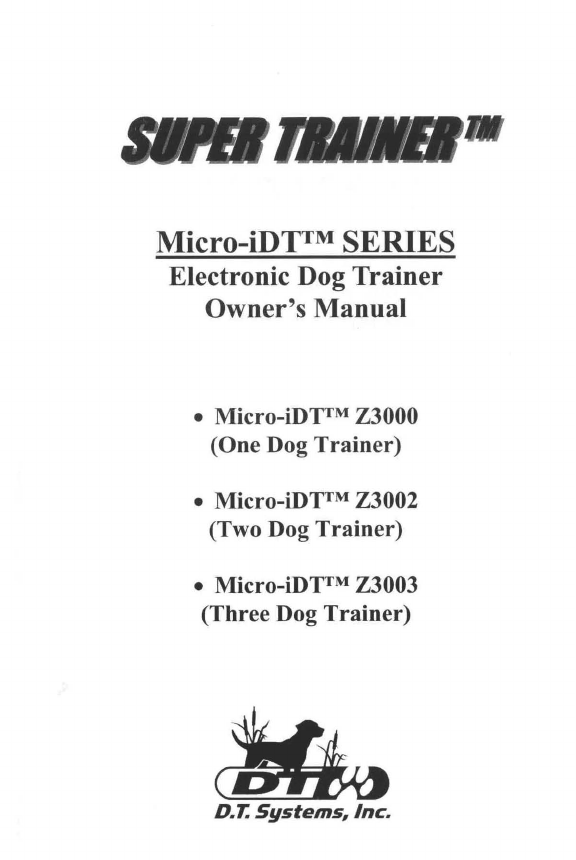

Micro-iDTTMSERIES Electronic Dog Trainer Owner's Manual Micro-iDTTM23000 (One Dog Trainer) Micro-iDTTM23002 (Two Dog Trainer) Micro-iDTrM23003 (Three Dog Trainer) d % D.Z Systems, Inc.
3 ' t NOTICE! According to how you use your transmitter, the transmitting range might be much different.
TableofC~nknts ......................................... 3 Introduction..................................................4 Package Contents ......................................... 5 Model Features.............................................6 Adjusting and Positioning Your Collar for Proper Fit............................ 7 Parts and Functions ...................................... 8 Turning ON and OFF ...................................13 Batteries .......................................................
Congratulations and thank you for purchasing our Micro-iDTTM Training Collar. The Micro-iDTTM series represents the absolute latest technological advancement in the Electronic Dog Training World. It offers Maxx-RangeTM,the industry's only internally woven antenna in the collar. With up to a 900 yard range, they are perfect for field or household use. Micro-iDTTMseries collars feature Sixteen levels of stimulation intensity, with an easy 'no-look' clicking intensity selection dial.
Transmitter Collar Receiver (1-for Micro-iDTm Z3000,2-for Micro-iDTTMZ3002,3-for Micro-iDTTM23003) Rechargeable Batteries for the Collar (already installed in collar unit) Battery Charger Charging Cable Test Light Owner's Manual TX battery not included IMPORTANT NOTE: Please read this owner's manual in its entirety before operating this unit. Should you have any questions about ow collars or their operation please contact ow Customer Service department (see back page for contact information).
MODEL FEATURES Every Micro-iDFMElectronic Dog Training System Features: Digital Technology Up to 900 yard range Lightweight, compact collar and transmitter 16 adjustable intensity levels of Momentary ('Nick') Stimulation and Constant Stimulation Positive Vibration Gentle Touch SystemTMExtra Mild Stimulation MAXX-RangeTMInvisible, Embedded Collar Antenna Built in safety shut-off Rechargeable Ni-MH battery system in collar Completely waterproof collars Weather resistant transmitter The Micro-iDFM23002 comes w
ADJUSTING & POSITIONING YOUR COLLAR FOR PROPER FIT rluper I r;ullal ~~yrlir less dl IU p u s ~ i I~ u ~ are very important to insure safety and correct functioning every time All electronic collars need to fit very snugly to work properly. They must be just tight enough to allow the "prongs" or electrodes to make good skin contact. In most cases, you should be able to fit no more than two fmgers between the collar belt and your dog's neck.
Toggle Switch (multiple dog units only) I Intensity Selection Dial LED lndicatorLight Vibration Button- Momentary -''Nick'' Stimulation Button 1 timulation Magnet Indicator(Red Mark) \Model Number I Transmitter (Micro-iDT 23002 shown)
PARTS & FUNCTIONS CONT. I Intensitv Selection Dial The intensity selection dial allows you t choose between sixteen different level of stimulation for very precise control. select in^ P r o ~ e rIntensitv Level The first and most important step in training your dog with your Micro-iDTFMTraining System is determining the correct Intensity Level to provide the proper training stimulation without over-shocking your dog. To do this, turn the Collar Unit ON and properly place it on the dog's neck.
Magnet Indicator (Red Mark) RED mark indicates the location of the agnet in the transmitter. The indicator is sed to turn the receiver ONIOFF and for ID rogramming. Transmitter Indicator Light When any of the buttons on the transmitter is pushed, the RED light will turn on to indicate that the transmitter is being operated. When the battery is low, the RED light will flash rapidly. Remote Training Buttons Pressing the "NICK" button causes the collar to administer a Momentary, or 'Nick' Stimulation.
Collar Belt with Embedded Receiver Antenna Y Electrodes -ww Red Mark (Magnetic Switch Indicator) attery Charging I LED Indicator Light Collar Receiver Collar LED Indicator Lipht The red LED light on the collar unit will flash to indicate the unit is ON. When the battery in the collar unit has a sufficient charge, the red LED light will flash about once every two seconds while the unit is ON.
Electrodes Electrodes should fit snugly on the dog's neck to ensure good contact with the skin. For more information on the proper fit of the collar, see page 7. Collar Belt with Embedded Receiver Antenna The embedded collar antenna is woven into the collar belt, and runs the along the entire length of the belt. Do not cut the collar belt. Doing so will damage the antenna and may result in Battery Chargin? Receptacle The battery charging receptacle is located on the side of the Collar Unit.
Turning the Collar Unit ON 1. Hold the Red Mark (Magne Indicator) on the left side of th transmitter directly against the Re Mark (Magnetic Switch Indicator on the front of the collar receiver. 2. A small red LED light inside the Collar Unit will light up solid for about 1 second, and then will begin to flash. 3. You may remove the Transmitter away from the Collar Unit as soon as the LED light starts flashing 4. The Collar Unit is now ON. The LED light should continue to flash to indicate the ON status. 1.
All Micro-iDPM training collars are equipped with rechargeable Nickel Metal Hydride (NiMH) batteries. NiMH batteries are not memory sensitive and do not require depletion before recharging. The batteries come partially charged from the factory. It is, however, recommended that you give the battery a full charge before the first use. This takes about 12 hours. Remember - Always keep batteries away from flammable substances (especially when charging).
Before testing, make sure that the collar unit is fully charged and the power to the Collar Receiver is "ON". To Test the Electronic Stimulation: 1. Place the tester firmly on the Colla Unit electrodes as shown. 2. Set the intensity level (a setting of 4 or less may not light the tester due to its low intensity level). 3. Push either the 'NICK' or 'CONT' button. 4.
If you own a multiple dog unit, you must select the collar that is being programmed on the Collar Selecting Switch before starting this procedure. 1. Hold the Red Mark (Magnet Indicator) on the left side of the Transmitter directly against the Red Mark (Magnetic Switch Indicator) on the front of the Collar Receiver. 2. A small red light inside the Collar Receiver will light up solid for about 1 second, followed by 6 flashes. You must keep the Transmitter next to the Collar Receiver during this time. 3.
Before you start training, your dog should be examined by a veterinarian to assure that your dog is in good health. Never leave your dog unattended with the unit on. Since no electronic device is perfect, there is a very slight possibility that your dog may receive an unintentional electric stimulation. Your Micro-iDTTMTrainer is a very valuable tool if used correctly.
It is very important to periodically clean your Micro-iDTTM Trainer for nlaxin~ulnperformance. Regular cleaning will also lengthen the life of your unit. Clean the Micro-iDFM Trainer collar box with lukewarm water and a mild anti-bacterial soap. Take care to thoroughly clean the space between the electrodes and the belt. The belt and buckle should be cleaned with water and a mild soap then allowed to dry completely. After each cleaning, always allow the entire unit to completely dry before use.
All Micro-iDTTM Trainer collars have a one year parts and labor warranty, effective from the original date of purchase. A copy of the original sales receipt is required to validate the date of purchase. NOTE Micro-iDTTMTrainer batteries are not covered under the warranty. FCC COMPLIANCE Your Micro-iDTTMTrainer has been manufactured under complete compliance with the Federal Communication Commission (FCC).
D,I: Systems, Inc. 2872 Walnut Hill Lane Dallas, Texas 75229 Tel: (214) 350-9446, (888) LUV-U-DOG Fax: (214) 350-7847 Website: http://www.dtsystems.com E-mail: customerservice@dtsystems.
