A·X·U·M User Manual Version 2.5 - 2011-01-28
AXUM from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 99 -
19 Appendix B – Surface service
If you browse to the url
http://192.168.0.234/service (where 192.168.0.234 should be your local
console IP address) you have a service menu with give some management possibilities.

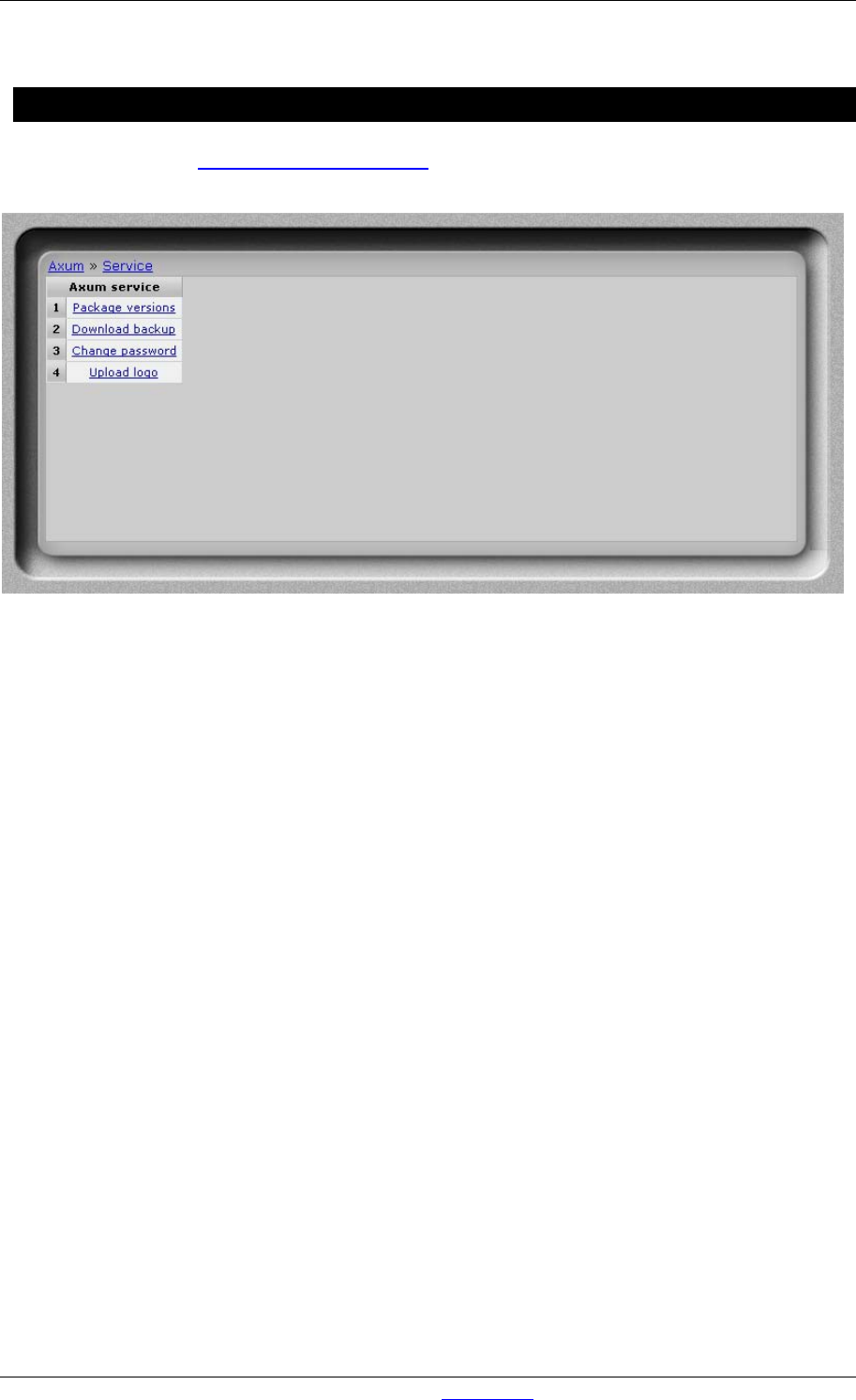

Figure 51: Console service menu
• Package versions
Shows the packages, version and build/install date.
• Download backup
Downloads a file which is a complete image of the internal flash disk.
• Change password
Here you can change the password for the webserver
• Upload logo
Here you can upload your own logo which will appear on the meter screen.
