A·X·U·M User Manual Version 2.5 - 2011-01-28
AXUM from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 95 -

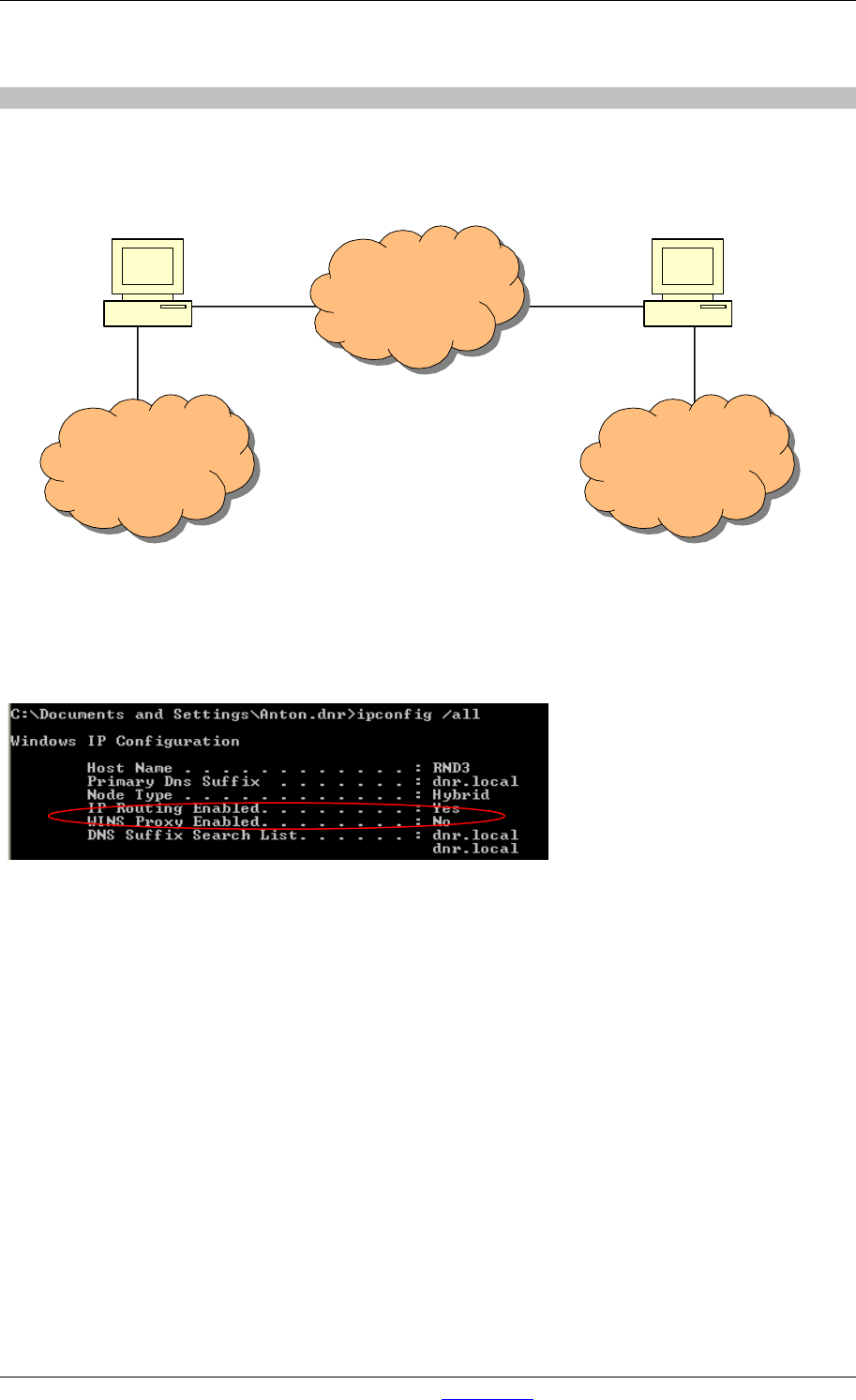

18.3.3 Practical solution 3: Physical separated switches and PCs if IP router
It is also possible to have a PC configured to do IP routing. Of course, it is necessary to have two or
more network cards before you can make IP routing. In our example we will show an setup with two
PCs with two network card. (As you can imagine it will also be possible with one PC using three
network cards)
On a PC you can give the command: ipconfig /all
This will show if your PC is configured as a router:
If not you have to use regedit to change a parameter to ‘1’ in the registry (this requires a reboot).
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\IPEnableRouter
AXUM 1
Physical
switch 1
AXUM 2
Physical
switch 3
OFFICE
Physical
switch 2
PC if
IP router
PC if
IP router
