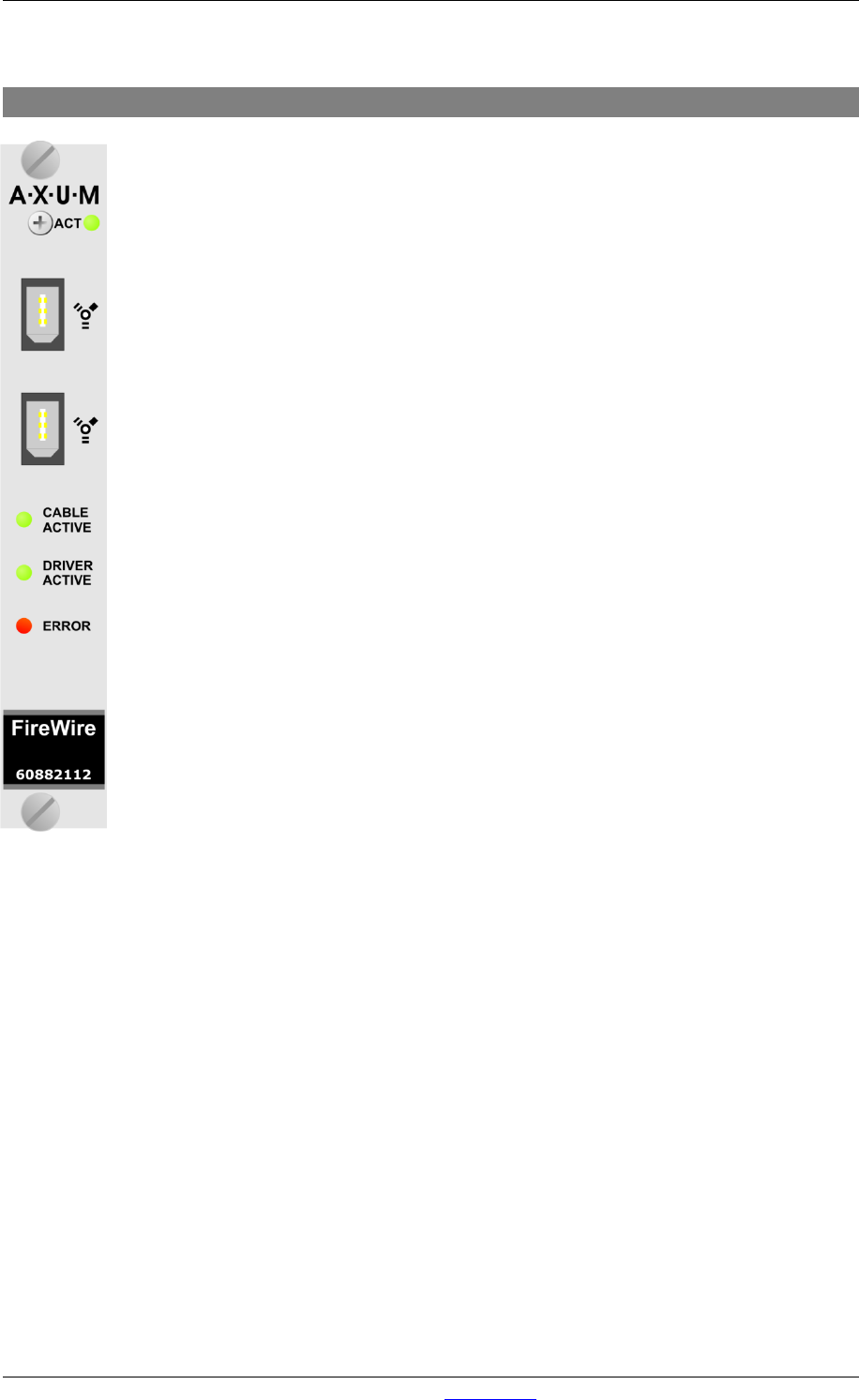

10.9 Firewire in/output card
This Firewire In/output card converts the Firewire digital signals into digital audio which
can be processed by the 19” inch rack.
The Firewire card has to run synchronous with the connected devices, allowed sample
rate frequencies are 32kHz, 44.1kHz or 48kHz.
WDM and ASIO Drivers are available.
Via WDM driver the device is seen as a single multi-channel WDM device (8 channels).
Normally this means your card acts like a 7.1 surround card, unless your software is
capable of using the 8 channels separate.
Via ASIO driver all 16 channels are available.
