A·X·U·M User Manual Version 2.5 - 2011-01-28
AXUM from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 55 -
• Xmt
The transmit column shows which datatype is required at the object-actuator to be able to
receive data from the engine.
• Label
This label will be used if default function label for remote software applications. It can be
changed here globally. In the surface/rack configuration you may give labels per configured
object-function.
• User levels
For each user level you can select the default state, if ‘y’ this function can be used for this user
level, if ‘n’ this functions can not be used for this user level. The function default setting can be
overruled in the node configuration.

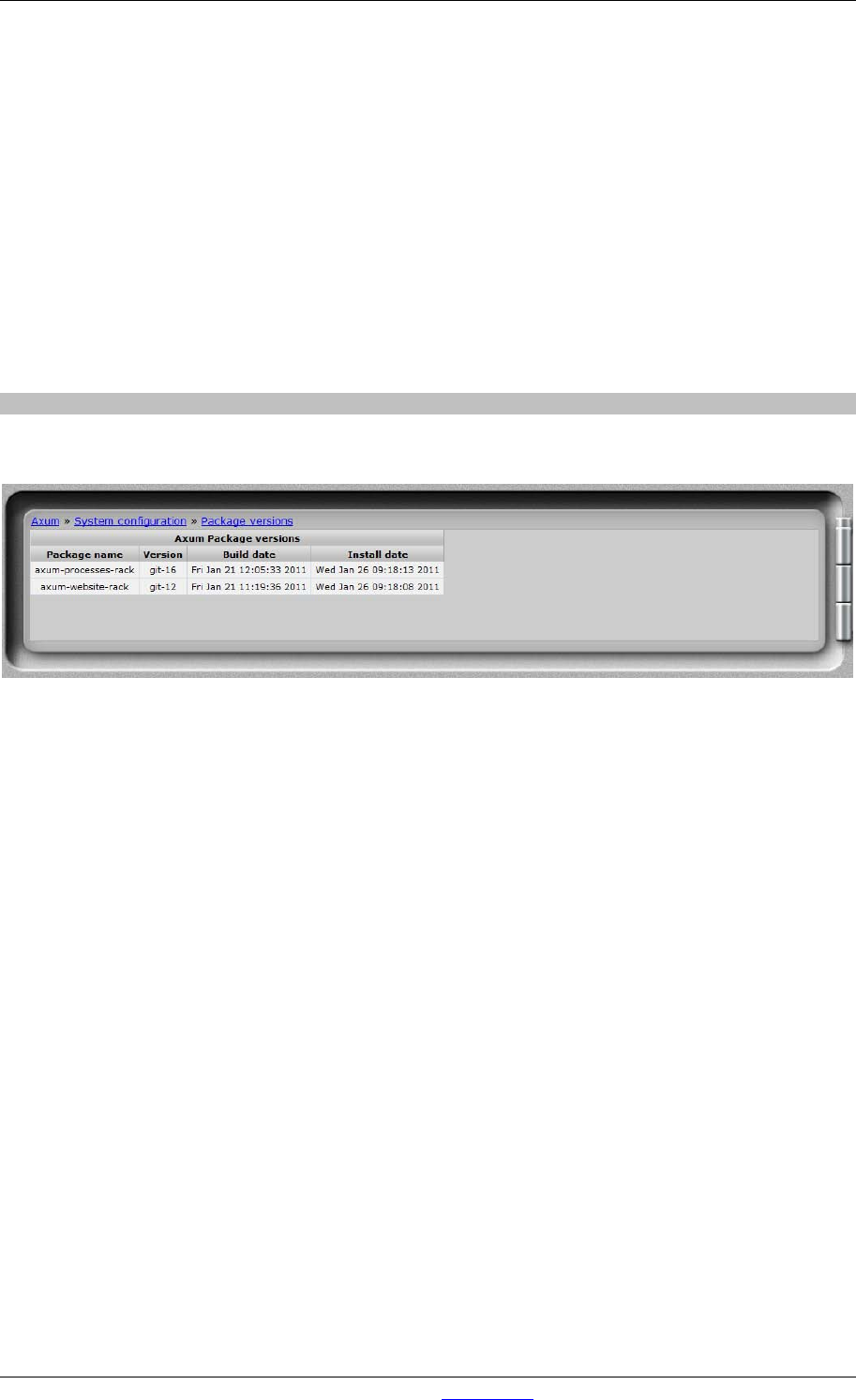

6.2.5 Package versions
This page shows the installed packages with their version number, build and install date.
Figure 36: Package versions
