A·X·U·M User Manual Version 2.5 - 2011-01-28
AXUM from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 45 -
6.1.16 Source pools
You can see an overview of the source pools on this page. A source pool may be assigned to a user
to give them a comfortable source list for selection from the control surface.

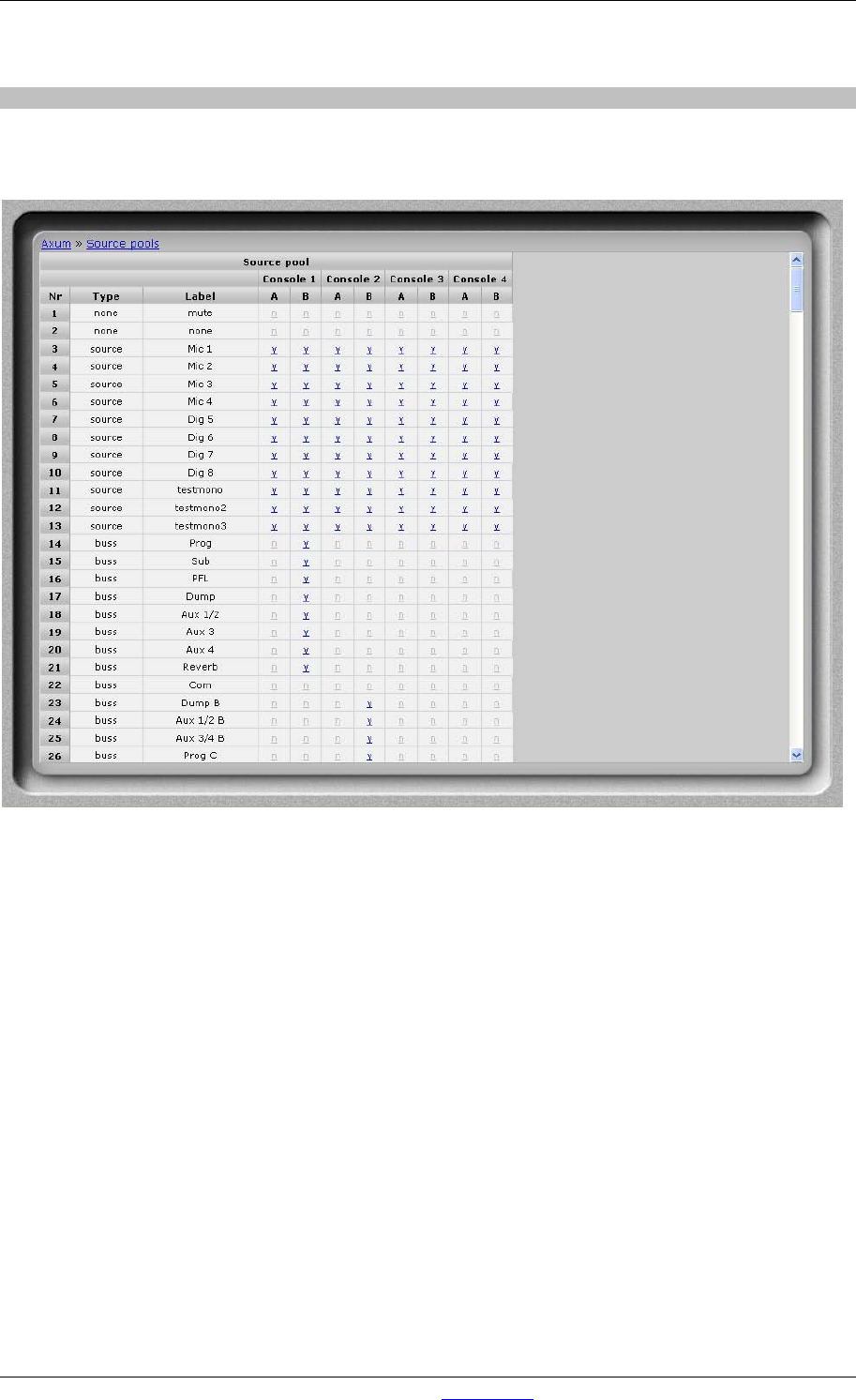

Figure 28: Source pool configuration
• Type
Type of the source.
• Label
Name of the source.
• Source pool
Per console there are 2 source pools A/B
If y is selected the source will be available in the selected source pool. If n is selected the
source won´t be available.
