6.1.11.1 Module configuration page
On this page you can setup the default module configuration, used at startup if programmed default is
selected in global configuration. If you have made your settings and you would like to copy them to all
modules in this console (for example if you want to use the same EQ center frequencies) you can
simply hit ‘To all console x modules’ after you made and checked the settings on the current module.

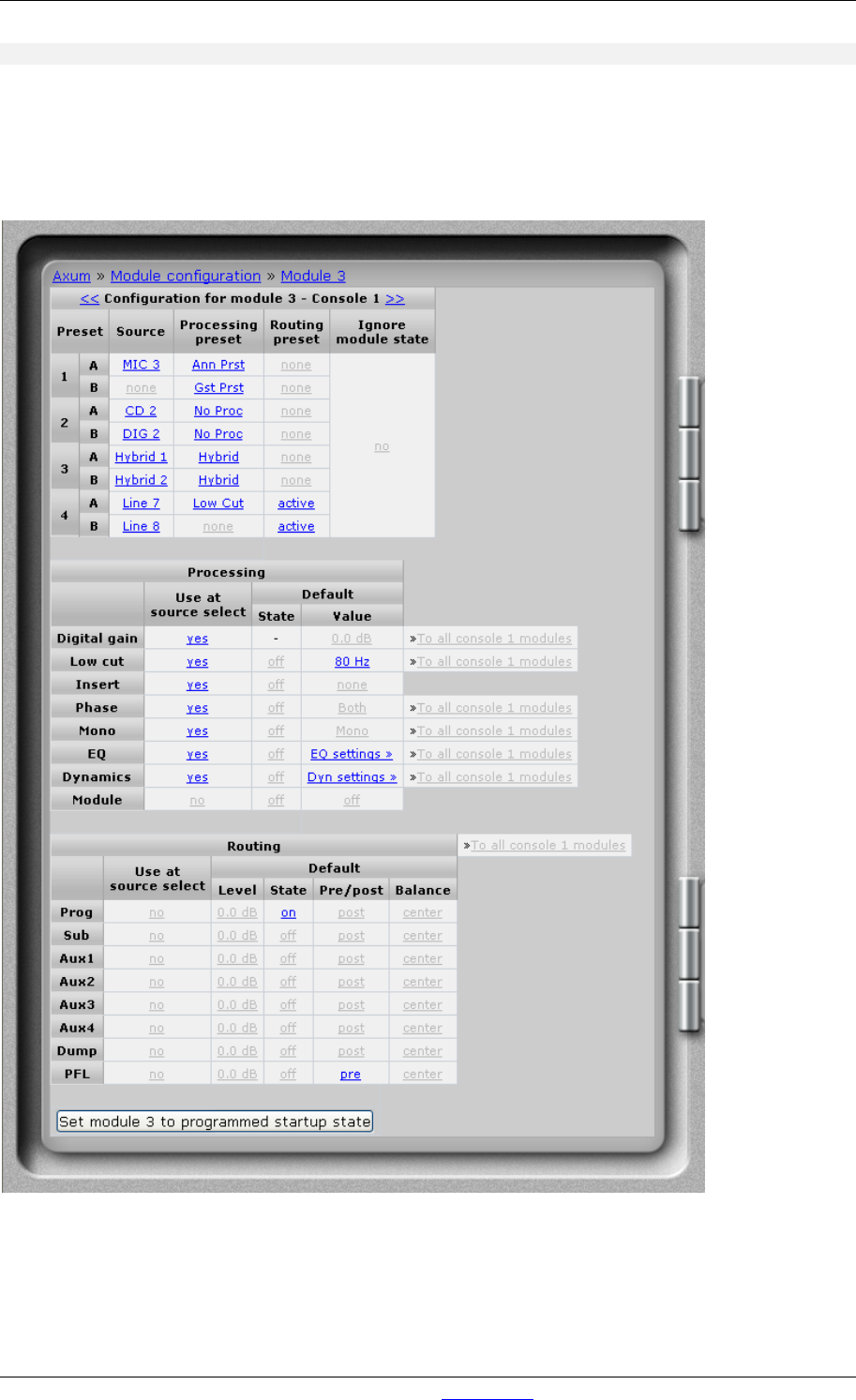

Figure 19: Module configuration page
