6.1.11 Module configuration
The module configuration makes it possible to give modules a default setting (after powering on) and
you can also configure module presets 1A/1B, 2A/2B, 3A/3B, 4A/4B.

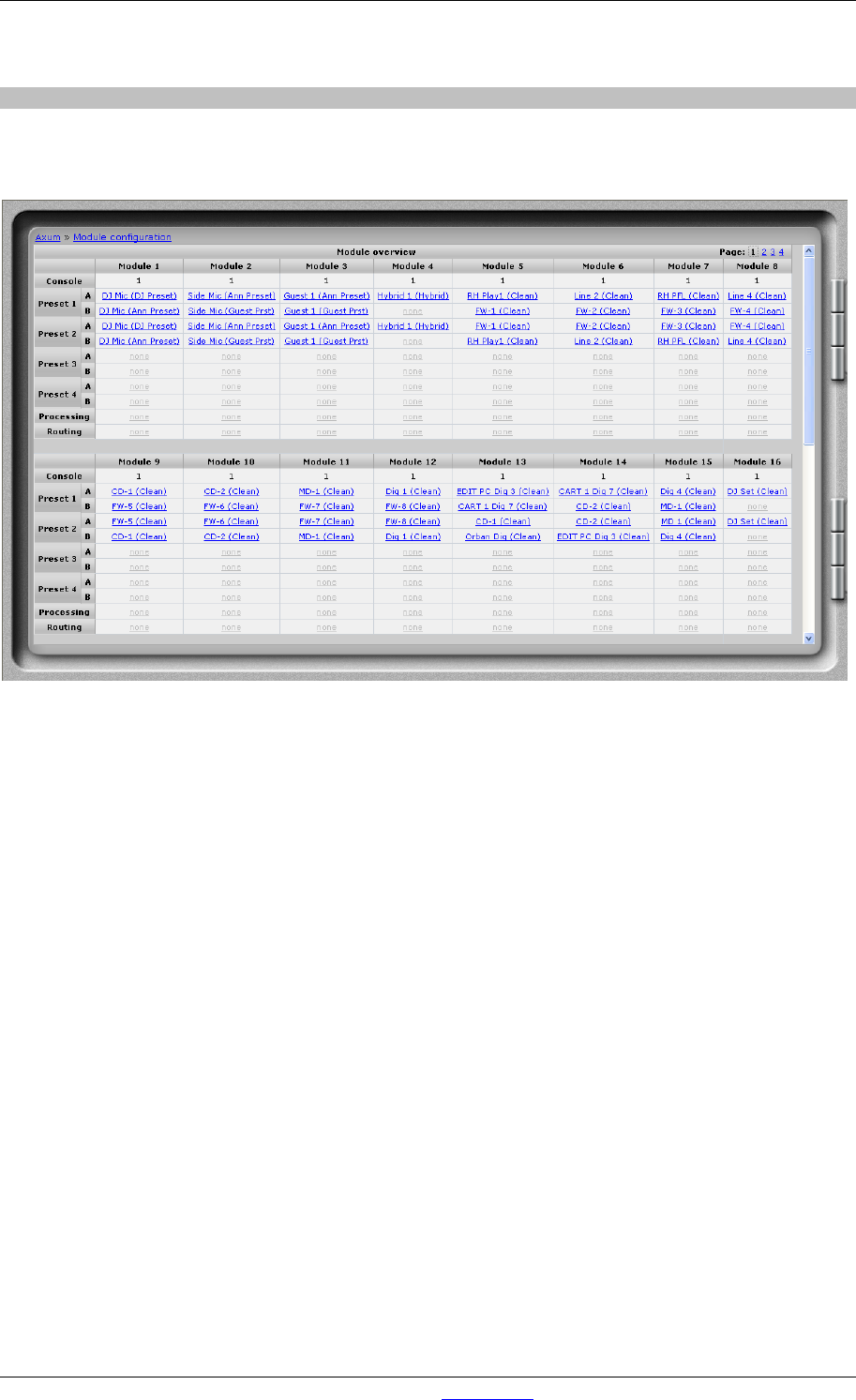

Figure 18: Input module configuration
• Console
Shows to which console the module is assigned.
• Preset 1A/1B, 2A/2B, 3A/3B, 4A/4B
Shows the source and processing preset selected for corresponding module preset. If the ‘#’
symbol appears there is an active routing preset.
(click on the link to go to the configuration page for the module)
• Processing
Here you can see if there is any processing done.
(click on the link to go to the configuration page for the module)
• Routing
(click on the link to go to the configuration page for the module)
