User's Manual

79D-Link DIR-645 User Manual
Section 3 - Software Configuration

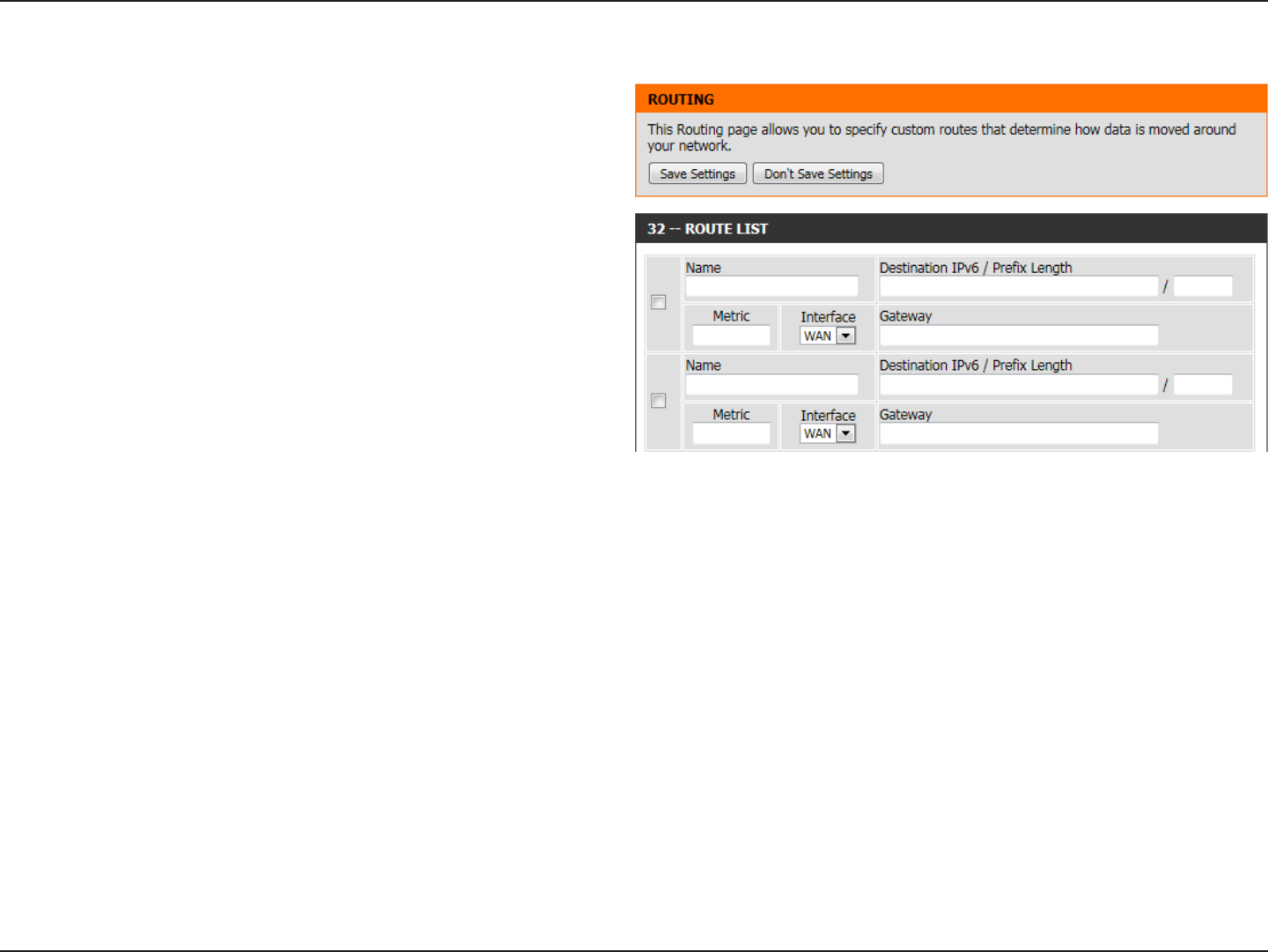

IPv6 Routing
On this page the user can specify custom routes that determine how data is moved
around your IPv6 network.
The following parameters will be available for configuration:
Checkbox:
To enable a route, check the box that is on the left side of
the route.
Name:
Enter the IPv6 routing rule name used here.
Metric:
Enter the metric value for this rule here.
Interface:
Use the drop-down menu to specify if the IP packet must use
the WAN or LAN interface to transit out of the Router.
Destination IPv6:
Enter the IPv6 address of the packets that will take this route.
Prefix Length:
Enter the IPv6 address prefix length of the packets that will
take this route.
Gateway:
Enter the next hop that will be taken if this route is used.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
