Section 3 - Software Configuration

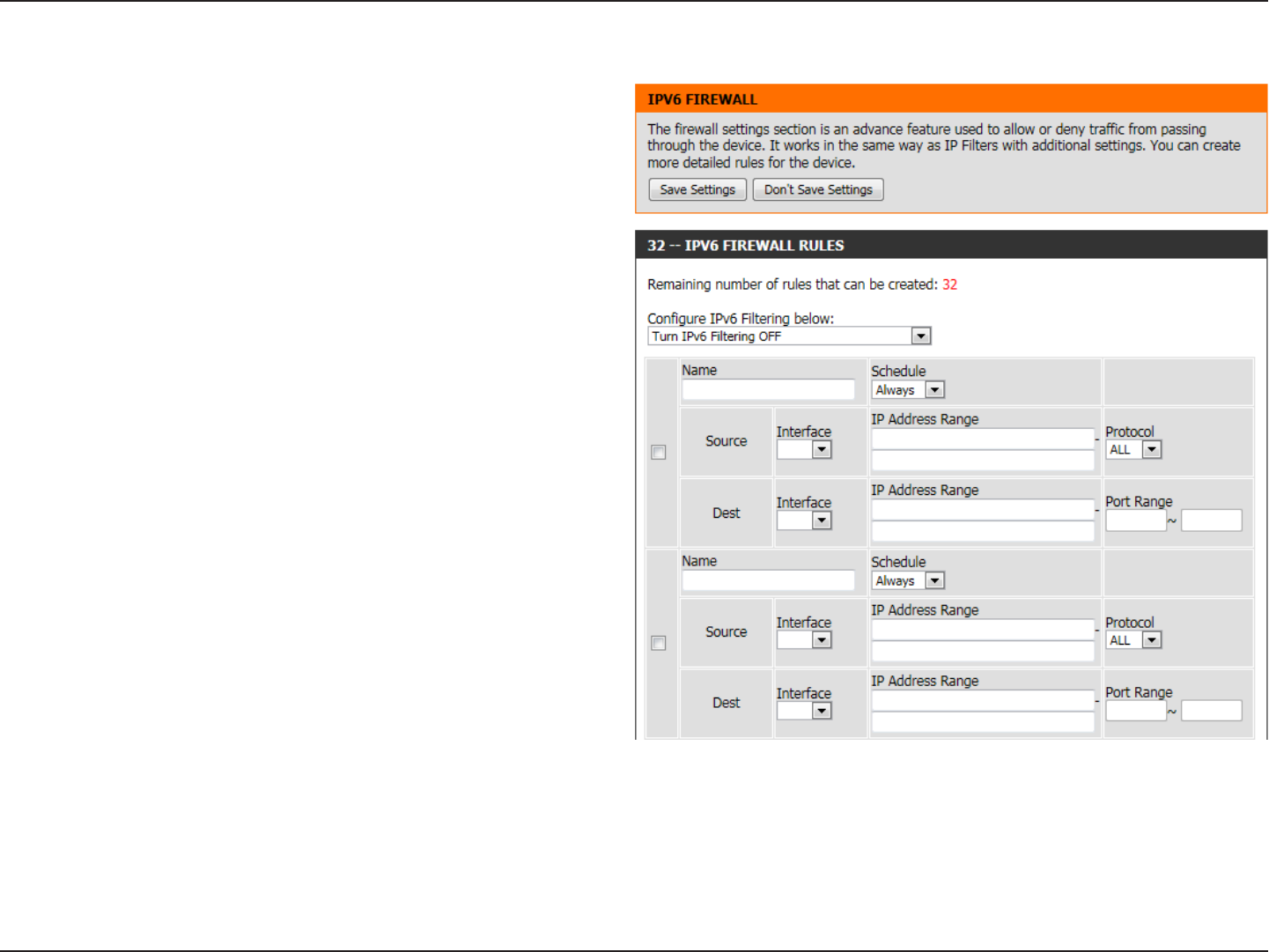

IPv6 Firewall
On this page the user can configure the IPv6 firewall settings. The firewall settings
section is an advance feature that is used to allow or deny traffic from passing through
the device. It works in the same way as IP Filters with additional settings. You can
create more detailed rules for the device.
In the IPv6 Firewall Rules section the user can create, enable and disable IPv6
firewall rules used by this device. The following parameters will be available for
configuration:
Configure IPv6
Filtering:
This option defines the behavior of all the IPv6 firewall rules
created. Option to choose from are ‘Turn IPv6 Filtering
OFF’, ‘Turn IPv6 Filtering ON and ALLOW rules
listed’, and ‘Turn IPv6 Filtering ON and DENY rules
listed’. Select the appropriate option used here.
Checkbox
Tick this option to used the firewall rules created.
Name:
Enter a custom firewall rule name here. This name is used
for identification.
Source Interface:
Select the appropriate source interface used here.
Destination
Interface:
Select the appropriate destination interface used here.
Schedule:
Select a time schedule that will be applied to this rules here.
IP Address
Range:
Enter the IPv6 address range used here.
Protocol:
Select the protocol used for this rule here. Options to choose
from are ALL, TCP, UDP, and ICMP.
Port Range:
Enter the port range used for this rule here.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
