User's Manual

77D-Link DIR-645 User Manual
Section 3 - Software Configuration

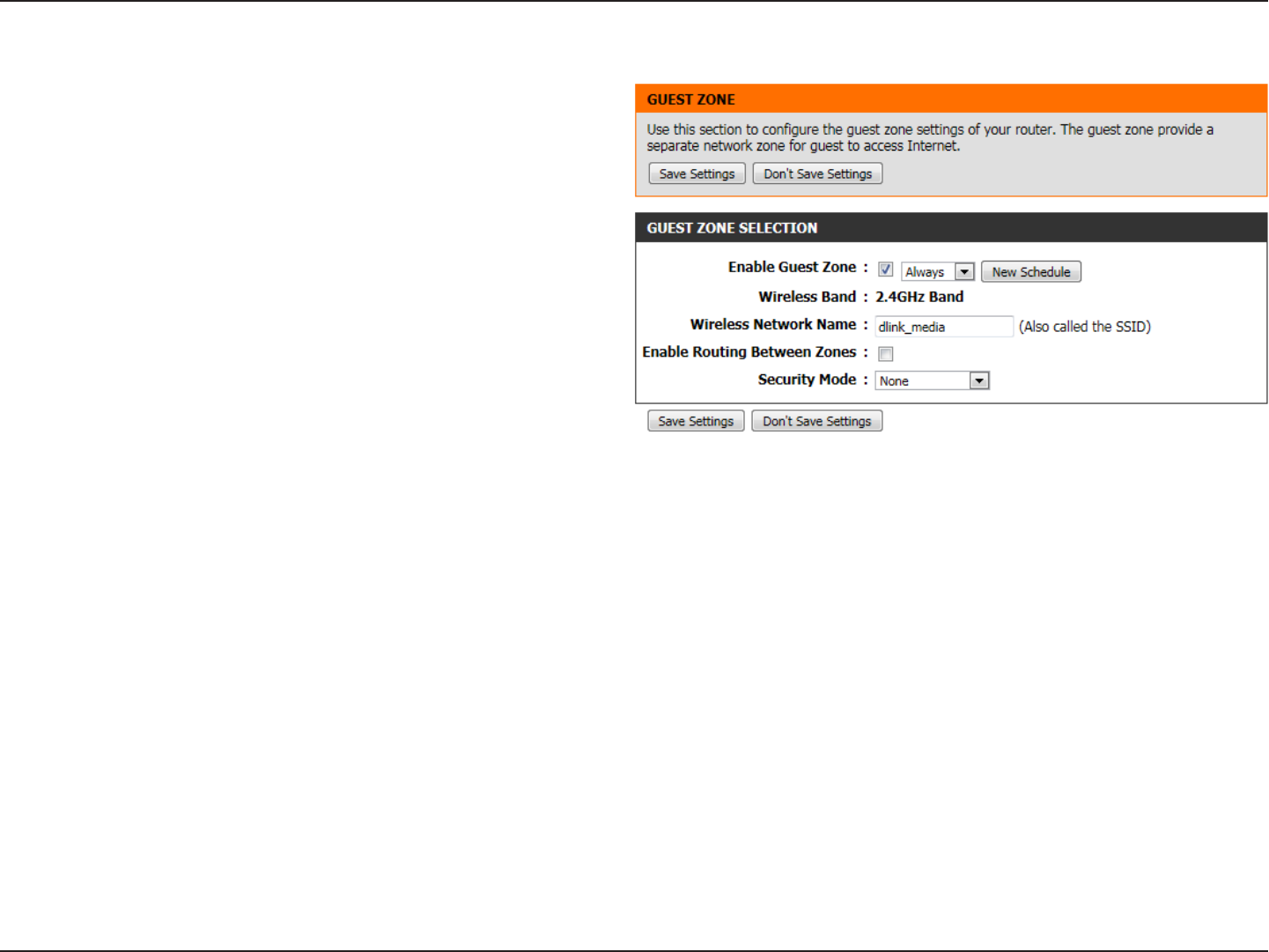

Guest Zone
On this page, the user will be able to configure the Guest Zone, settings. The guest
zone provide a separate network zone for guest to access Internet.
The following parameters will be available for configuration:
Enable Guest
Zone:
Tick this option to enable the Guest Zone feature for the
frequency band 2.4GHz. Use the drop-down menu to
schedule the time that the Firewall rule will be enabled. The
schedule may be set to Always, which will allow the particular
service to always be enabled. Click the New Schedule button
to create your own times in the Schedules page.
Wireless Band:
Displays the frequency band used.
Wireless Network
Name:
The Service Set Identifier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The SSID
is case-sensitive.
Enable Routing
Between Zones:
Tick this option to enable routing between guest zones.
Security Mode:
The security mode enables the user to configure wireless security for this wireless guest zone. For more information about wireless security, refer to
the Wireless Settings page.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
