Section 3 - Software Configuration

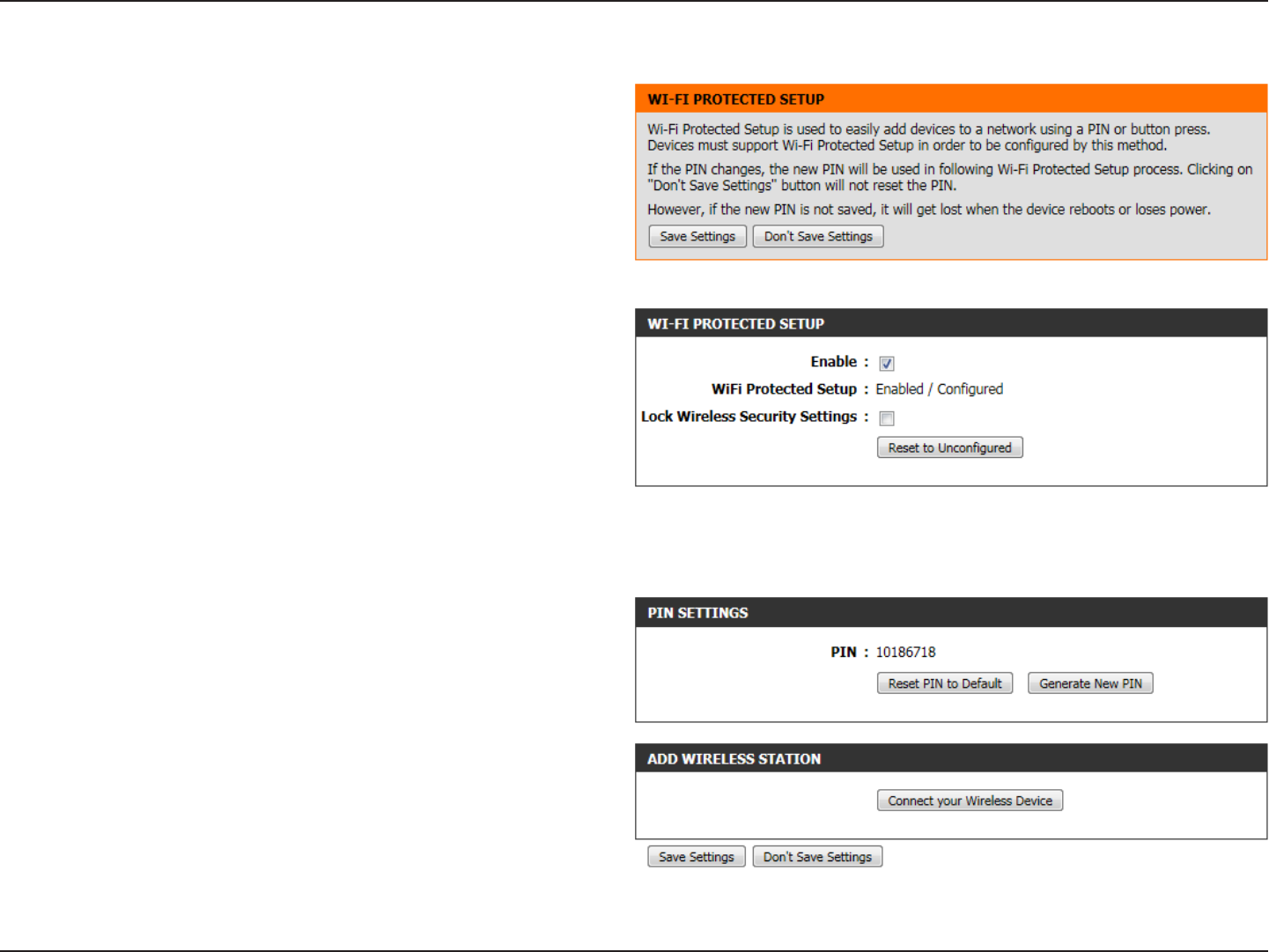

Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) System is a simplified method for securing your wireless
network during the “Initial setup” as well as the “Add New Device” processes. The Wi-
Fi Alliance (WFA) has certified it across different products as well as manufactures.
The process is just as easy, as depressing a button for the Push-Button Method or
correctly entering the 8-digit code for the Pin-Code Method. The time reduction in
setup and ease of use are quite beneficial, while the highest wireless Security setting
of WPA2 is automatically used.
The following parameters will be available for configuration:
Enable:
Tick this option to enable the Wi-Fi Protected Setup feature.
WiFi Protected
Setup:
This parameter displays the WPS setup status.
Lock Wireless
Security Settings:
Tick this option to lock the configured wireless security
settings.
In the PIN Settings section, the user not only will be able to view the PIN code, but will also be able to reset the PIN to default or to generate a new PIN code. A PIN is a unique
number that can be used to add the router to an existing network or to create a new network. The default PIN may be printed on the bottom of the router. For extra security, a
new PIN can be generated. You can restore the default PIN at any time. Only the Administrator (“admin” account) can change or reset the PIN.
In the Wi-Fi Protected Setup section, the user can enable the WPS feature of this router.
The following parameters will be available for configuration:
PIN:
Shows the current value of the router’s PIN.
Reset PIN to
Default:
Click this button to restore the default PIN of the router.
Generate New
PIN:
Click this button to create a random number that is a valid
PIN. This becomes the router’s PIN. You can then copy this
PIN to the user interface of the registrar.
Click the ‘Connect your Wireless Device’ button to start Wireless Connection
Setup Wizard. This wizard helps you add wireless devices to the wireless network.
