Section 3 - Software Configuration

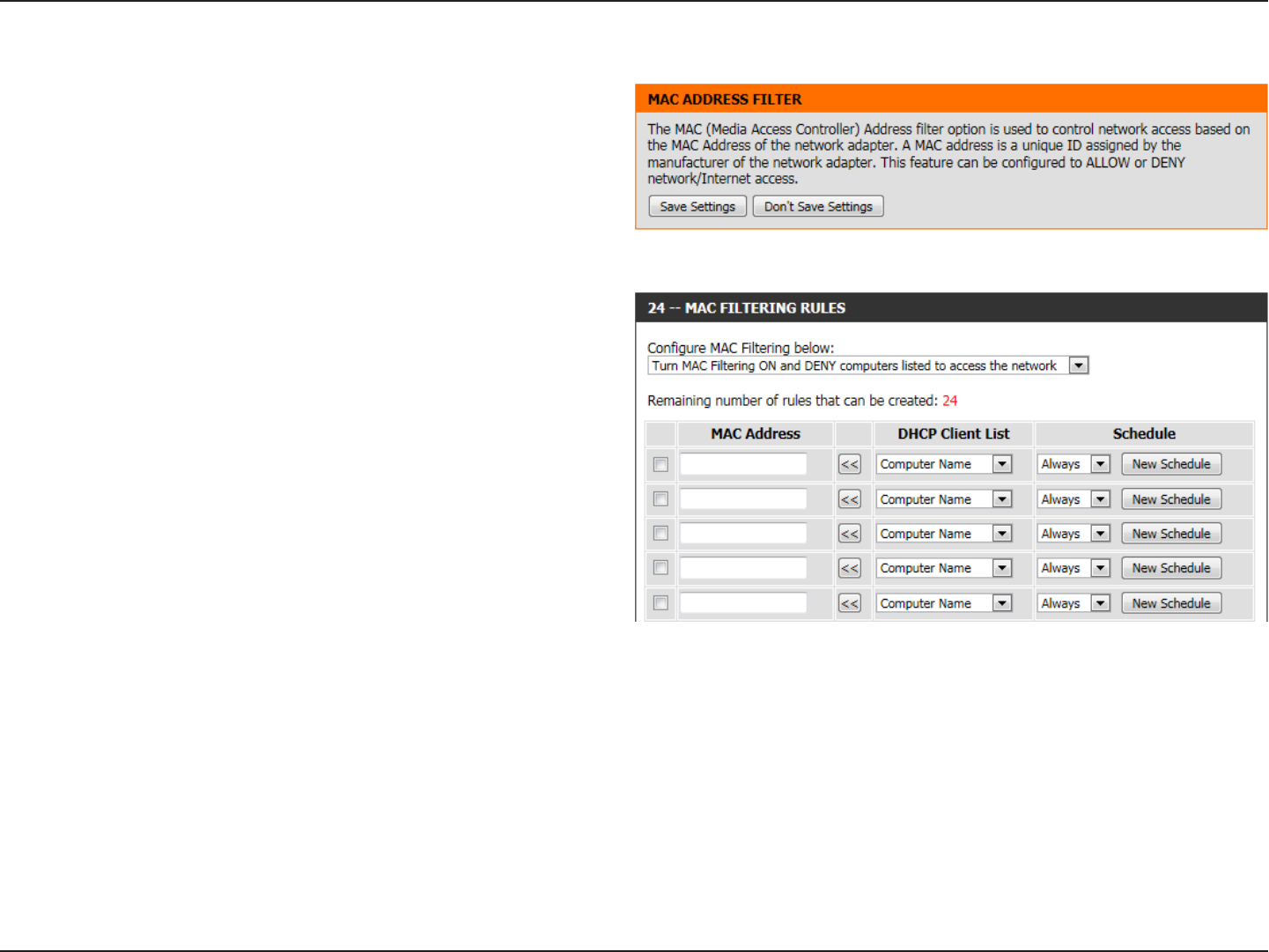

Network Filter
The MAC (Media Access Controller) Address filter option is used to control network
access based on the MAC Address of the network adapter. A MAC address is a unique
ID assigned by the manufacturer of the network adapter. This feature can be configured
to ALLOW or DENY network/Internet access.
In the MAC Filtering Rules section, the user can create and edit Network filter rules. This maximum amount of rules that can be created are 24 rules.
The following parameters will be available for configuration:
Configure MAC
Filtering below:
Select Turn MAC Filtering OFF, Turn MAC Filtering ON
and ALLOW computers listed to access the network,
or Turn MAC Filtering ON and DENY computers
listed to access the network from the drop-down menu.
Checkbox:
Check the box on the left side to enable the Network Filter.
MAC Address:
Enter the MAC address you would like to use in this filtering
rule.
DHCP Client List:
Select a DHCP client from the Computer Name drop-down
menu and click << to copy that MAC Address.
Schedule:
The schedule of time when the Network Filter will be enabled.
The schedule may be set to Always, which will allow the
particular service to always be enabled. Click the New
Schedule button to create your own times in the Schedules
page.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
