The following parameters will be available for configuration:
Checkbox:
Tick this option to enable the rule specified.
Name:
Enter a custom name for the rule being created here. This
name is used for identification.
Queue ID:
Select the appropriate priority requirement from the drop-
down menu that will be applied to this rule. Option to choose
from are Highest, Higher, Normal, and Best Effort.
Protocol:
Select the protocol used for the application for in the drop-
down menu and it will automatically place it in the Protocol
field.
Local IP Range:
Enter the local IP range used here. This is the IP range of
you Local Area Network. The Router’s IP cannot be included
in this range.
Remote IP
Range:
Enter the remote IP range used here. This is the IP range of
the public network from the Internet Port side. To apply this
rule to any IP addresses from the public side, enter the range
0.0.0.1 to 255.255.255.254.
Application Port:
Enter the application port number used here.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.

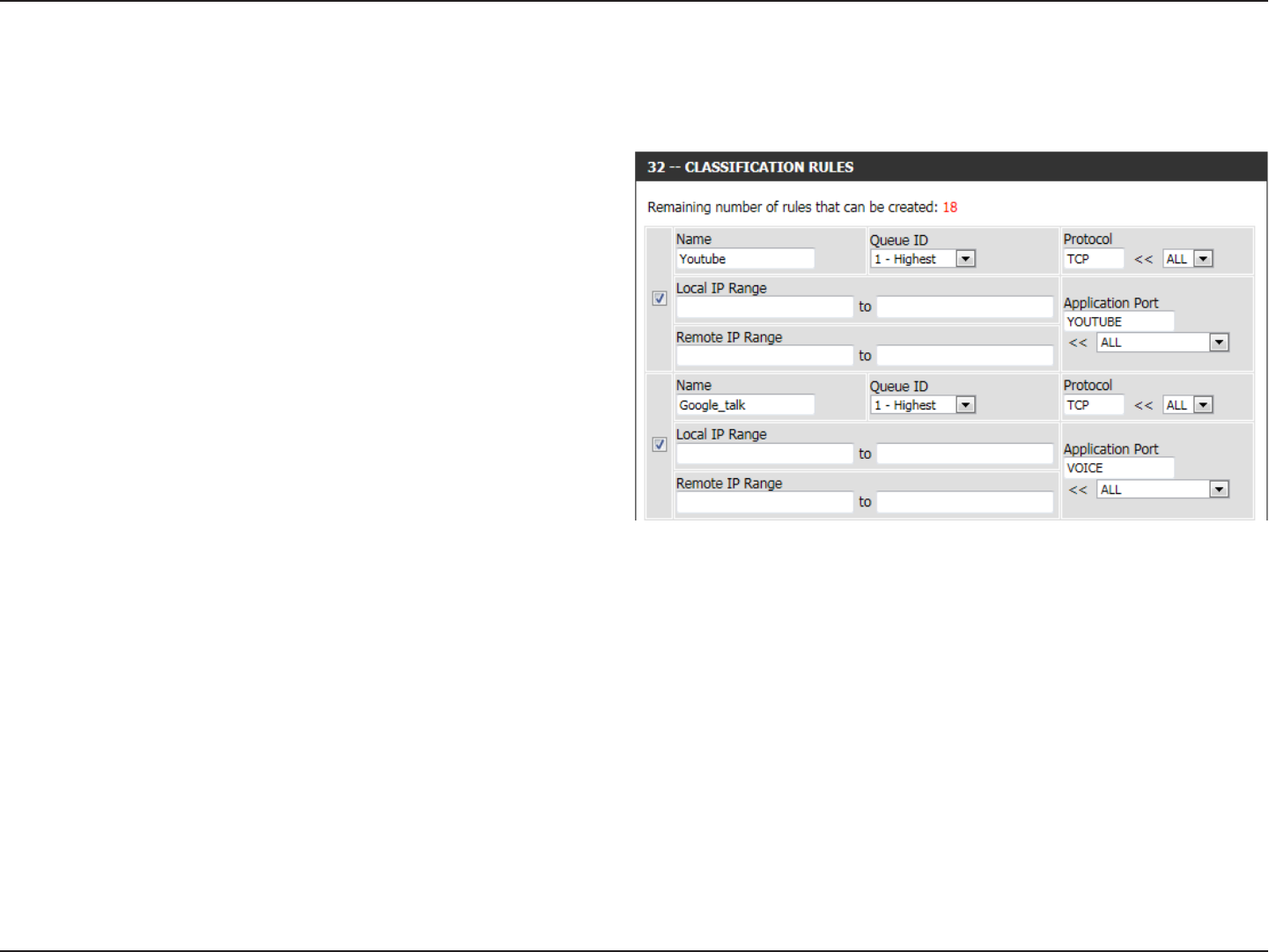

After specifying the QoS framework used, in the QoS setup section, the user can now create individual rules for scenarios that require the use of traffic control and data priority
manipulation.
