QoS Engine
The QoS Engine option helps improve your network gaming performance by prioritizing
applications. By default the QoS Engine settings are disabled and application priority
is not classified automatically. The QoS section contains a queuing mechanism,
traffic shaping and classification. It supports two kinds of queuing mechanisms. Strict
Priority Queue (SPQ) and Weighted Fair Queue (WFQ). SPQ will process traffic based
on traffic priority. Queue1 has the highest priority and Queue4 has the lowest
priority. WFQ will process traffic based on the queue weight. Users can configure each queue’s weight. The sum of all the queue’s weight must be 100. When surfing the Internet,
the system will do traffic shaping based on the uplink and downlink speed. The classification rules can be used to classify traffic to different queues, then SPQ or WFQ will do
QoS based on the queue’s priority or weight.

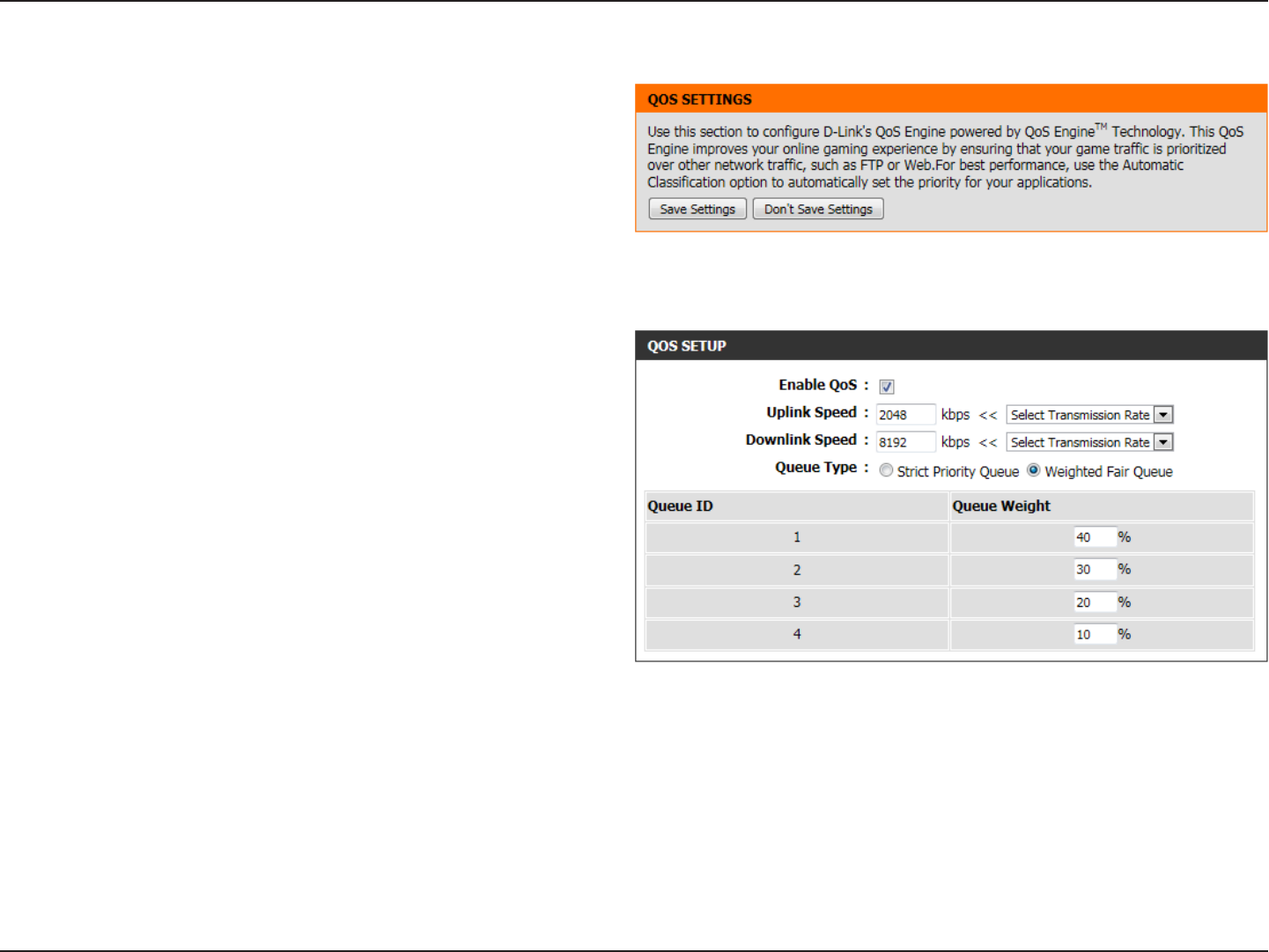

The following parameters will be available for configuration:
Enable QoS:
This option is disabled by default. Enable this option for
better performance and experience with online games and
other interactive applications, such as VoIP.
Uplink Speed:
The speed at which data can be transferred from the router
to your ISP. This is determined by your ISP. ISP’s often
define speed as a download/upload pair. For example,
1.5Mbits/284Kbits. Using this example, you would enter
284. Alternatively you can test your uplink speed with a
service such as www.dslreports.com.
Downlink Speed:
The speed at which data can be transferred from the ISP
to the router. This is determined by your ISP. ISP’s often
define speed as a download/upload pair. For example,
1.5Mbits/284Kbits.
Using this example, you would enter 1500. Alternatively you can test your downlink speed with a service such as www.dslreports.com.
Queue Type:
Here the user can specify the queue type used. When choosing the option Strict Priority Queue, the router will apply QoS based on the internal
specification for the queue ID’s listed. When choosing the option Weight Fair Queue, the router will apply QoS based on the user defined percentage
in the Queue Weight column.
Queue ID:
In this column the Queue ID used will be displayed.
Queue Priority:
In this column the Queue Priority used will be displayed.
Queue Weight:
After choosing to use the Weight Fair Queue option, under Queue Type, the user will be able to manual enter the Queue Weight for each individual
Queue ID.
