Port Forwarding

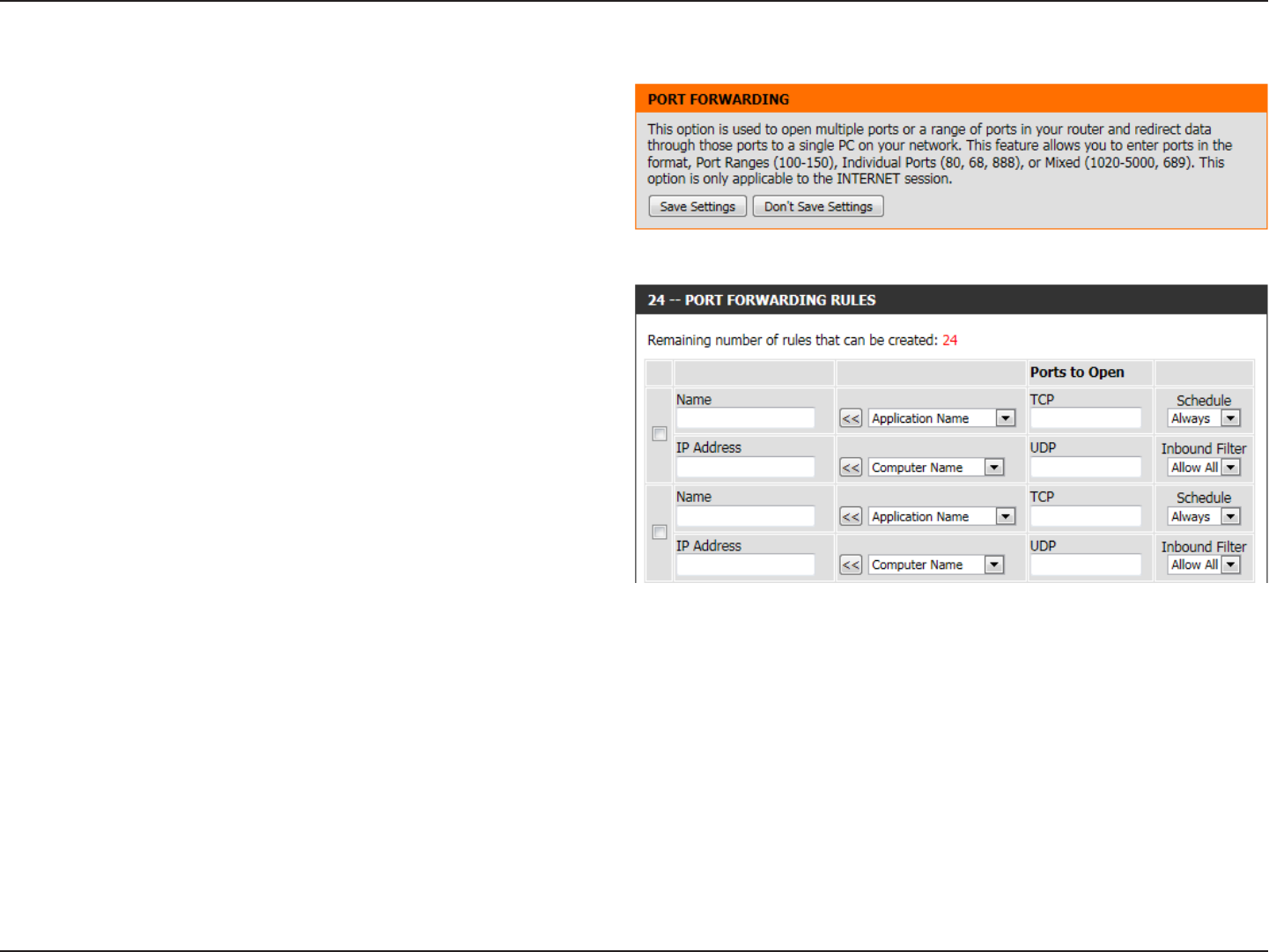

The Port Forwarding option gives Internet users access to services on your LAN. This
feature is useful for hosting online services such as FTP, Web or game servers. For
each entry, you define a public port on your router for redirection to an internal LAN IP
Address and LAN port. This option is used to open multiple ports or a range of ports
in your router and redirect data through those ports to a single PC on your network.
This feature allows you to enter ports in the format, Port Ranges (100-150),
Individual Ports (80, 68, 888), or Mixed (1020-5000, 689). This option is only applicable to the INTERNET session.
The following parameters will be available for configuration:
Checkbox:
Tick the checkbox on the left side to enable the Port
Forwarding rule.
Name:
Enter a name for the rule or select an application from the
drop-down menu. Select an application and click << to
populate the fields.
IP Address:
Enter the IP address of the computer on your local network
that you want to allow the incoming service to. If your
computer is receiving an IP address automatically from the
router (DHCP), you computer will be listed in the Computer
Name drop-down menu. Select your computer and click <<.
Ports to Open:
Enter the external port number in the appropriate space provided. If the port number is TCP then enter the number in the TCP space, and if the port
number is UDP than enter it in the UDP space.
Schedule:
Use the drop-down menu to schedule the time that the Port Forwarding rule will be enabled. The schedule may be set to Always, which will allow the
particular service to always be enabled. You can create your own times in the Schedules page.
Inbound Filter:
Select the inbound filter rule here. Options to choose from are Allow All, Deny All, and any other custom rule created.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
