Section 3 - Software Configuration

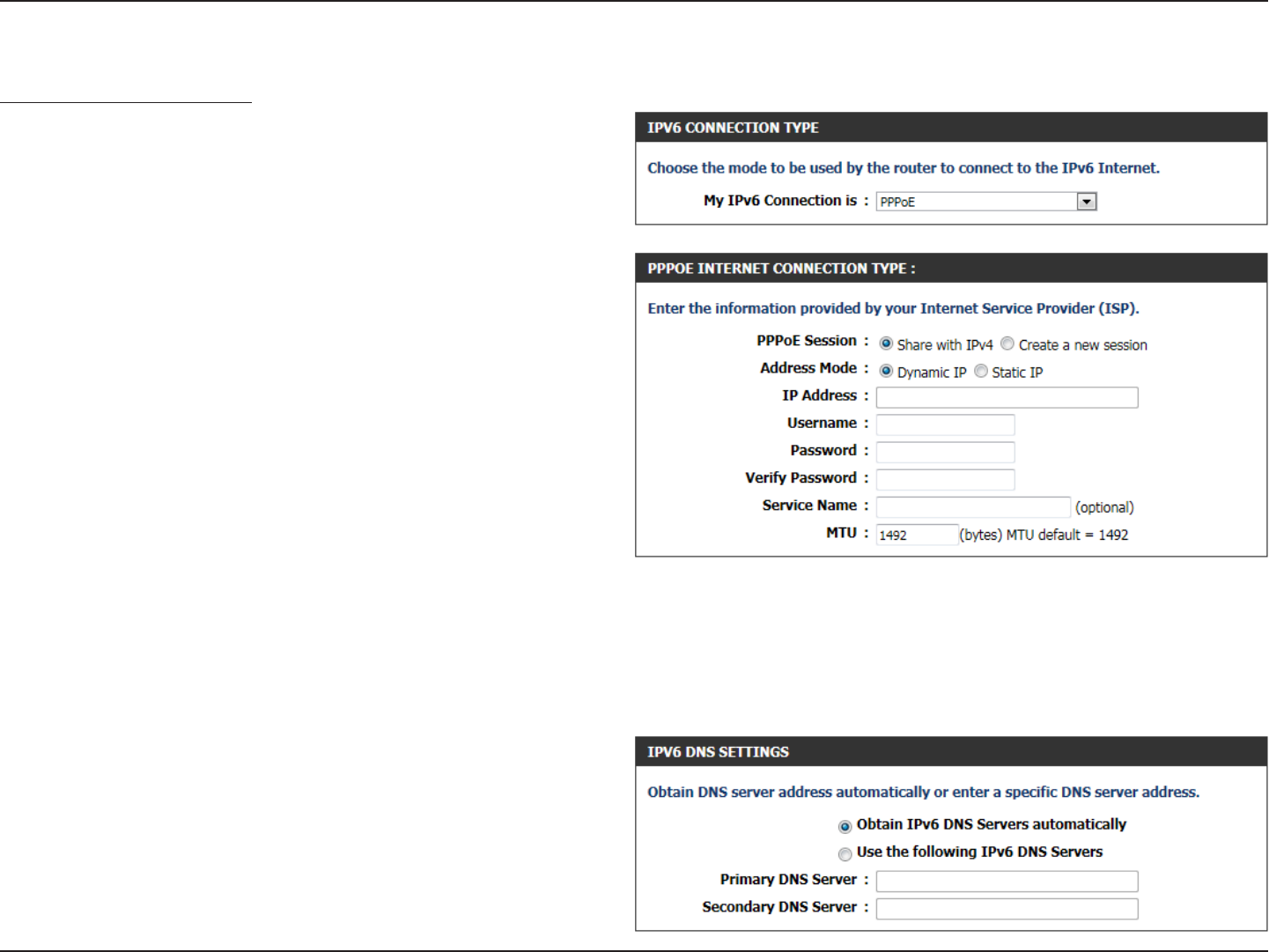

IPv6 Connection Type: PPPoE
Select this option if your ISP requires you to use a PPPoE (Point to Point Protocol
over Ethernet) connection to IPv6 Internet. DSL providers typically use this option.
This method of connection requires you to enter a Username and Password (provided
by your Internet Service Provider) to gain access to the IPv6 Internet. The supported
authentication protocols are PAP and CHAP.
The following parameters will be available for configuration:
PPPoE Session:
Select the PPPoE Session value used here. This option will
state that this connection shares it’s information with the
already configured IPv6 PPPoE connection, or the user can
create a new PPPoE connection here.
Address Mode:
Select the appropriate address mode used here. Select
Dynamic IP if the ISP’s servers assign the router’s WAN
IPv6 address upon establishing a connection. If your ISP
has assigned a fixed IPv6 address, select Static IP. The ISP
provides the value for the IPv6 Address.
IP Address:
Enter the ISP PPPoE IP address in here.
Username:
Enter the PPPoE username used here. This information is obtainable from the ISP.
Password:
Enter the PPPoE password used here. This information is obtainable from the ISP.
Verify Password:
Re-enter the PPPoE password used here.
Service Name:
Enter the service name for this connection here. This option is optional.
MTU:
Enter the MTU value used here. The default value is 1492.
The following parameters will be available for configuration:
Obtain IPv6:
Select this option to obtain the DNS Server addresses
automatically.
Use IPv6:
Select this option to manually enter the DNS Server
addresses used.
Primary DNS:
Enter the primary DNS Server address used here.
Secondary DNS:
Enter the secondary DNS Server address used here.
