User's Manual

41D-Link DIR-645 User Manual
Section 3 - Software Configuration

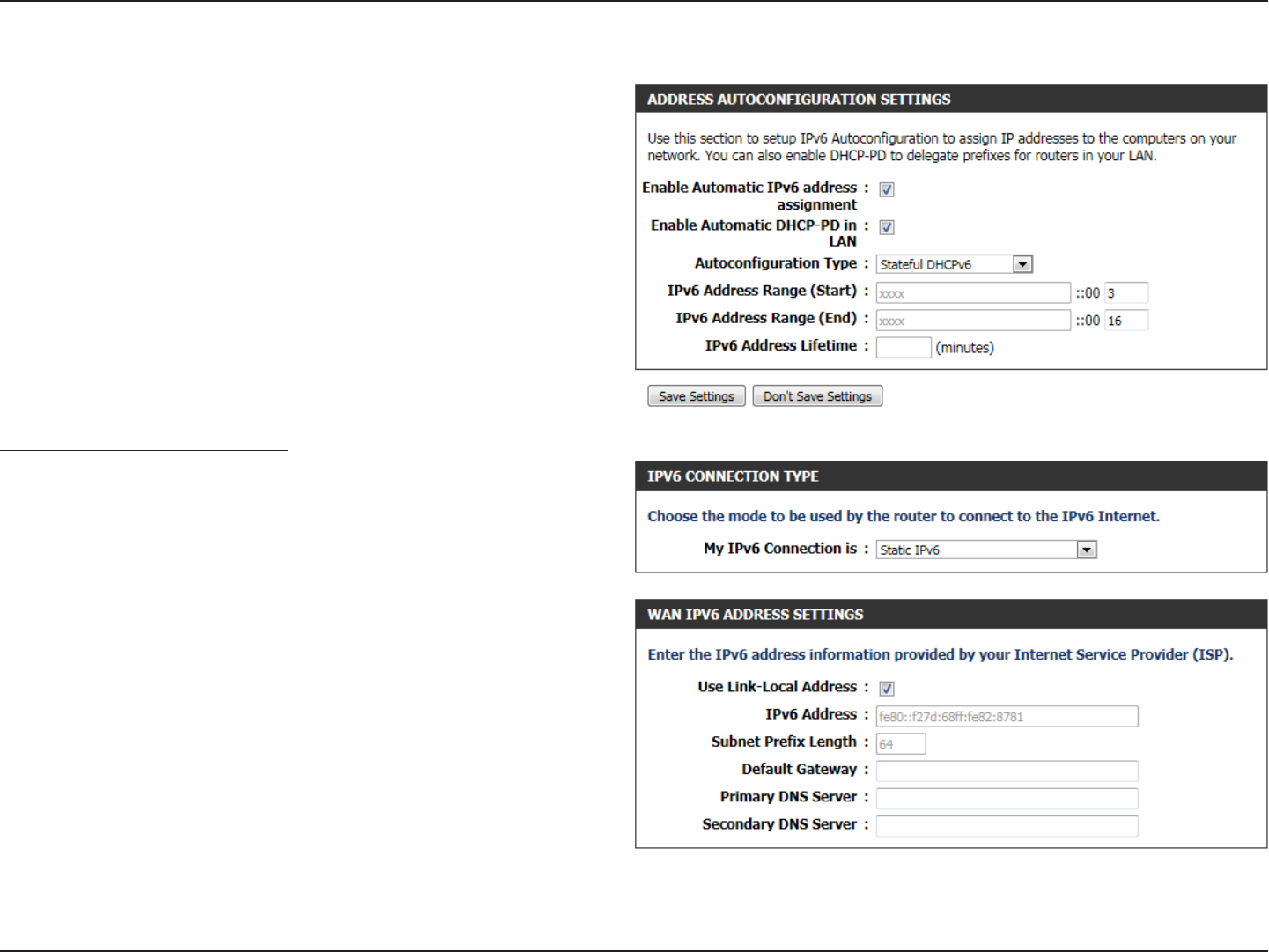

IPv6 Address
Range (Start):
This option is only available when the auto-configuration
type is set to Stateful. Enter the start IPv6 Address for the
DHCPv6 range for your local computers.
IPv6 Address
Range (End):
This option is only available when the auto-configuration
type is set to Stateful. Enter the end IPv6 Address for the
DHCPv6 range for your local computers.
IPv6 Address
Lifetime:
This option is only available when the auto-configuration
type is set to Stateful. Enter the IPv6 Address Lifetime (in
minutes).
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
IPv6 Connection Type: Static IPv6
In the following section we’ll discuss the parameters that can be configured when
setting up an Static IPv6 connection. This mode is used when your ISP provides you
with a set IPv6 addresses that does not change. The IPv6 information is manually
entered in your IPv6 configuration settings. You must enter the IPv6 address, Subnet
Prefix Length, Default Gateway, Primary DNS Server, and Secondary DNS Server.
Your ISP provides you with all this information.
The following parameters will be available for configuration:
Use Link-Local
Address:
The Link-local address is used by nodes and routers when
communicating with neighboring nodes on the same link.
This mode enables IPv6-capable devices to communicate
with each other on the LAN side.
IPv6 Address:
Enter the WAN IPv6 address for the router here.
Subnet Prefix
Length:
Default Gateway:
Enter the WAN default gateway IPv6 address used here.
