Section 3 – Configuration

D-Link DSL-320B User Manual

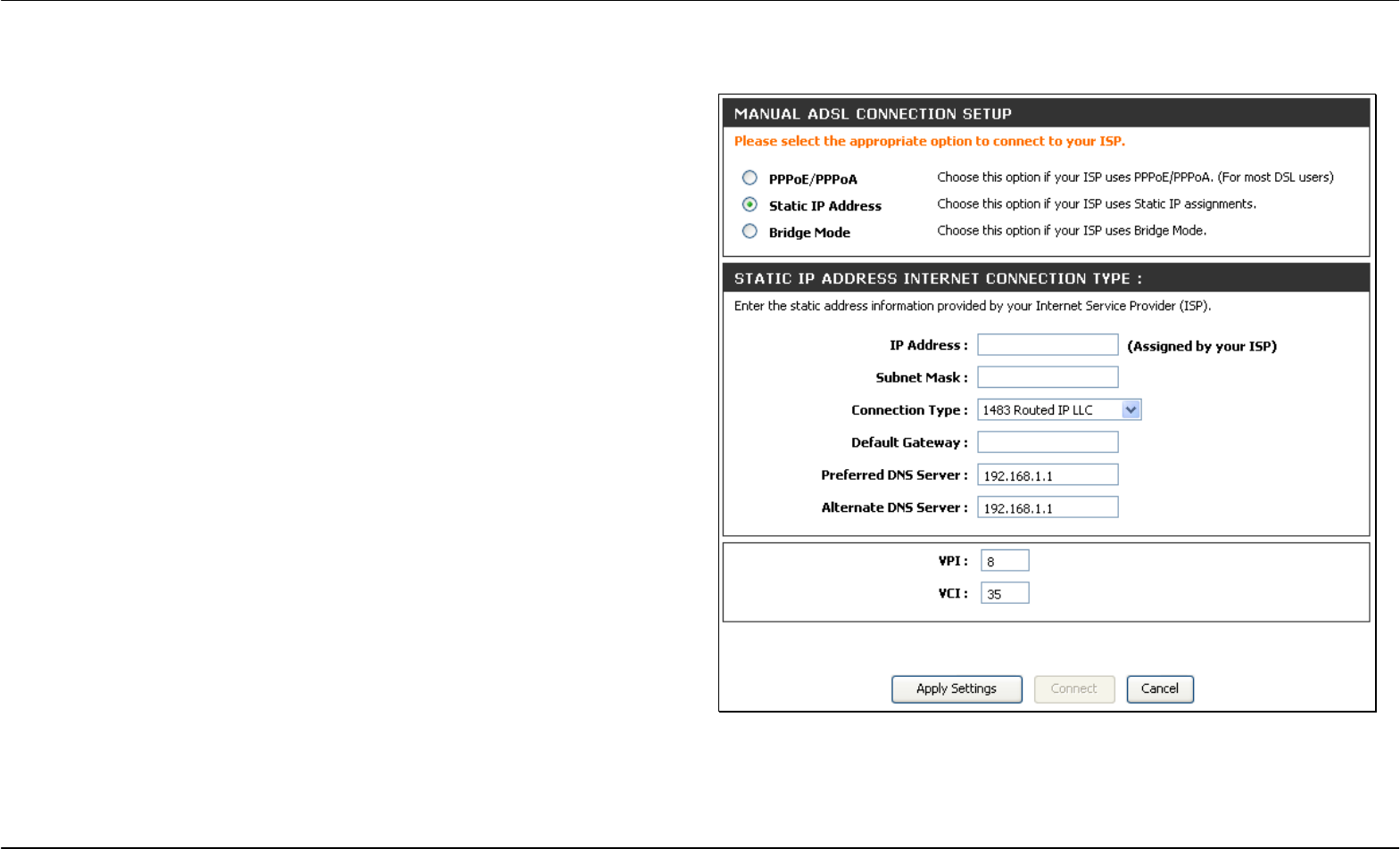

Static IP Address

When the Modem is configured to use Static IP Address assignment for

the WAN connection, you must manually assign a global IP Address,

Subnet Mask, and Default Gateway IP address used for the WAN

connection.

To configure a Static IP Address WAN connection, follow these steps:

1. Change the IP Address, Subnet Mask, and Default Gateway as

instructed by your ISP. These are the global IP settings for the

WAN interface. This is the “visible” IP address of your account.

Your ISP should have provided these IP settings to you. If your ISP

also asks you to change DNS server IP addresses, enter the

Preferred DNS Server and Alternate DNS Server information

manually.

2. Choose the Connection Type from the drop-down menu. This

defines both the connection protocol and encapsulation method

used for your ADSL service. The available options are 1483

Routed IP LLC and 1483 Routed IP VC-Mux. If you have not been

provided specific information for this setting, leave the default

setting.

3. If you are instructed to change the VPI or VCI values, type in the

values assigned for your account.

4. When you are satisfied that all the WAN settings are configured

correctly, click the Apply Settings button. This will save the

settings and reboot the Modem to let your changes take effect.

5. Upon restarting, the Modem should automatically establish the

WAN connection.
