Product User’s Manual – UC00C

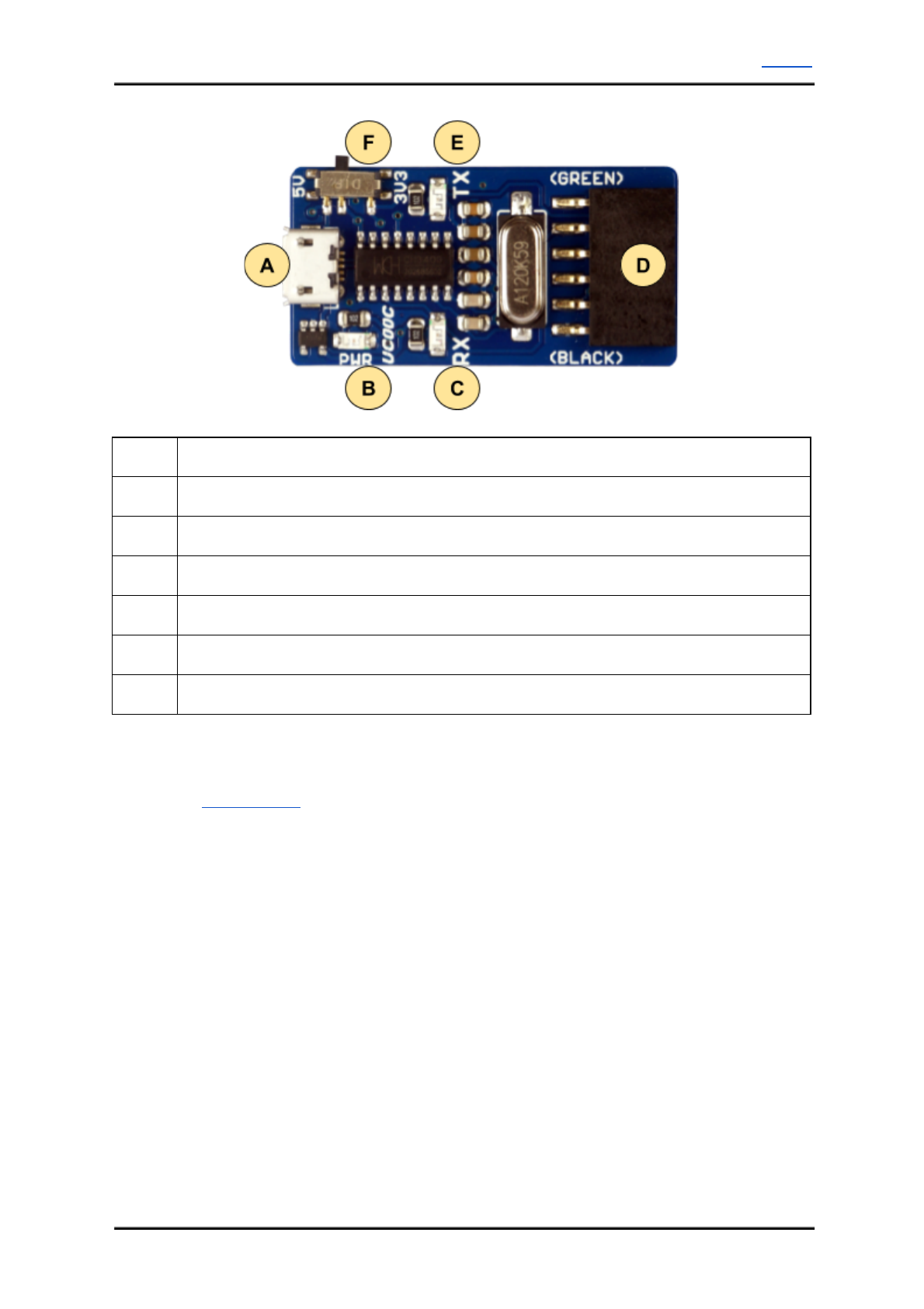

4.0 BOARD OR PRODUCT LAYOUT

Label

Function

A

MicroB USB socket

B

Power LED

C

RX LED

D

Header socket, for Arduino board

E

TX LED

F

VCC selectable Switch

MicroB USB socket

MicroB USB port socket at “A” is for USB connection to PC desktop or laptop. Please

connect the MicroB USB cable to this socket.

Power LED

Green LED at “B” is used to indicate the main power supply of UC00A. It should ON once

USB connection from UC00A to computer or laptop is ready.

RX LED

LED at “C” is RX LED. This LED is to indicates the receive activity. It will only work if

UC00A is connected to PC or laptop through USB mini cable..

Header socket, for Arduino board

Header socket at “D” is reserved for loading program to Arduino Mini Pro, BBFuino, Fio and

others.

TX LED

LED at “E” is TX LED. This LED is to indicates the transmit activity. It will only work if

UC00A is connected to PC or laptop through USB mini cable.
