Datasheet-MD10-POT



2. SPECIFICATIONS
No
Parameters
Min
Max
Unit
1
PowerInputVoltage
7
30
V
2
MaximumMotorCurrent-Continuous
-
10
A
3
MaximumMotorCurrent-Peak(Lessthan10seconds)
-
30
A
4
LogicInputVoltage-LowLevel(PWM,DIR)
0
0.5
V
5
LogicInputVoltage-HighLevel(PWM,DIR)
3
30
V
6
InternalPWMGeneratorFrequency
(Output frequency when potentiometer is used)
9
11
KHz
7
ExternalPWMInputFrequency
(Output Frequency = Input Frequency)
DC
20
KHz
Table 3: MD10-POT Absolute Maximum Ratings





3. DIMENSION

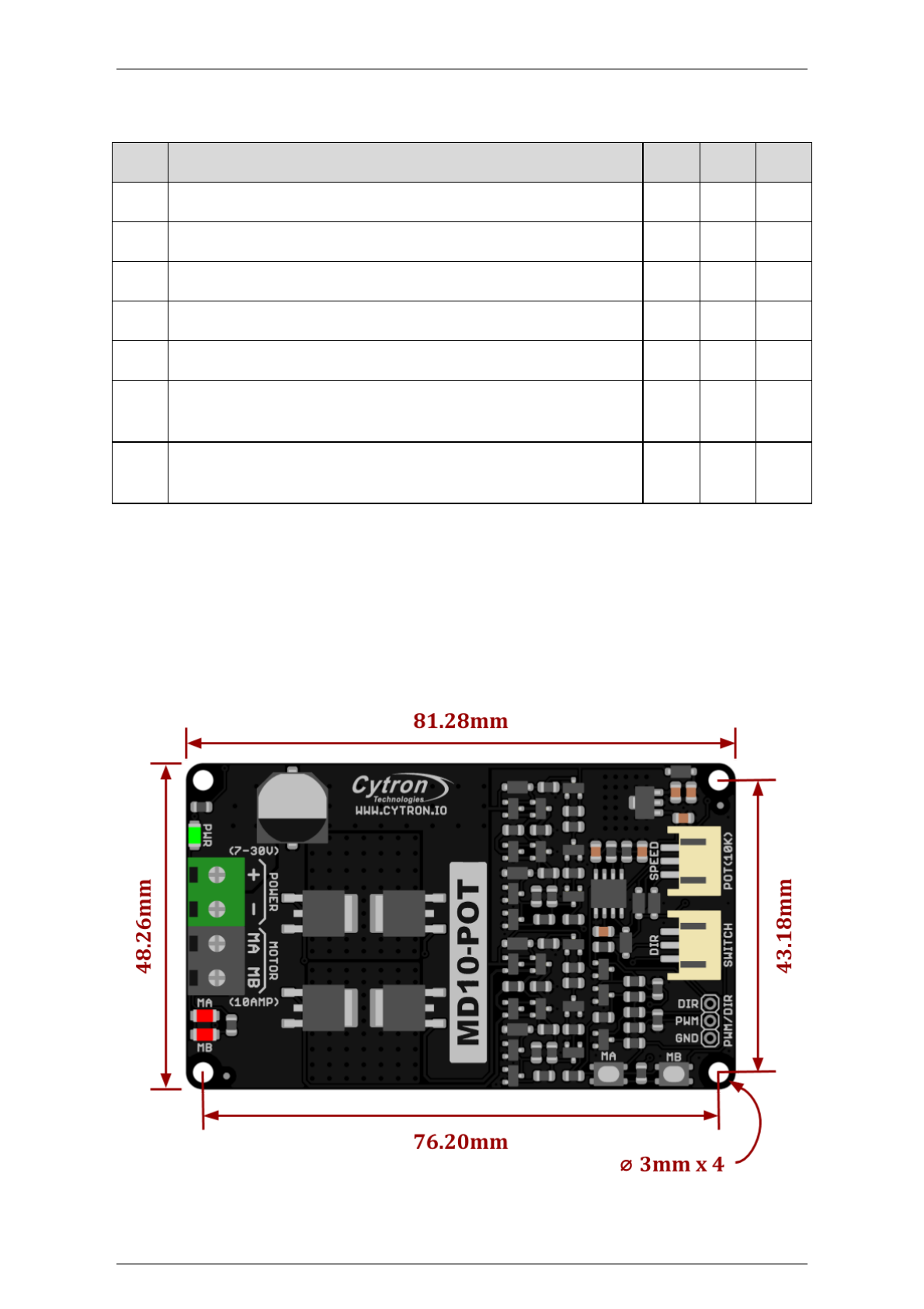

Figure 2: MD10-POT Dimension

