Datasheet - MAKER-OBJECT





4. ADJUSTING SENSING RANGE

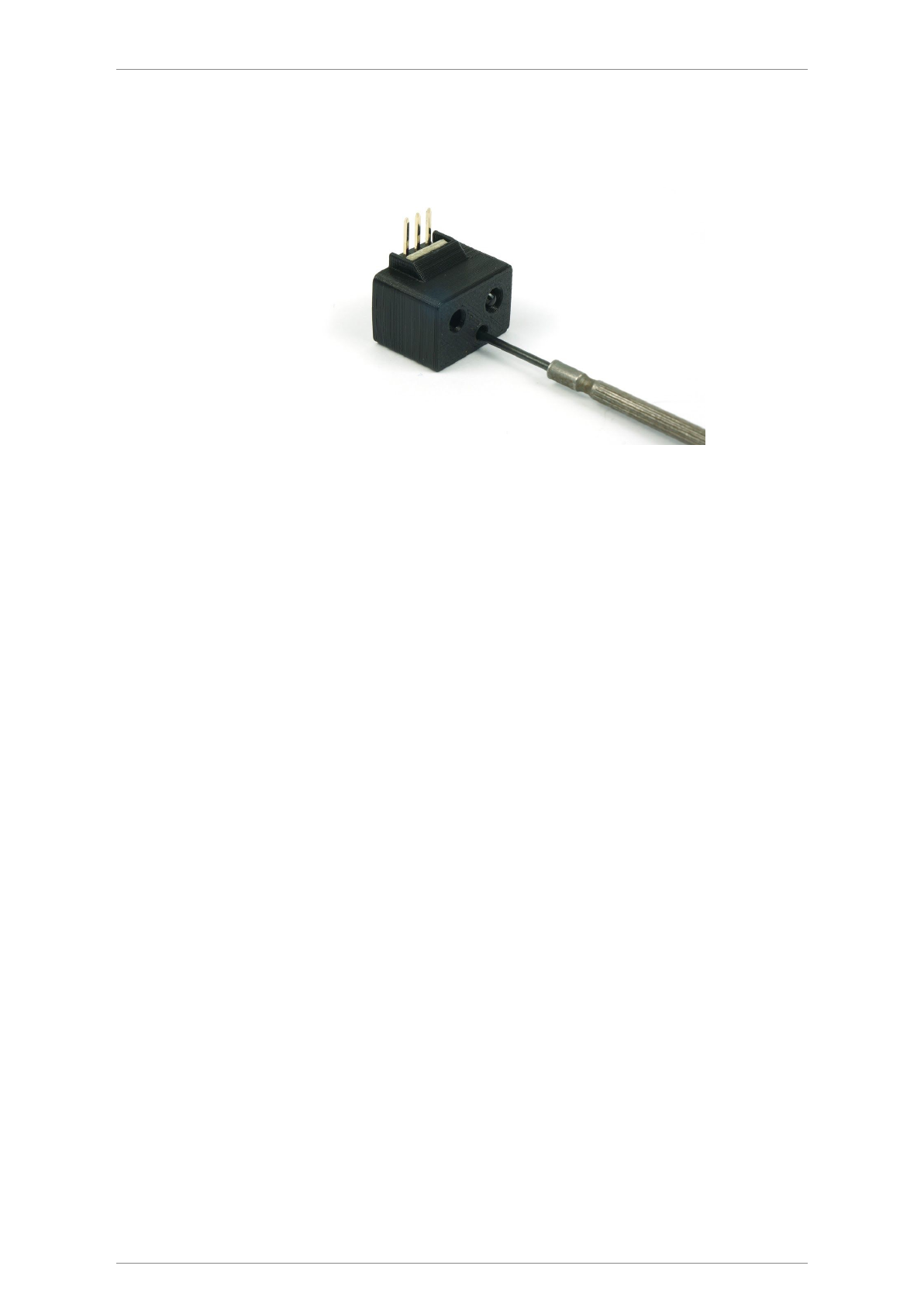

The sensing distance of the Maker Object can be adjusted using a small Phillips head

screwdriver via the small opening at the front of the sensor.

● Maximum Distance



- To set the range to maximum, power on the sensor and

turn the trimmer clockwise until the output LED turn off. Turn back

counter-clockwise slowly until the LED just turn on. This will be the maximum

sensing distance for the sensor.

● Minimum Distance



- To set the range to minimum, power on the sensor and turn

the trimmer counter-clockwise until the output LED turn off. Turn back

clockwise slowly until the LED just turn on. This will be the minimum sensing

distance for the sensor.
