 ProductUser’sManual–SHIELDMD10


6.0HARDWAREINSTALLATION

This section shows the example of using SHIELDMD10 with Arduino UNO as the main controller              
to control a brush motor. However, other Arduino main board such as Arduino Duemilanove and              
ArduinoMegacanalsobeused.


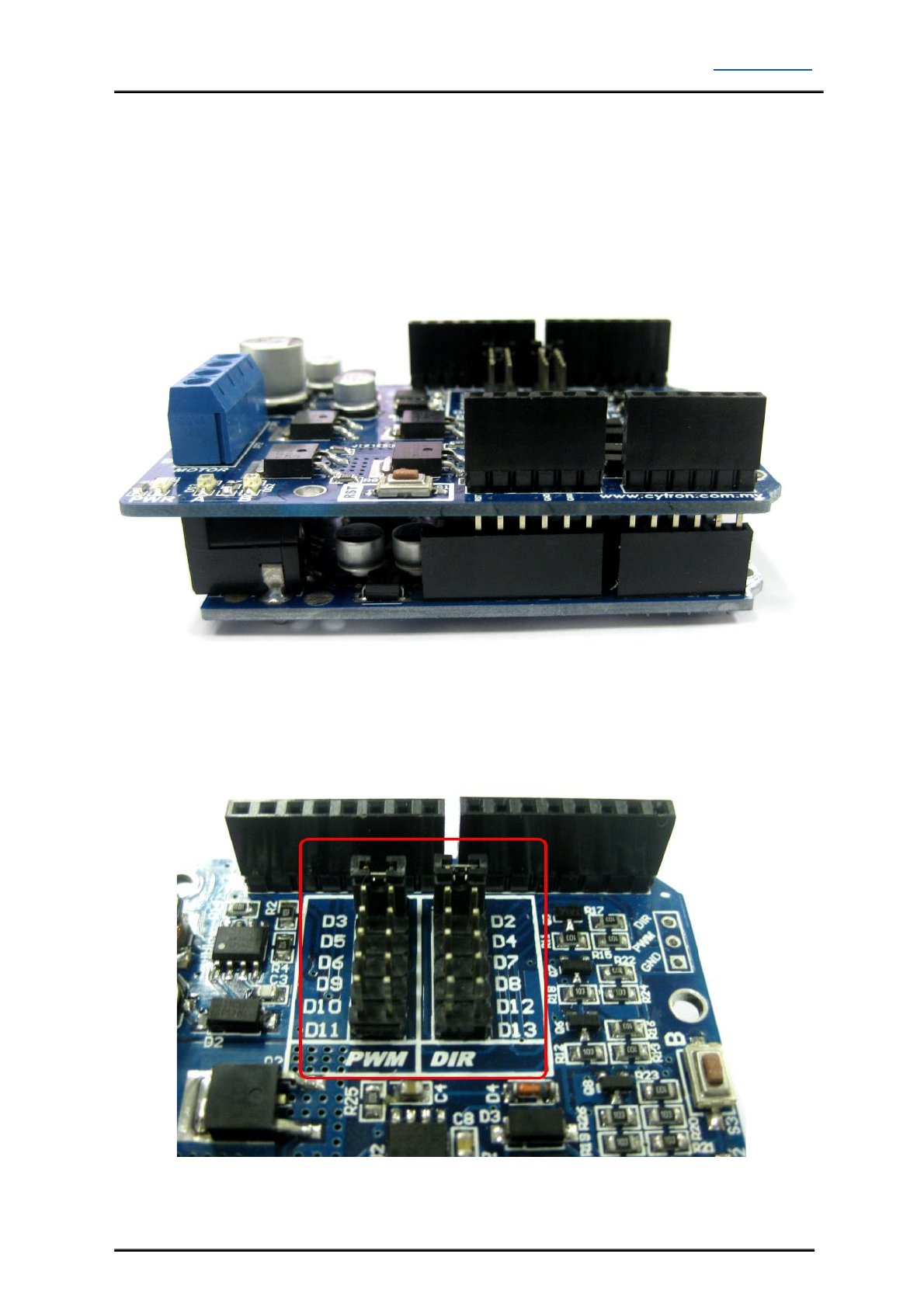

Figure below shows that the SHIELDMD10 is stacked on the Arduino UNO. Please ensure that              
thepinsalignmentiscorrect.



Select the pins for PWM and DIR. The default PWM pin is set to D3 while the DIR pin is set to                     
D2. However, other pins may be selected if these pins are already used by other application.               
RemembertoinitializethecorrectArduino’sdigitalpinaccordinglyintheusersketch/program.



Connect the brush motor and motor power to the terminal block on SHIELDMD10 as shown.              
