STK22C48
Document Number: 001-51000 Rev. ** Page 11 of 14
Hardware STORE Cycle
Parameter Alt Description
STK22C48
Unit
Min Max
t
DHSB
[13, 16]
t
RECOVER,
t
HHQX
Hardware STORE High to Inhibit Off 700 ns
t
PHSB
t
HLHX
Hardware STORE Pulse Width 15 ns
t
HLBL
Hardware STORE Low to STORE Busy 300 ns
Switching Waveform

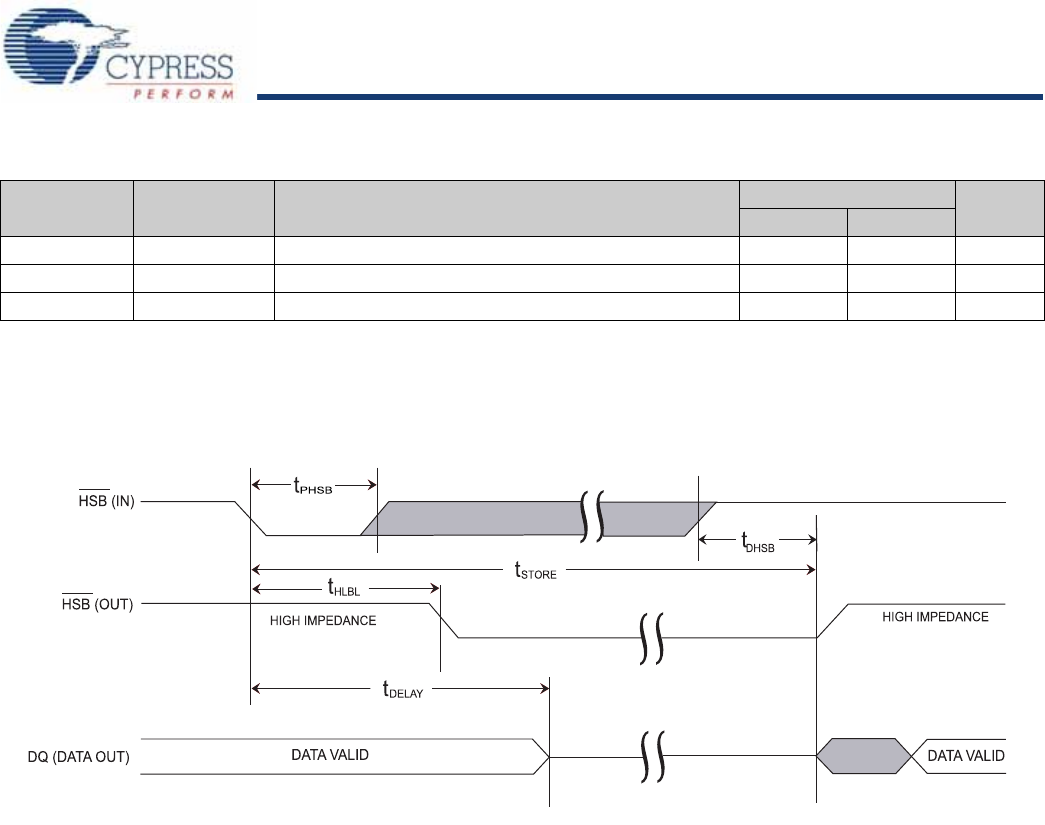

Figure 12. Hardware STORE Cycle
Note
16. t
DHSB
is only applicable after t
STORE
is complete.
