CY7C67300
Document #: 38-08015 Rev. *J Page 97 of 99

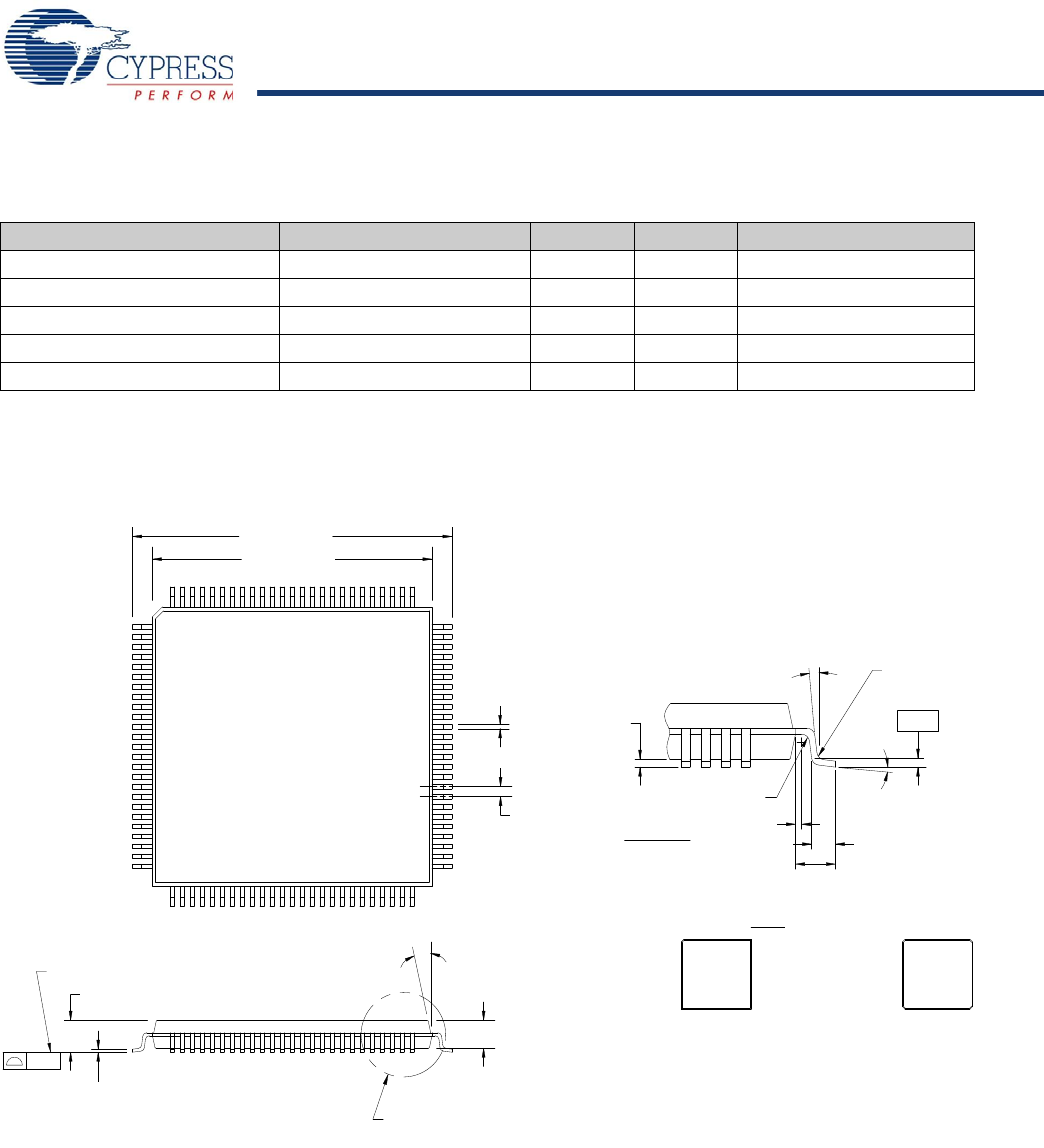

Ordering Information
Package Diagrams
Figure 12. 100-Pin Thin Plastic Quad Flat Pack (TQFP) A100SA
Table 143. Ordering Information
Ordering Code Package Type AEC Pb-Free Temperature Range
CY7C67300-100AXI 100 TQFP X –40 to 85°C
CY7C67300-100AXA 100 TQFP X X –40 to 85°C
CY7C67300-100AXIT 100 TQFP, tape and reel X –40 to 85°C
CY7C67300-100AXAT 100 TQFP, tape and reel X X –40 to 85°C
CY3663 Development Kit
NOTE:
1. JEDEC STD REF MS-026
2. BODY LENGTH DIMENSION DOES NOT INCLUDE MOLD PROTRUSION/END FLASH
MOLD PROTRUSION/END FLASH SHALL NOT EXCEED 0.0098 in (0.25 mm) PER SIDE
3. DIMENSIONS IN MILLIMETERS
BODY LENGTH DIMENSIONS ARE MAX PLASTIC BODY SIZE INCLUDING MOLD MISMATCH
0.22±0.05
0.50
14.00±0.05 SQ
16.00±0.25 SQ
1.40±0.05
12°±1°
1.60 MAX.
0.05 MIN.
0.60±0.15
0° MIN.
0.25
0°-7°
(8X)
STAND-OFF
R 0.08 MIN.
TYP.
GAUGE PLANE
0.20 MAX.
0.15 MAX.
0.20 MAX.
1
100
R0.08MIN.
0.20 MAX.
76
75
5125
26 50
0.20 MIN.
1.00 REF.
0.08
SEE DETAIL
A
DETAIL
A
SEATING PLANE
NOTE: PKG. CAN HAVE
OR
TOP LEFT CORNER CHAMFER 4 CORNERS CHAMFER
51-85048-*C
