7. Operation Controls and Functions

The following sections describe the hardware components of the unit with

installation and functionality.

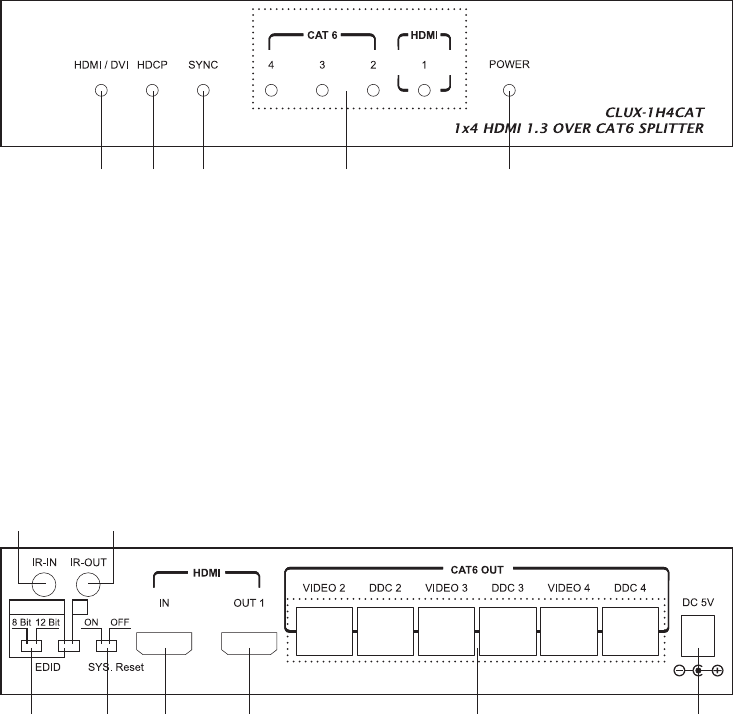

7.1 Front Panel

① ② ③ ⑤④

①

HDMI/DVI indicators: When the LED turns on this means the input source

is HDMI and when the input source is DVI the LED will not turn on.

②

HDCP indicators: When the input source has HDCP protection the

HDCP LED will turn on.

③

SYNC Indicator: The LED will turn on when the input source's signal is

detected by the device.

④

Output LED1~4: The LED will illuminate when output display is connected

with power on.

⑤

Power LED: The LED will turn on when power is on.

7.2 Rear Panel

③

① ②

④

⑤ ⑥ ⑦ ⑧

①

IR IN: This slot is to be connected with the IR receiver cable included in the

package and use the source

’

s remote to control source equipment.

②

OUT: This slot connects with the IR blaster cable included in the

package and should be placed it in front of the source for sending and

infrared signal.
