Specifications

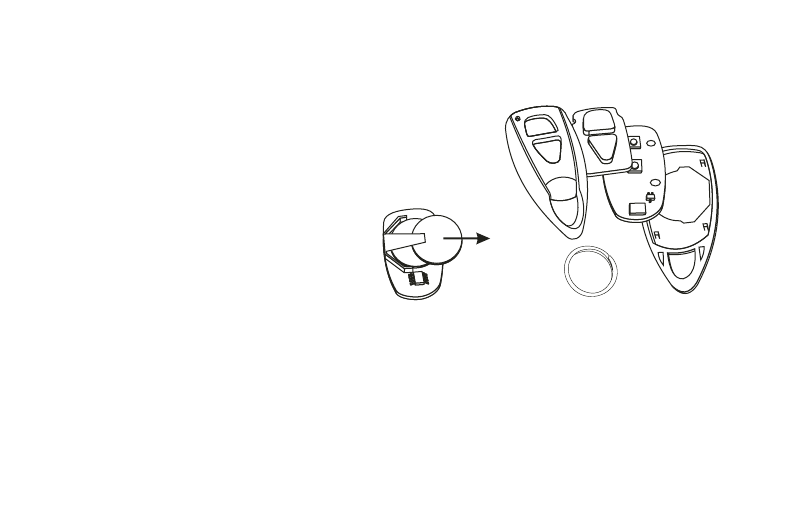

BATTERY REPLACEMENT
Using a flat head screwdriver to carefully
separate the two body housings taking care
not to disturb the circuit board. Remove
the old batteries whilst paying attention
to the orientation of the positive
and negative terminals. Insert
new batteries in identical
fashion to the original and re-
assemble remote. Test remote
control by pressing main button.
For further information, please
contact your local Cyclops service
centre. Remote battery type
CR2016.
OPTIONAL FEATURES
All optional features require additional connections. Many require
additional hardware as well. Each feature is described within the next
pages.
- Page 10 -
CASE TOP
MEMBRANE
PCB
CASE BOTTOM
KEYRING
REMOVE BATTERIES
IN THIS DIRECTION
