Service manual

Cybex VR3 12050 Leg Extension Owner’s Manual
Service
Page 6-12
2
1
9
9
5
7
7
8
8
3
4
6
6
3
TORQUE SET SCREWS
300-350 IN./LBS
ITEM QTY PART NO. DESCRIPTION
1 1 11040-216 Belt Clamp
2 1 11040-301 Belt Clamp Insert
3 2 13000-364 Bearing, Flange
4 1 4700-266 Top Weight 25- 3 x 12
5 1 BH030207 Pin, Weight Selector
ITEM QTY PART NO. DESCRIPTION
6 2 BR030206 Ring, Retaining
7 2 BR030220 Retaining Ring 1.250 Internal
8 2 HS720004 Washer, Felt
9 3 HY740000 Set Screw
10 90” GB000202 Weight stack Belt .95 Wide
(Not Shown)

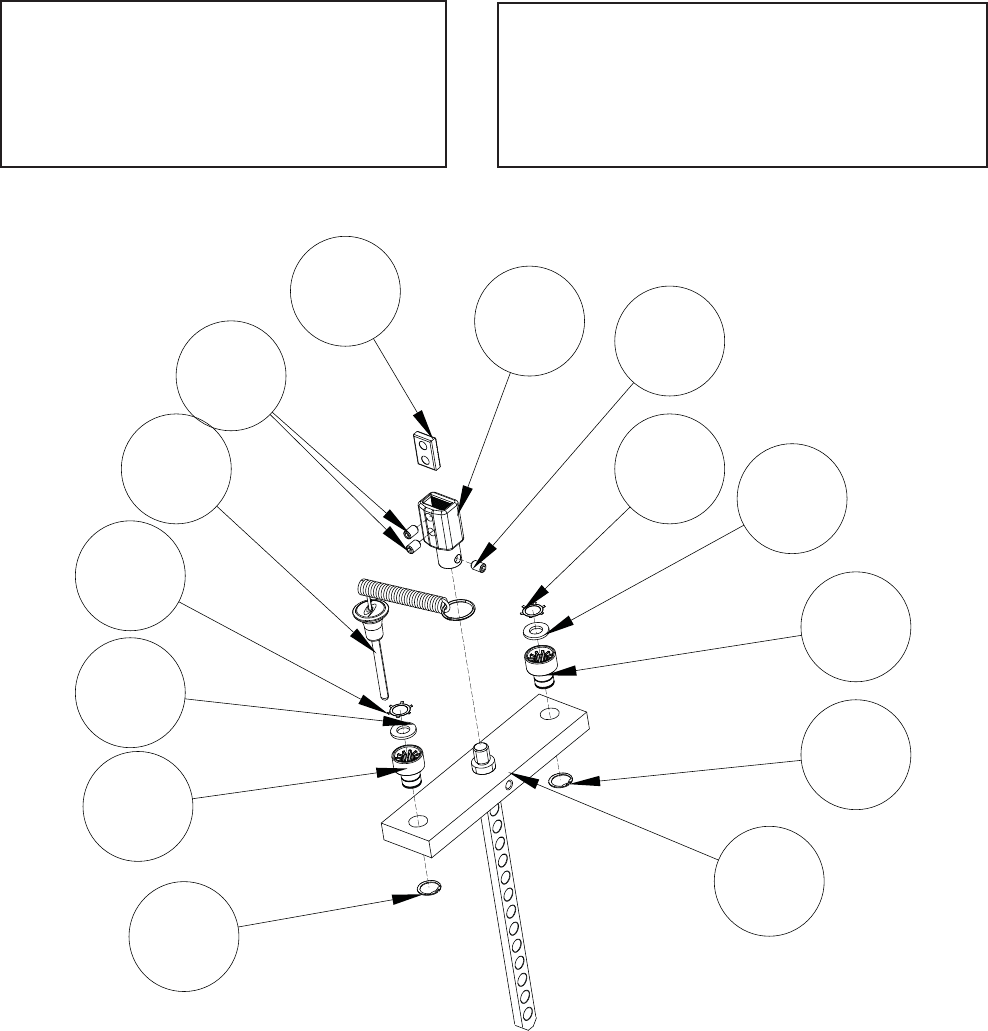

12350, 13351, 13352 VR3 Leg Extension
Graduated Stack Assembly Configuration
12301-007 Assembly
