WLAN PCI Adapter User’s Manual
Connecting the adjustable Antenna to the Card

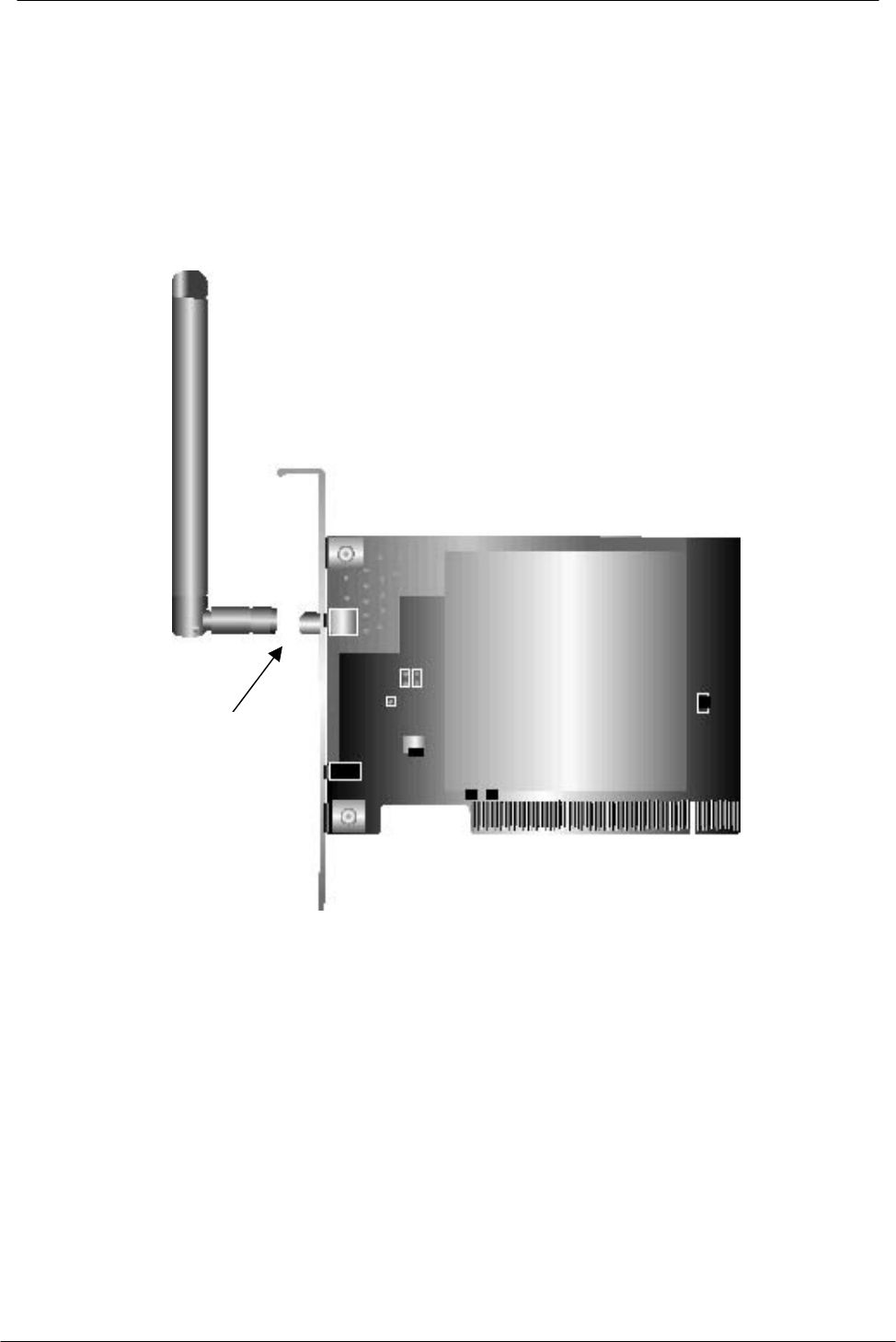

After installing the Card on computer, connect external Antenna to the Card from the SMA
connector. Hold the antenna in the desired orientation and then turn the lock nut
clockwise until snug (do not over tighten the nut). To adjust the antenna direction, turn the
nut counter clockwise one full turn, adjust the antenna and then tighten the nut.
SMA Connector
After hardware installation is completed, please go to Chapter 3 to install driver on
different Operating System.
