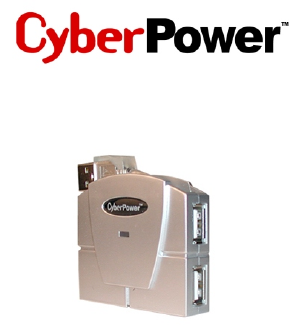

Quick Start Guide for USB 4-Port Hub Model No. CP-H411 This USB Hub makes the most of your computer and workspace by increasing the number of available USB ports. There has never been a more convenient way to expand your USB capacity.
Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 2 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Appendix A. . . . . . . . . .
Introduction USB (Universal Serial Bus) is currently the standard for most computers, notebooks and peripherals. The USB connections allow the user to easily connect multiple devices. The Cyber Power USB 4 Port Hub (Model. CP-H411) provides additional ports to connect up to 4 USB devices to a single USB port on your computer. The Quick Start Guide contains easy instructions in order to show you how to set up and start using your Cyber Power USB Hub.
System Requirements Any PC or Macintosh computer with an available USB port and USBcompliant operating system (Windows 98/ 98SE/ 2000/ ME/ XP, MacOS 8.6 or above, etc.
Specifications 3
Product Overview 3 1 4 2 2 3 Model CP-H411 4
Product Overview - continued 1) Power Indicator - Blue LED will light when USB Hub is receiving power. 2) Downstream Ports - Connect your USB devices to these 4 ports. 3) USB Plug (A type) - Connect the USB Plug to an unused USB port on your computer to provide a link between the hub and devices. 4) AC Adapter Power Connection To maximize USB Hub's performance, it is recommended to plug Cyber Power AC power adapter (Model: CPSA0526; Output: 5V DC 2.6Amp) into the power jack of this hub while using.
Installation This USB Hub is a plug-and-play device. Your computer will display the Add New Hardware Wizard after connecting the hub to your computer. Installation may be done whether your computer is powered on or off. It is not necessary to restart your computer after installation. 1) Connect the USB plug to an unused USB port on your computer. 2) Connect your USB devices to the Downstream ports on the USB Hub.
Appendix A Problem Possible Cause A Troubleshooting Problem Unit operates erratically Possible Cause Static electricity may cause the hub to behave erratically. Action Reset the hub by disconnecting it from your computer. Wait 5 seconds, then reconnect it. USB devices Connected USB Connect the CyberPower operate erratically or devices may require AC power adapter to can't be powered too much power for the hub. on. bus-powered operation. Unit fails to operate Non-USB compliant at all.
Appendix B Radio & TV Interference Statement This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequence energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Appendix C Lifetime Limited Warranty Cyber Power warrants this USB Hub (the Hub ) to be free from defect in material or manufacture for its lifetime. If a defect results in product failure during its normal use, Cyber Power's sole responsibility is to repair or replace (at its sole option) the Hub. The foregoing Limited Warranty is the consumer's sole and exclusive remedy and excludes any incidental or consequential damages.
CyberPower Systems (USA), Inc. 5555 12th Avenue East, Suite 110, Shakopee, MN 55379, U.S.A. TEL: (952) 403-9500 FAX: (952) 403-0009 Toll-Free: (877) 297-6937 E-mail: sales@cyberpowersystems.com Web: www.cyberpowersystems.com Entire contents copyright© 2004 CyberPower Systems, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited.
