WALL MOUNT INSTALLATION
INSTALLING REMOVING THE BASE STAND
WARNING
/
: The
LCD Display is very fragile and must be protec ted a t a ll t imes when removing the b ase
Stand
Be sure that no hard or sharp object or anything that could scratch or damage the LCD display comes into
contact with it Do NOT exert pressure on the front of the unit at any time because the screen could crack
1Disconnect all cables or cords connected to the unit
2Lay the unit down on a flat surf ace with the bac k side facing up Please make sure to plac e a soft
cushioned material such as a pillow or thick piece of foam beneath the screen

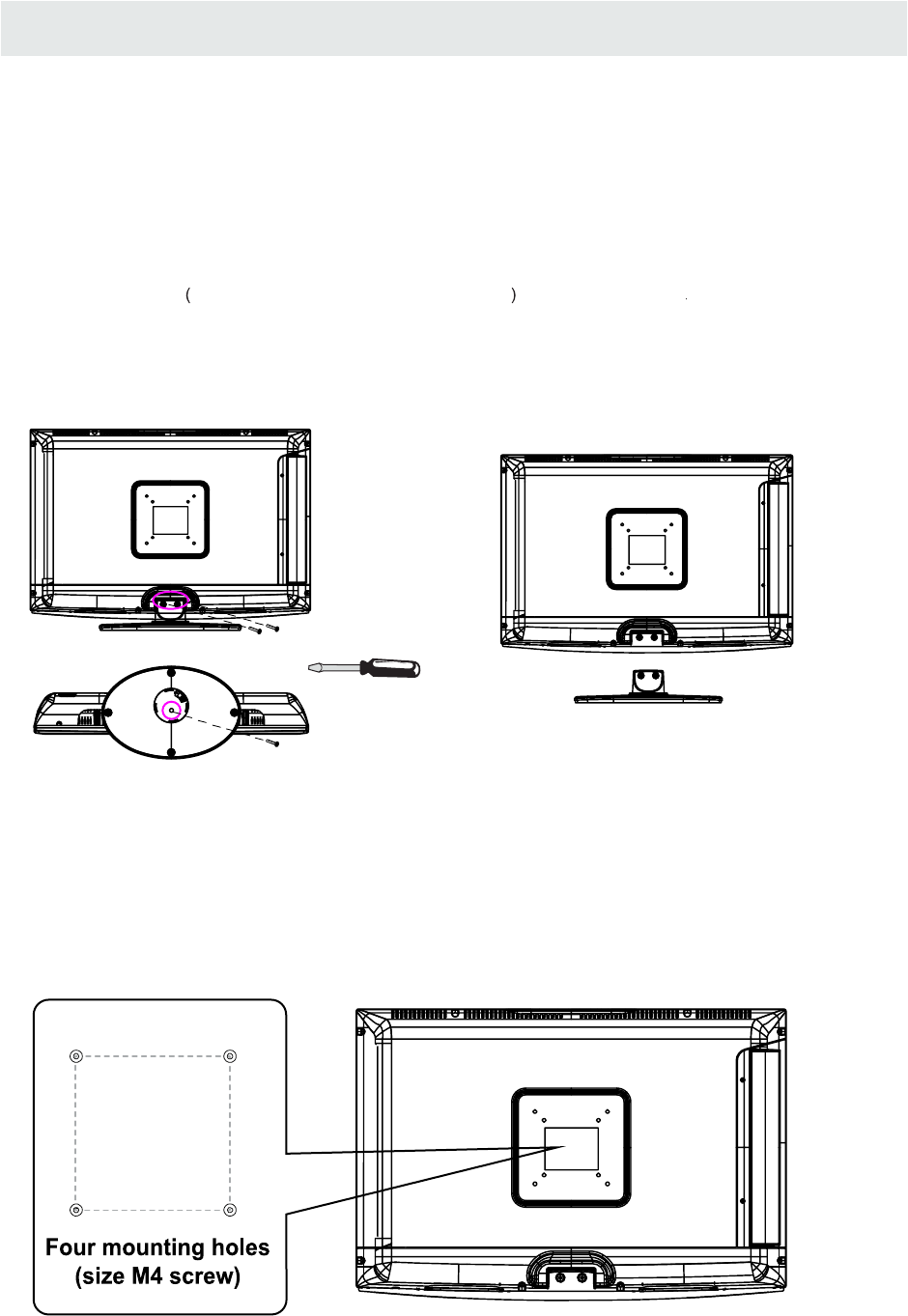

3To re m ov e the base stand loosen screws of f the holes then pull downwards to re l ea s e
the ba se stand
4To install th e bas e stand put the stand into the hole at the bottom of the TV then inser t screws to the
holes and tighten.
,
.
,,
. .
..
. .
.,
.
.,
MOUNTING ON THE WALL
NOTE
Re m o ve the base stand before mounting the unit on the wall.
This unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 3” x 3”
(75mm x 75mm) mounting kit designed for flat-pan e l TVs (not supplied). Mount this unit according to
the instructions included in the mounting kit.
Length of screw should not exceed 12 mm.
3”
10
3”
