CONNECTIONS
CONN ECTING A TV ANTENNA / CABLE / S A TELLITE
To view television channels correctly, a signal must
be received from one of the following sources:
- An indoor or outdoor aerial antenna
- A cable system
- A satellite system
For receiving over-the-air TV broadcasts, we
recommend that you use an external fixed anten na.
Should yo u require the use of a temporar y antenna,
please ensure that you purchase an antenna with
sufficient ability to receive in weak signal areas.
Only when you are in close p roximity to a transmitter
will a temporar y antenna reproduce a signal as
strongly as a fixed antenna.
To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.
CONNECTING AN A/V DEVICE
NOTE
Connecting to a VCR / Camcorder /
Satellite System / Cable
AUD IO OUT S-VIDEO OUT
AUDIO IN S-VIDEO IN
NOTE
CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA -TYPE)
VIDEO OUTPUT
Connecting to a VCR / Vid eo Game System / Camcorder
AUD IO VI DE O OUT
AUD IO VI DE O IN
NOTE
Connect the AUDIO and S-VIDEO cable
(not included) as shown.
Make sure you connect the cable from the other
equipment ( and ) to
this unit ( and ).
Please re fe r to the user manual for the other
equipment for more information.
To connect A/V devices such as a VC R, video game system or camcorder.
Connect the AUDIO / VIDEO cable (not included) as shown.
Make sure you connect the cable from the other equipment ( and ) to thi s unit
( and ).
Please re fe r to the user manual
for the other equipment for
more information.

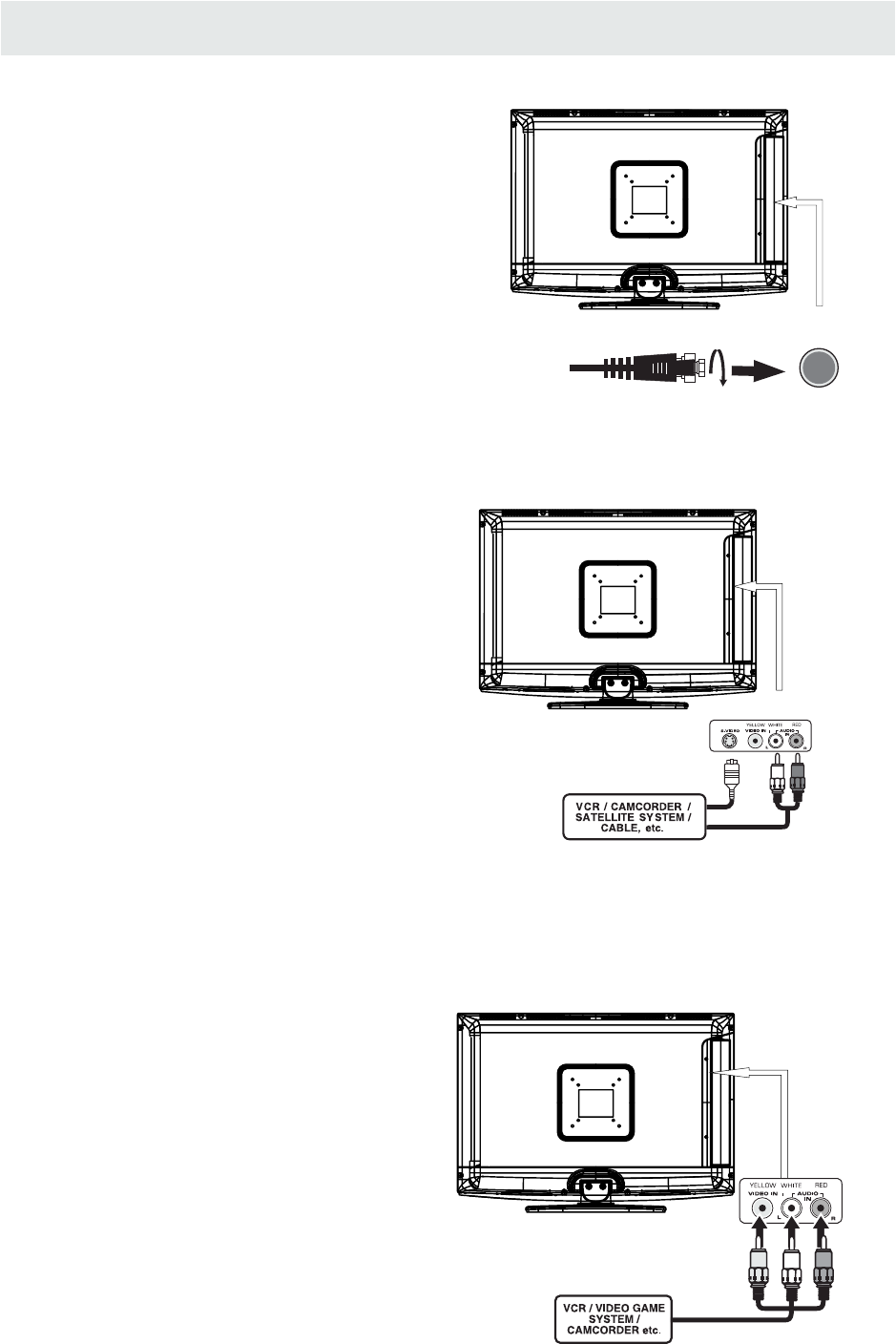

Satellite, cable or TV antenna
cable to TV ANTENNA
terminal (cable not included)
To AUDIO / VIDEO
IN jacks (AV IN)
To AUDIO / VIDEO
OUT jacks
To S-VIDEO OUT / AU DIO OUT jacks
To AUDIO IN
jacks (AV IN)
To DIO IN
jacks (AV IN)
SVI-
