Output Control (green to red progression)
• Rotating the knob clockwise
increases braking output
• Rotating the knob counter-clockwise
decreases the braking output
• Green represent lowest setting and
red represent the highest setting
• After 10 seconds of no user input,
the interface switches to brightness mode
and the display goes to sleep.
• Pressing and holding down the
button activates manual control
The output control establishes the maximum amount of power
available to the trailer brakes when braking. The only exception
would be when the manual control is set up for 100% braking.
See the 'Set Manual Control Output and Brake Light Switches'
section (page 11).
The output control can be adjusted during initial setup, when
trailer load changes, when different trailers are used or when
adjustment is needed for changing road or driving conditions.
Manual Control (red progression) - continued
• Pressing and holding the button during any
mode activates the manual brake output
• The manual output functions as
time-based and ramps up over time
• The red LEDs light up in sequence
proportionally to the brake output
• Adjust the gain in active process by rotating the
knob clockwise to increase and counter-clockwise
to decrease the gain while holding the button down
• Releasing the button returns to the previous mode
Brightness Control (white progression)
• Default control state
• Rotating the knob clockwise
will increase the brightness
• Rotating the knob counter-clockwise
will decrease the brightness

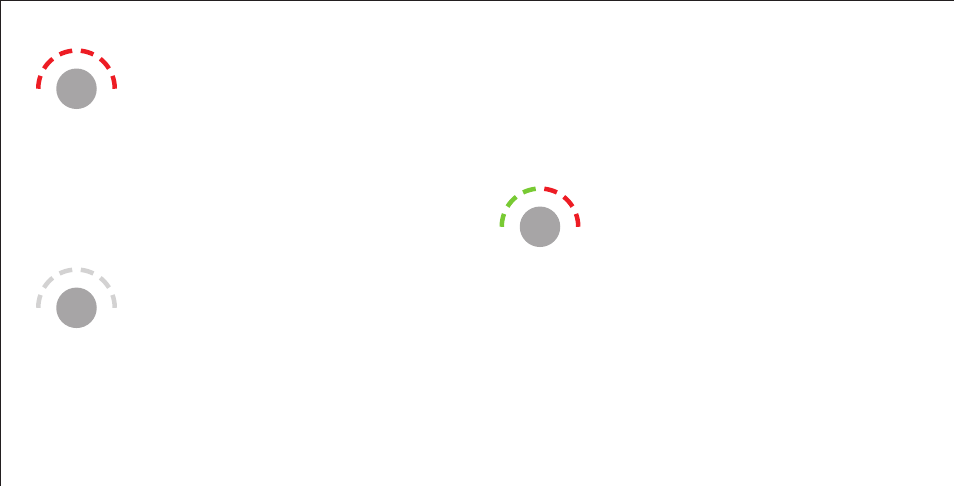

Brightness
(white)
Manual
(red)
Output
(green - red)
