INITIAL SETUP
Once all electrical connections are complete, plug the trailer's electrical
connector into the tow vehicle's plug while parked on a level surface.
Connecting the trailer initiates the mounting position calibration mode.
A green LED in ramp-up sequence will be seen on the LED display. To
recalibrate, unplug and re-plug in the trailer's electrical connector.
Make the following preliminary adjustments with the trailer connected
and engine running to ensure proper charge voltage. The vehicle must
be in park or neutral with the parking brake applied, foot off of the brake
pedal, and no manual control actuation.
Adjust the output by pressing the rotary knob until the brake control is in
the output control mode. Green-red LEDs will appear on the display. Rotate
the knob clockwise or counter-clockwise as needed to set output control.
Adjust the sensitivity by pressing the rotary knob until the brake control
is in the sensitivity control mode. Blue-red LEDs will appear on the LED
display. Rotate the knob clockwise or counter-clockwise as needed to
set the sensitivity control.
SET MANUAL CONTROL OUTPUT
AND BRAKE LIGHT SWITCHES

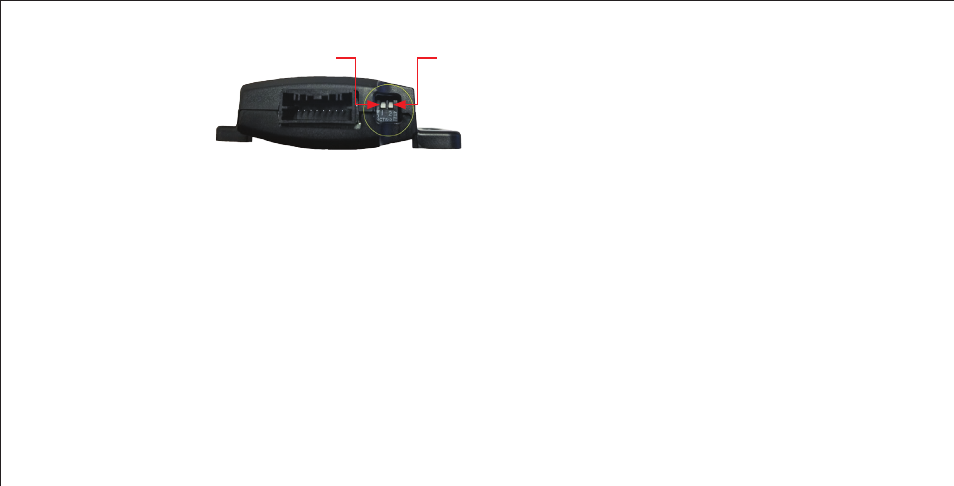

There are two small switches
located at the front of the unit,
next to the port on the module.
Once accessed, the switch
positions can be changed
using a small pointed tool.
In the illustration above, the switch on the right (#2) controls the level of
output available to the trailer brakes when using the manual control. The
factory default setting is the 'ON' position with the switch down. This
setting limits the manual control output to the level set using the output
control. Moving this switch up to the 'OFF' position allows 100% of the
output to the brakes when the manual control is actuated regardless of
the output control setting.
The switch on the left (#1) controls the unit's brake light activation
feature. The factory default setting is the 'ON' position with the switch
down. This setting activates the tow vehicle and trailer brake lights
when the manual control is actuated. Moving the switch up to the 'OFF'
position turns off the brake light activation feature and the brake lights
are not activated when the manual control is actuated.
2
1
