5. Maintenance 7-2018
82 A045R242 (Issue 12)Copyright © 2018 Cummins Inc.
No. Description No. Description
1 Air Cleaner 2 Strap Clamp

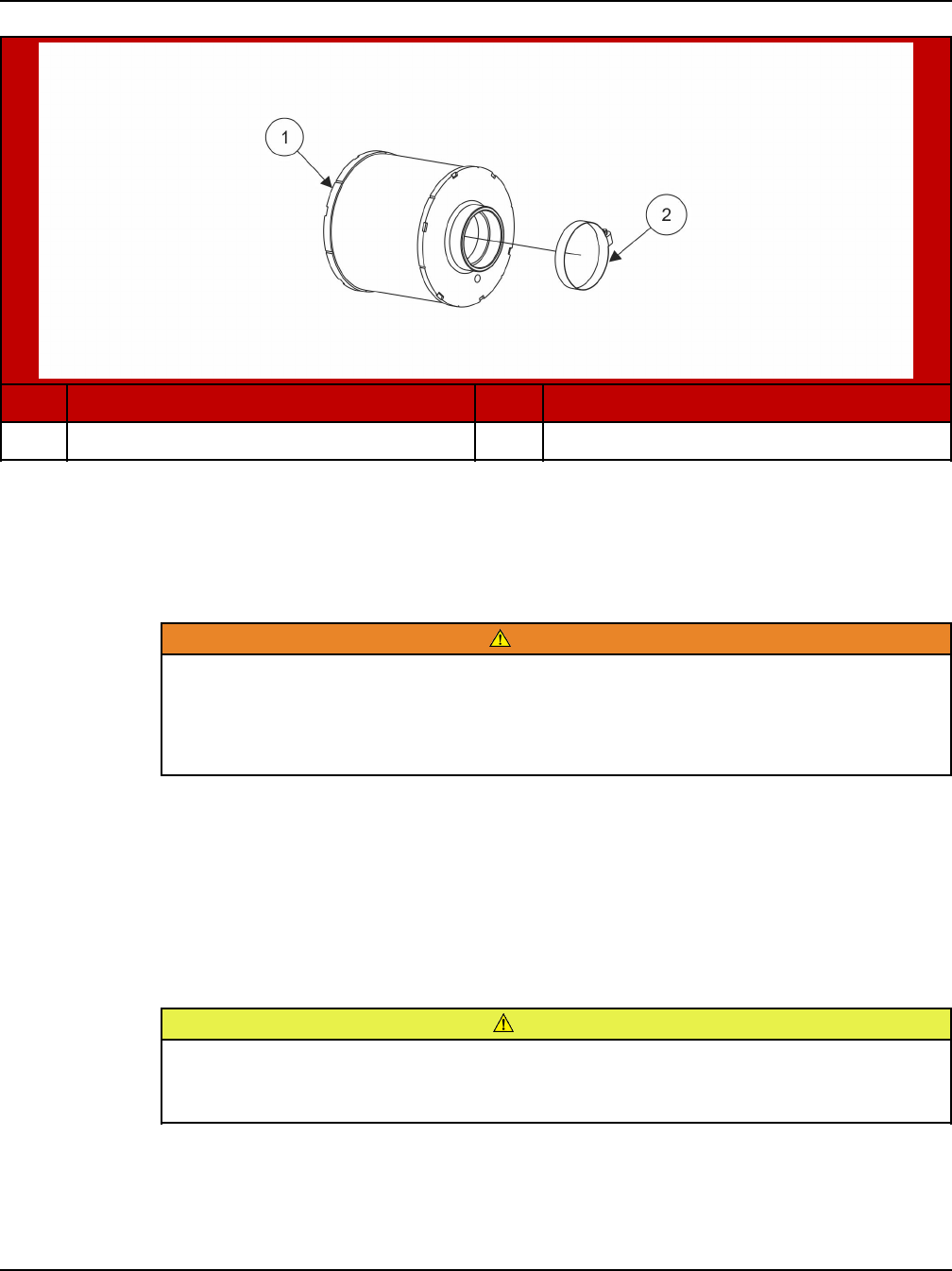

FIGURE 39. EXAMPLE OF NORMAL DUTY AIR CLEANER
Heavy Duty Air Cleaner
Heavy Duty Air Cleaner Maintenance
WARNING
Fall Hazard
Falls can result in severe personal injury or death.
Make sure that suitable equipment for performing tasks at height are
used in accordance with local guidelines and legislation.
There is a dust ejector valve (DEV) on the bottom of each filter pre-cleaner
that should be checked periodically to make sure it is free of dust and dirt.
When there is a filter pre-cleaner, it includes a primary and secondary element
that is checked periodically to make sure they are clean. Refer to the Periodic
Maintenance Schedule table for additional information.
Heavy Duty Air Cleaner Element Replacement
CAUTION
Holes, loose-end seals, dented sealing surfaces, corrosion of pipes,
and other forms of damage render the air cleaner inoperative and
require immediate element replacement or engine damage can occur.
