5. Maintenance7-2018
77A045R242 (Issue 12) Copyright © 2018 Cummins Inc.
No. Description No. Description
1 Fill Cap 3 Oil Filter
2 Dipstick 4 Oil Drain Hose

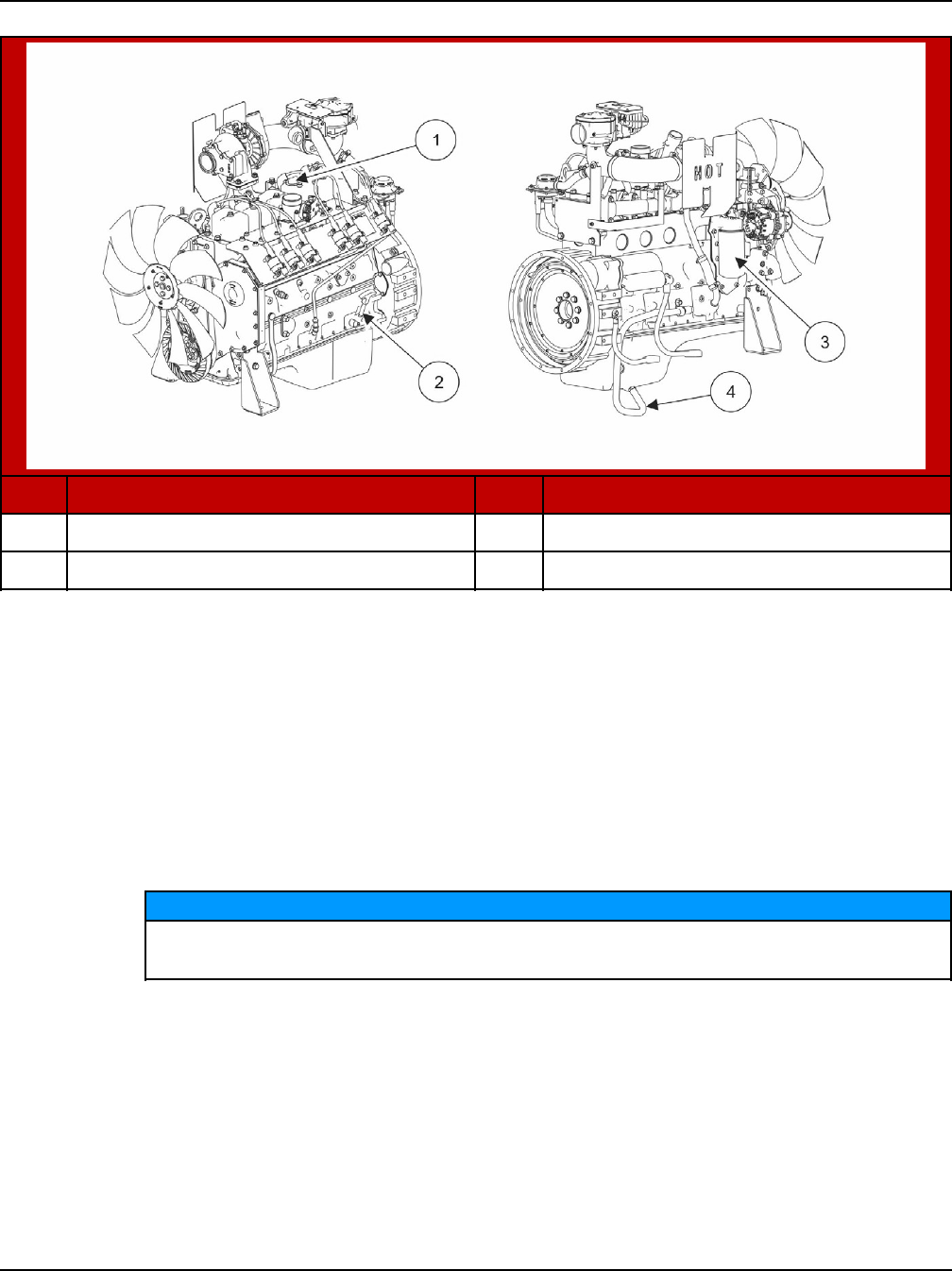

FIGURE 37. ENGINE OIL COMPONENTS
To check the engine oil level:
1. Make sure that the engine has not been running for approximately five minutes.
2. Clean off the area surrounding the dipstick port to prevent entry of debris into
the oil pan.
3. Pull out the dipstick and wipe it clean.
4. Reinsert and fully seat the dipstick.
5. Remove the dipstick and check the oil level.
NOTICE
The engine oil level indicated on the dipstick should be between the
High (4.3 L or 4.5 qt) and Low (3.8 L or 4.0 qt) marks.
6. Reinsert and fully seat the dipstick.
