3. Control System 7-2018
26 A045R242 (Issue 12)Copyright © 2018 Cummins Inc.

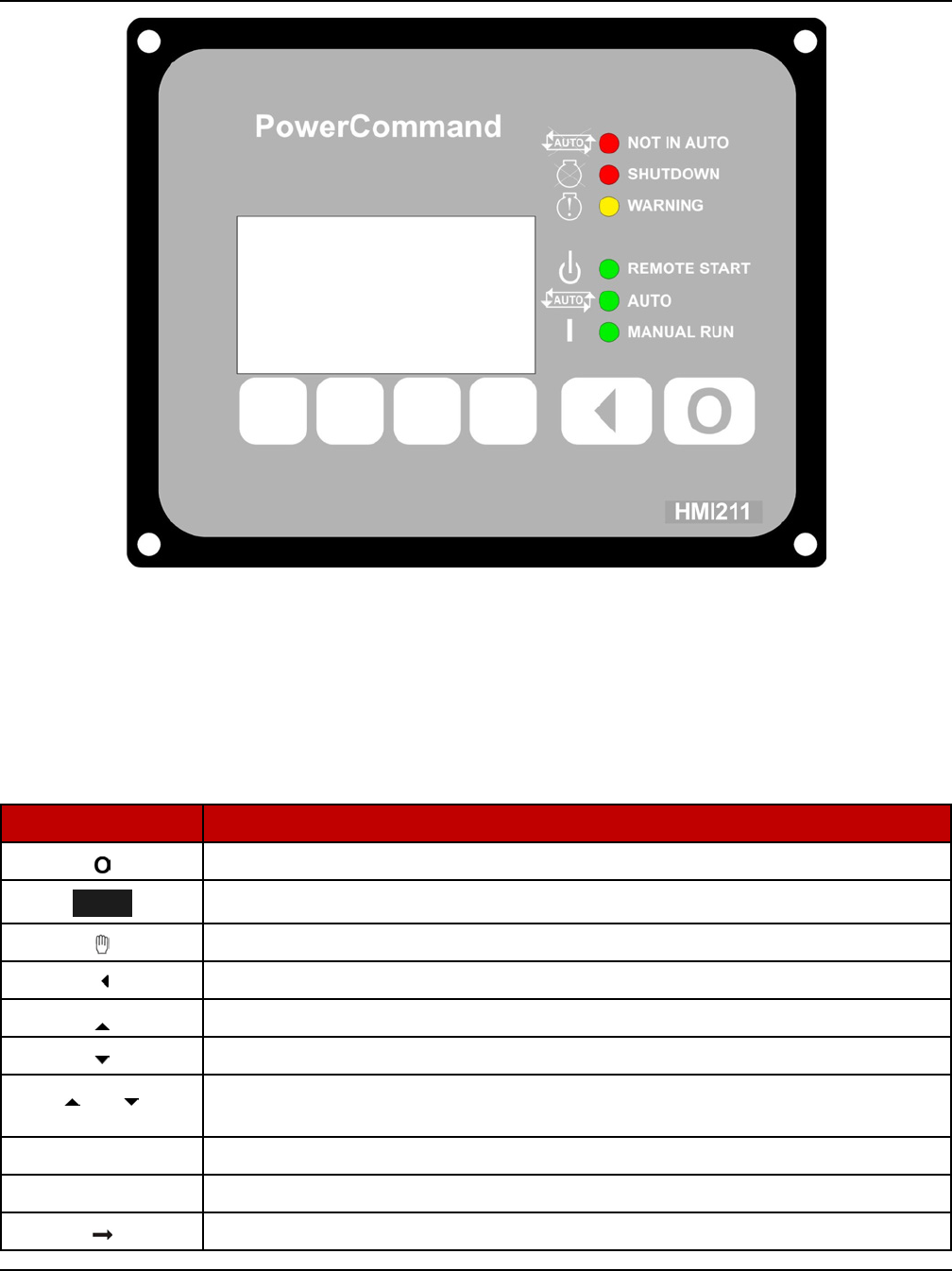

FIGURE 1. STANDARD OPERATOR PANEL (HMI211)
Standard Key Functions (HMI211)
The user interface includes two fixed action buttons and four soft key buttons.
The action of the soft key buttons changes to meet the requirements of each
screen.
TABLE 14. KEY FUNCTIONS
Key/Symbol Action
Switches to Off mode (fixed action button).
Switches to Auto mode.
Switches to Manual Run mode.
Navigates to the previous menu level (fixed action button).
(Up Arrow) Navigates to the previous screen/menu in a list.
(Down Arrow) Navigates to the next screen/menu in a list.
and Hold the up and down arrows simultaneously for two seconds from any
Info Menu to navigate to the Menu screen.
Save Saves changes and navigates to the associated screen.
Adjust Navigates to the Adjust Menu of a specific menu.
(Right Arrow) Advances the highlighted field to the next editable field.
