3. Control System 7-2018
30 A045R242 (Issue 12)Copyright © 2018 Cummins Inc.

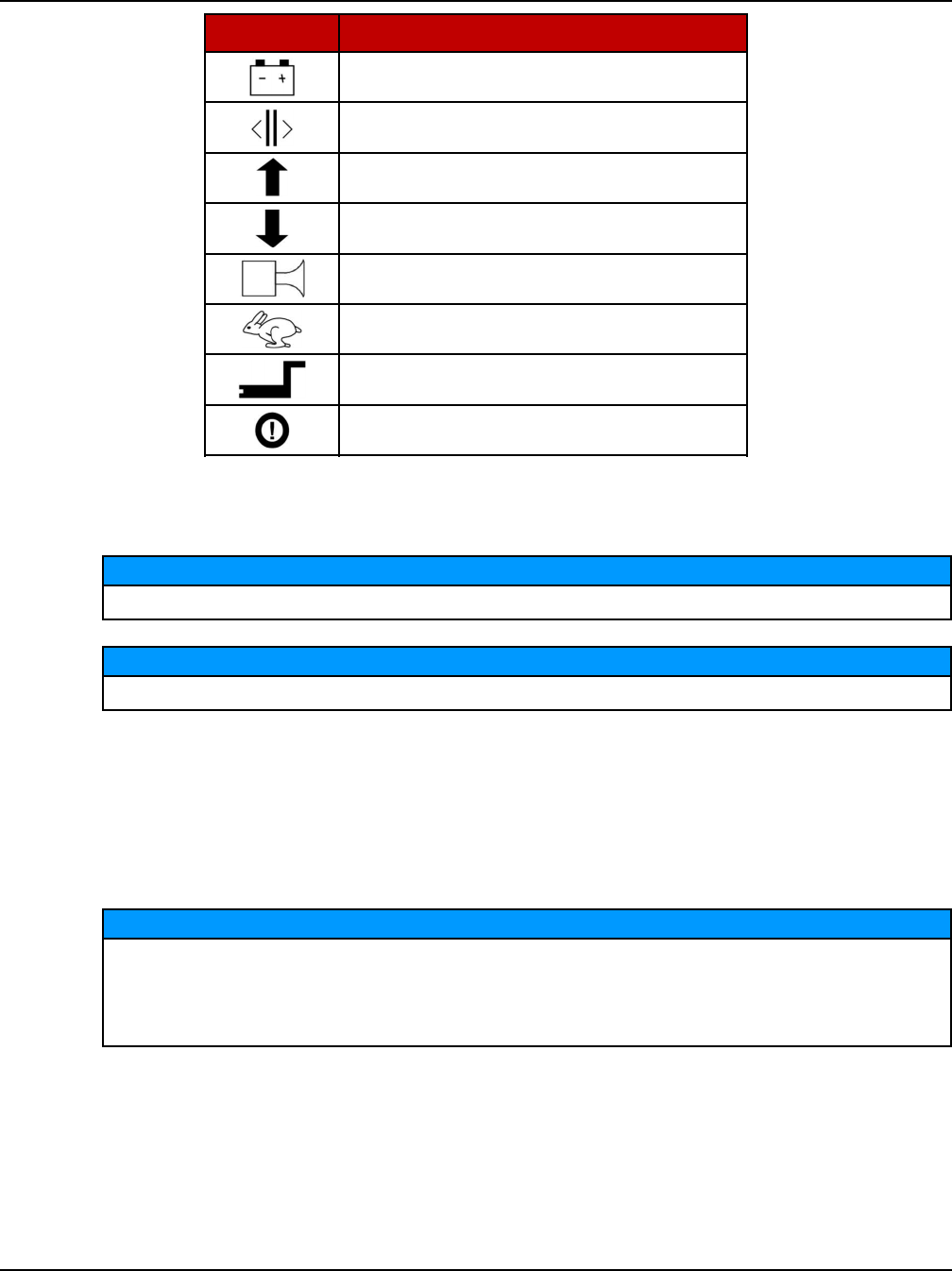

Symbol Text
Battery
Out of Range
High or Pre-High
Low or Pre-Low
Annunciator
Over Speed
Crank Fail
Emergency Stop
3.3 Exercise Settings
NOTICE
When battery power is lost, these settings must be reset.
NOTICE
Not applicable without a single phase RA series transfer switch.
To access the Clock/Exerciser Menu:
1. From any Information Menu, hold down the up and down arrows simultaneously
for two seconds. The Service Menu appears.
2. Navigate through the screens to find and select Clock/Excr in the Service
Menu.
NOTICE
The following screens represent the standard operator panel (that is,
HMI211). If using an in-home operator panel, which may be additionally
purchased as an option, the screens may look slightly different. This
procedure applies to both operator panels.
