PNEG-1425 50" Galvanized Butterfly Fan 15
Grill Guard Assembly
Position grill guard lining up attachment hoops with the holes in the cone panels at 3, 6, 9, 12 o’clock
positions. Attach and tighten using the 5/16" x 1" bolts and 5/16" whiz nuts. (See Figure 3I.)

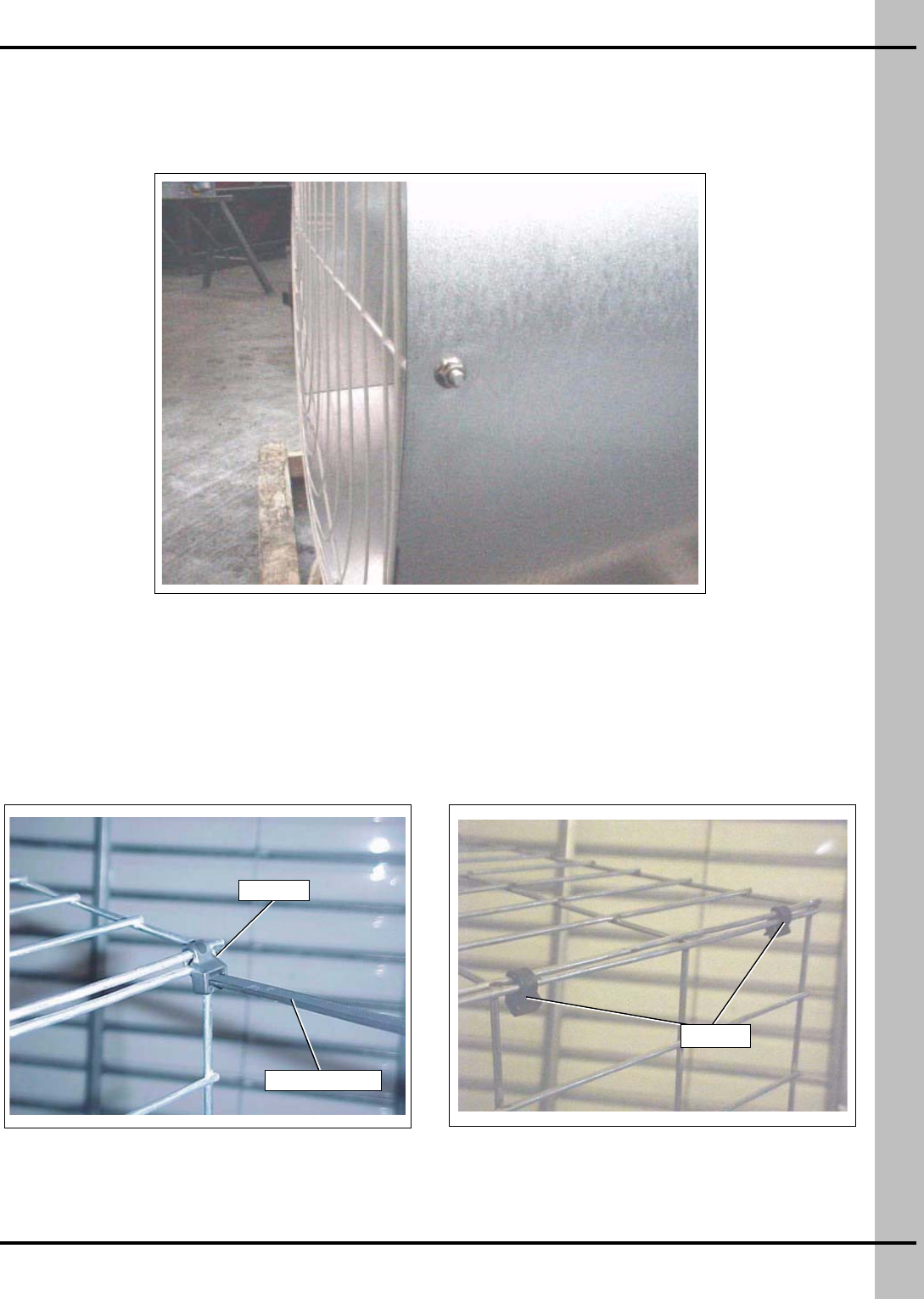

Figure 3I
Inlet Grill Assembly
1. Remove the folded Inlet grill from the packaging. Unfold all four (4) sides lining them up perpendicular
to each other. Using the black wire ties, link the sides together using two (2) ties per corner.
(See Figure 3J.) After pulling them tight, clip off excess wire tie. (See Figure 3K.) Attach hanging
hooks in corners as shown in Figure 3L and Figure 3M on Page 16 (upper left and lower right shown).
Figure 3J Unclipped Wire Tie
Figure 3K Clipped Wire Tie
Wire tie excess
Wire tie
Wire tie
