3. Installation
12 PNEG-1425 50" Galvanized Butterfly Fan
Tabbed Cone Panel Assembly

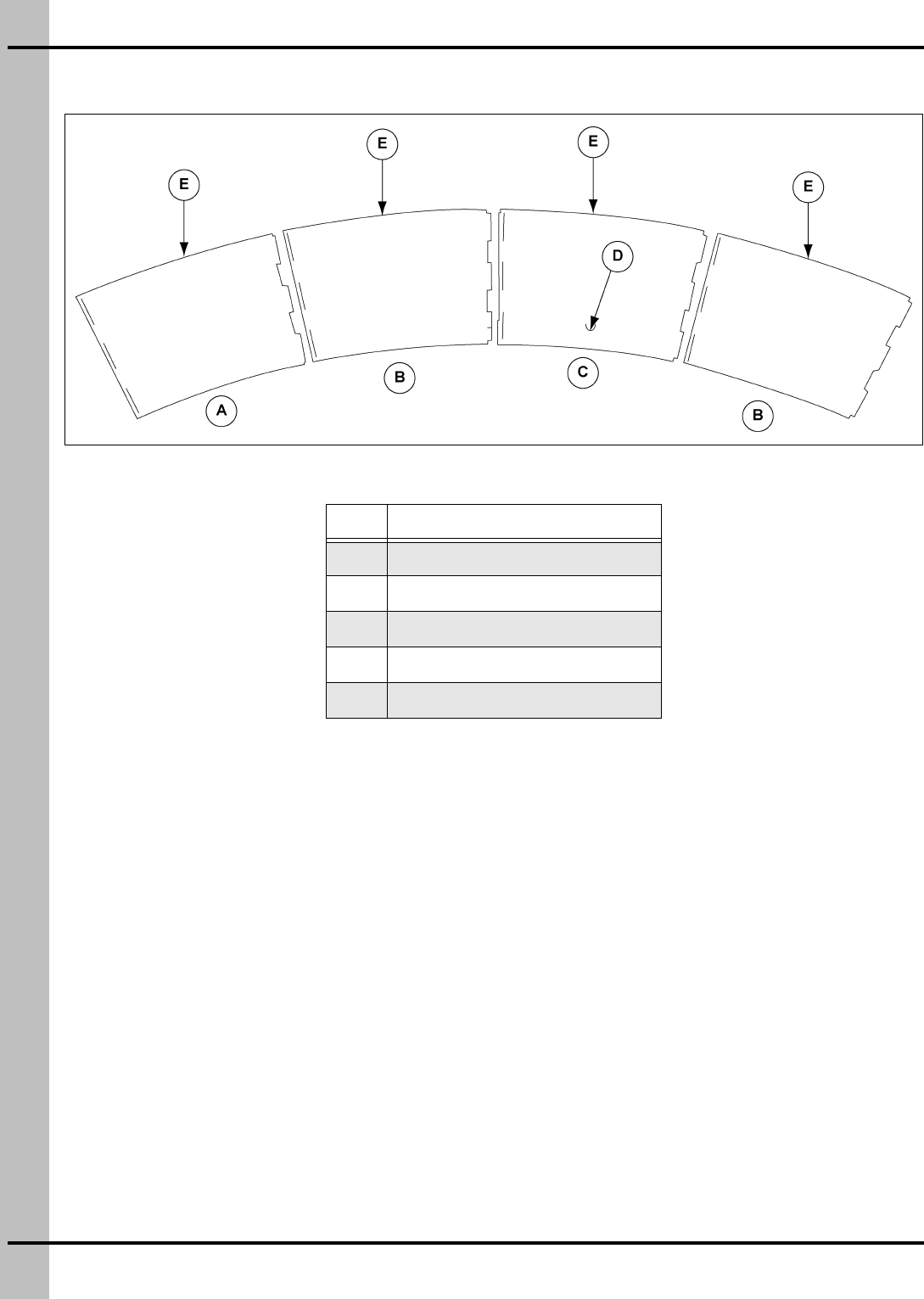

Figure 3D
Assembly Steps
1. Lay cone panels on the ground as shown in Figure 3D.
2. Slip four (4) cone panels together using tab and slot connections on edges of each panel.
(Please note that all tabs must be on the inside of the cone assembly.)
3. Place bolts through holes and thread nuts into place to hold four (4) cone panels together. (Nuts must
be located on the outside of the cone assembly.) (Do not tighten nuts.)
(See Figure 3E on Page 13.)
4. Once four (4) cone panels are assembled stand assembly up on large radius side. (See Figure 3D.)
5. Pull both ends together create a heart shape as shown in Figure 3E on Page 13 to slide tabs
into slots.
6. Place remaining bolts through holes and thread remaining nuts into place to hold cone together.
(Nuts must be located on the outside of the cone assembly.) (Do not tighten nuts.)
7. Install assembled cone onto fan venturi unit using cone strut angles provided. (See Figure 3F on
Page 13.) (Make sure bottom panel with drain hole is closest to the ground.)
Ref # Description
A Top Panel
B Side Panel
C Bottom Panel
D Drain Hole
E Large Radius
