CUI Inc │ SERIES: PQA50-T │ DESCRIPTION: DC-DC CONVERTER date 07/15/2015 │ page 4 of 7
PIN CONNECTIONS
PIN Function
1 CTRL
2 GND
3 Vin
4 Trim
5 0V
6 +Vo
units: mm[inch]
tolerance: ±0.50[±0.020]
wirerange:24~12AWG
Top View
Front View
CHASSIS MOUNT WITH HEATSINK
PIN CONNECTIONS
PIN Function
1 CTRL
2 GND
3 Vin
4 Trim
5 0V
6 +Vo
units: mm[inch]
tolerance: ±0.50[±0.020]
wirerange:24~12AWG
Top View
Front View
CHASSIS MOUNT

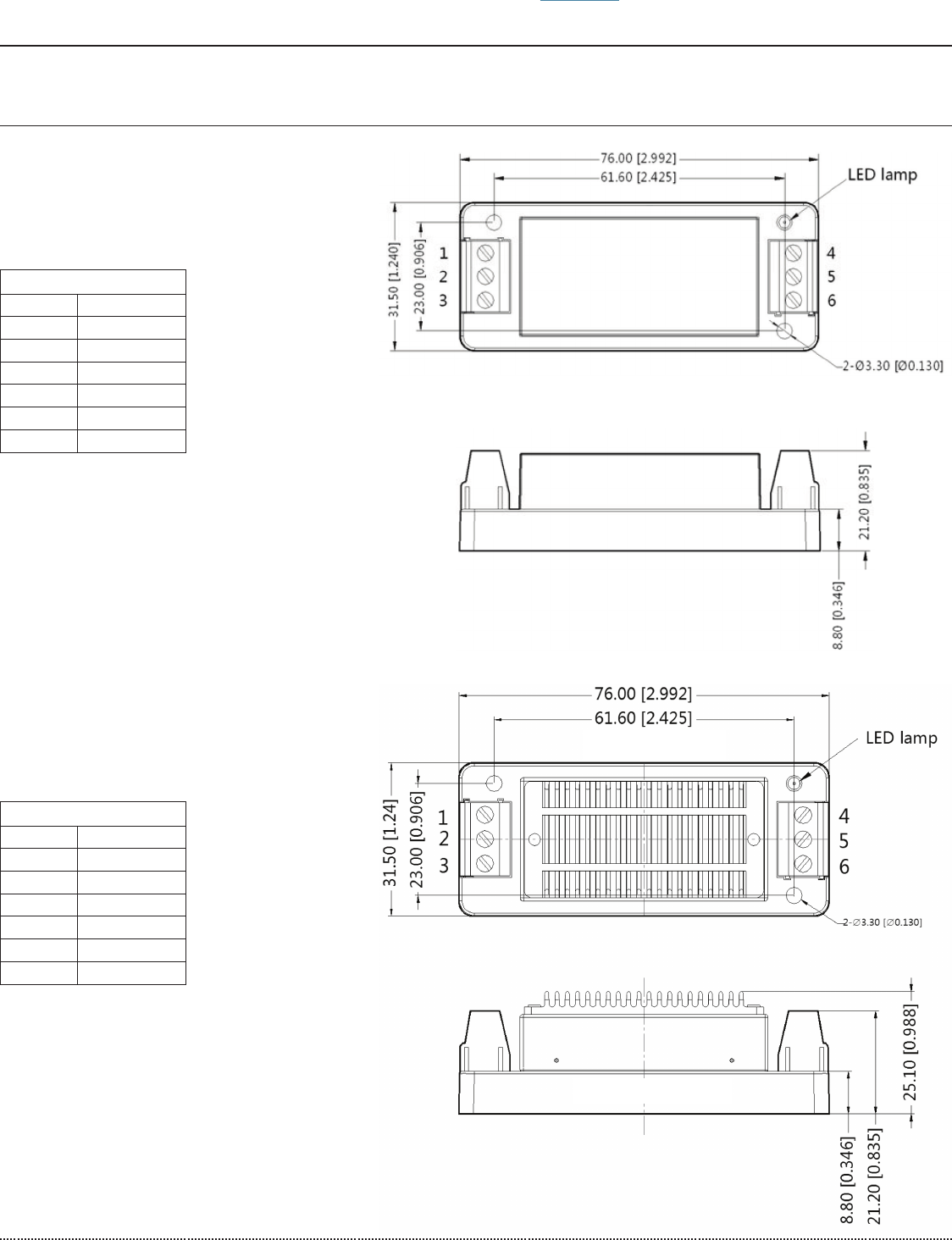

MECHANICAL DRAWING
