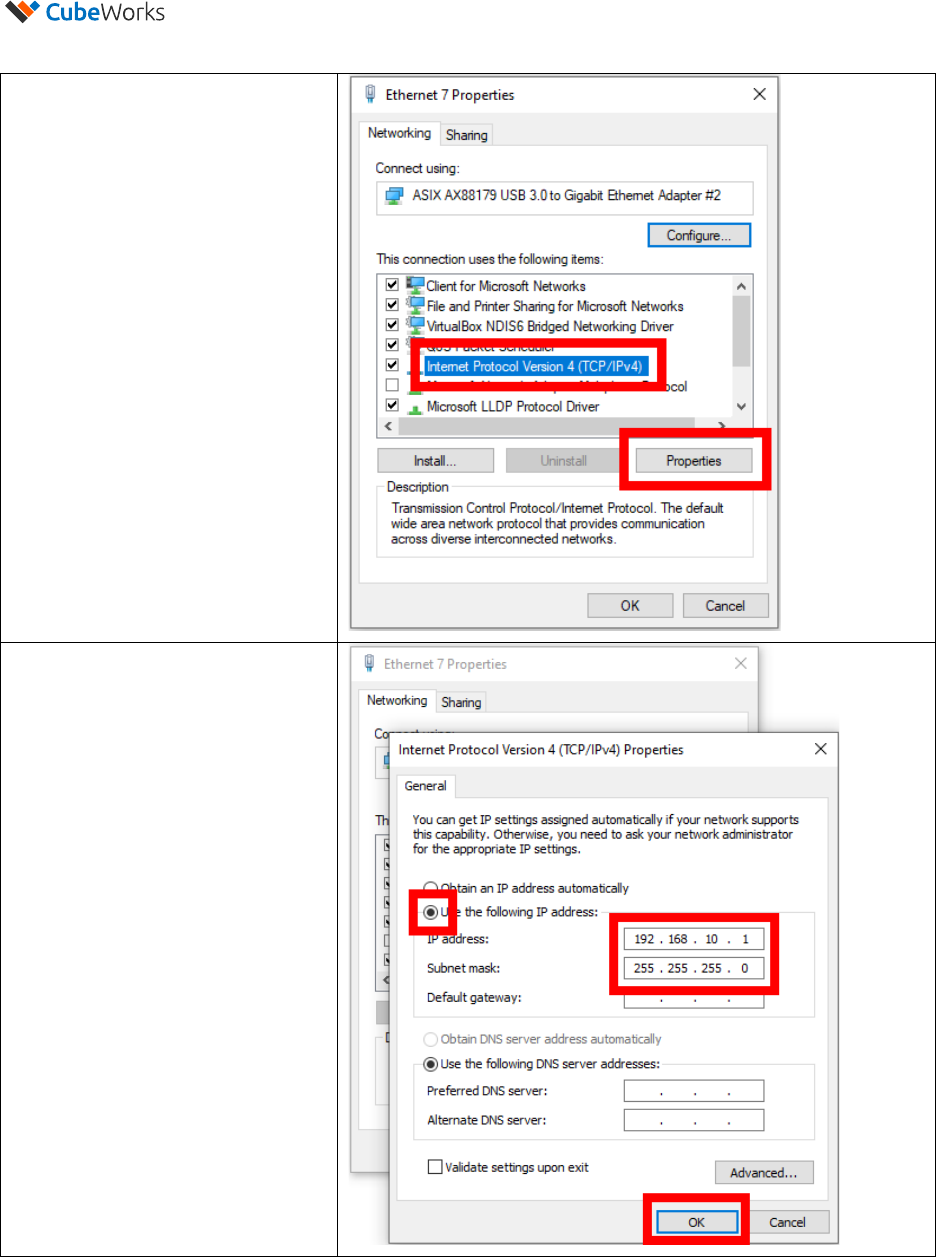

6. In the new window that opens
click on text
“Internet Protocol
Version 4(TCP/IPv4)” to select that
line. Be careful not to click on any
checkboxes. With “Internet
Protocol Version 4(TCP/IPv4)”
selected
click on the button
“Properties”.
7. Choose “Use the following IP
address:” and set the IP address to
192.168.10.1. The subnet mask
should automatically set itself to
255.255.255.0, but if not then set it
to that value. Verify that the
settings are a
s follows, then click
“OK”.
8.
Click “OK” in the ethernet
properties window, then close all
the windows opened during this
process.
The ethernet configuration for the
CubiSens™
Gateway is now
complete.
