3. Starting Measurement
To command the AH110 to start measuring temperature with a desired measurement interval:
1. Place the AH110 on the optical programmer.
2. Select the tab “Control” in the AH110 GUI.
3. Set the measurement interval.
4. Click the “Start Measurement” button.
5. After 3-4 seconds, the AH110 will reply with a “Measurement Started” message, the current
battery state, and starts measuring at the set interval.
6. The measured data will be displayed as a “Check-in” message from the particular AH110 unit,
identified by its “Chip ID”.
Note: The AH110 will start measuring temperature values until the user stops it using optical
communication. Refer to the AH110 Technical Datasheet for details on battery life.
4. Stopping Measurement
1. Place the AH110 on the optical programmer.
2. Click on “Stop Operation” to stop ongoing measurement operation and the AH110 will report its
current battery state.
Note: This command can also be used when the AH110 is not in measurement mode, for instance, to
check what the battery state is or to identify its Chip ID.

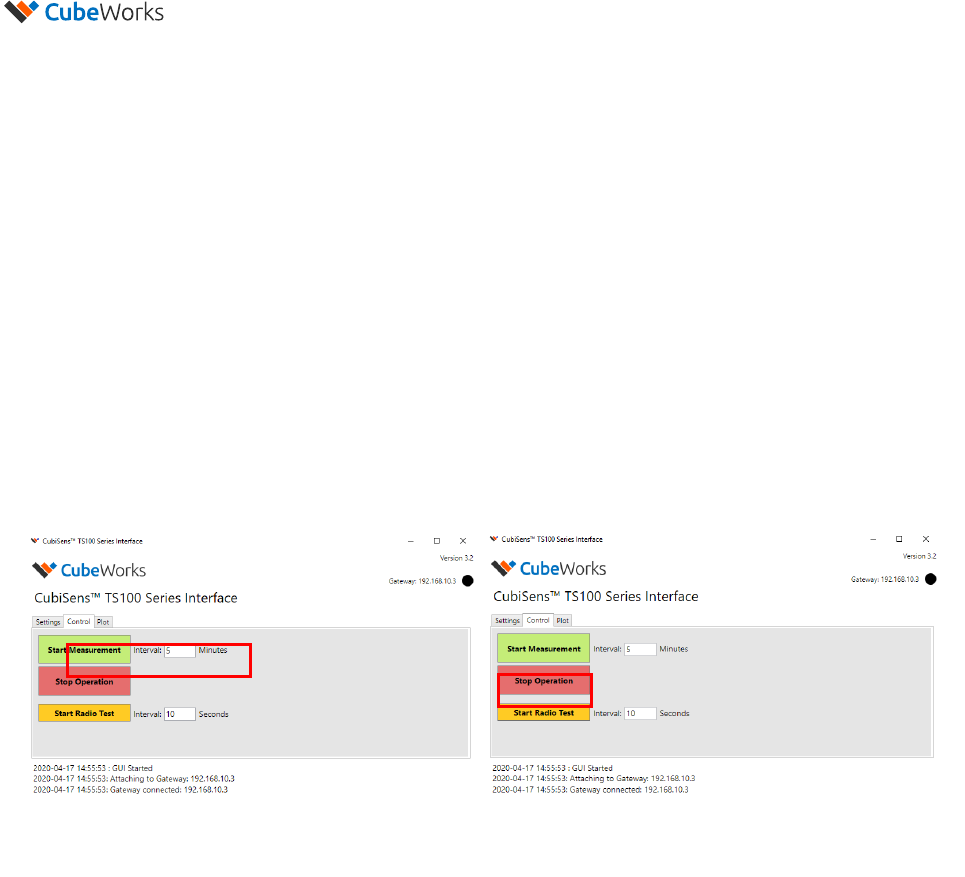

Figure 8: Starting & Stopping Measurement
