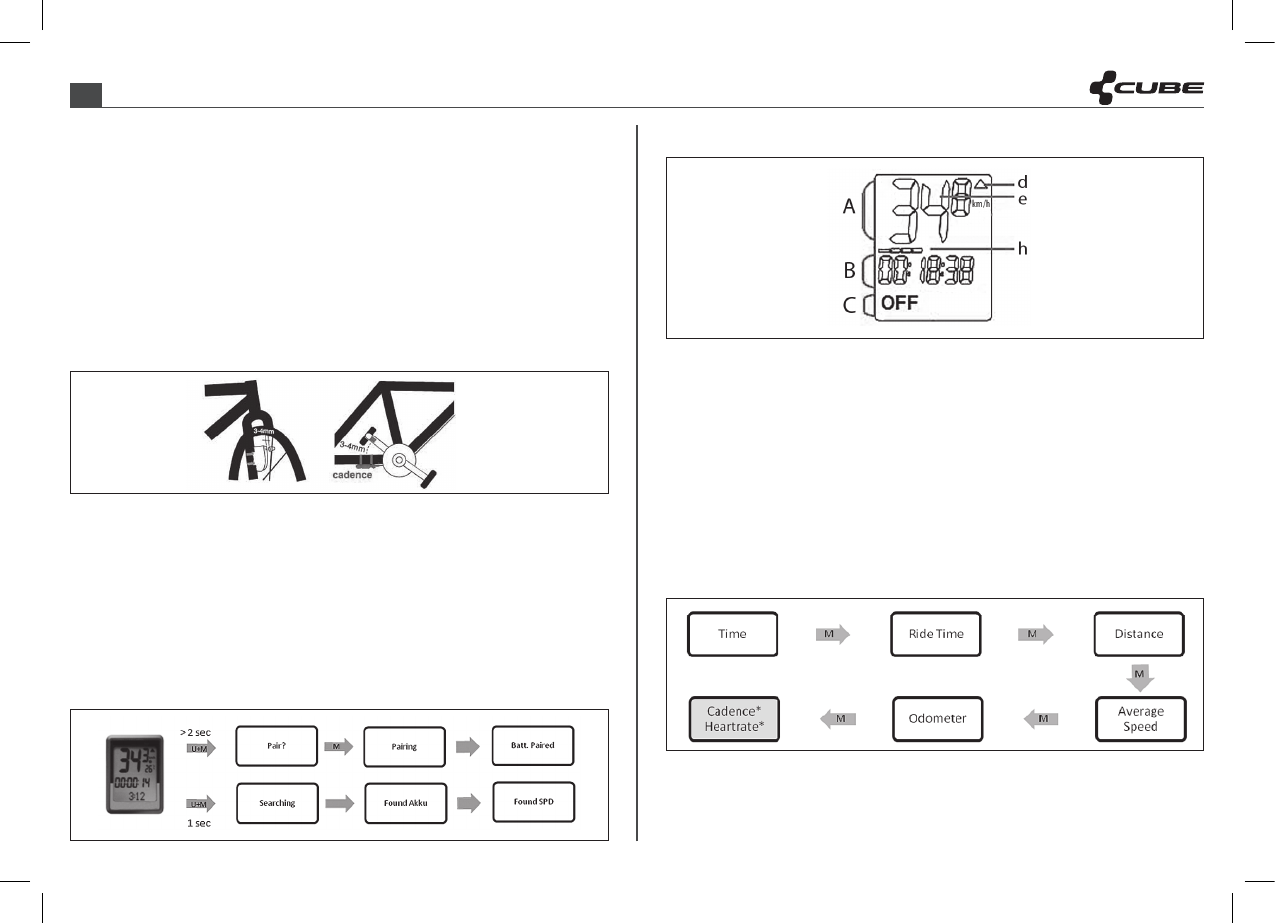

Pairing and Searching
Before you use your CUBE EPO pedelec system for the rst time, the
sensors must be paired once with the display. Make sure all sensors
are in direct vicinity and activated. Press the ON-button that is on the
housing of the rechargeable battery for 5 seconds.
In the case of the down tube and pannier rack option the four LEDs
should blink alternately. The rechargeable battery is now for 60 sec-
onds in the pairing mode. Press the upper O and middle M-button at
the same time for 2 seconds. Once the display shows PAIR?, conrm
with M. The pairing process starts.
Prior to any use the display searches the sensors. This is an automat-
ic process that starts after every waking up (moving the CUBE EPO
pedelec). It can, however, also be started manually by simultaneously
pressing the M and U-buttons for 2 seconds.
i
Please note that the rechargeable battery switches into
the sleep mode after eight days of non-use. The recharge-
able battery is restarted by pressing the ON-button on the
battery housing once.
Functions
The three sections of the display:
The top section (A) is static and shows permanently
• the speed (e),
• heart rate upper/lower limit (d) and
• the loading capacity of the rechargeable battery (h).
• this value is displayed in ten bars equal 100 % of charging capacity,
i.e. one bar means 10 % battery capacity.
The middle section (B) only shows current data. To switch through
the functions press M-button.
The bottom section (C) only serves to operate the levels of assist-
ance of the CUBE EPO pedelec drive. Therefore, this section is ex-
plained separately, as follows:
