Operator`s manual

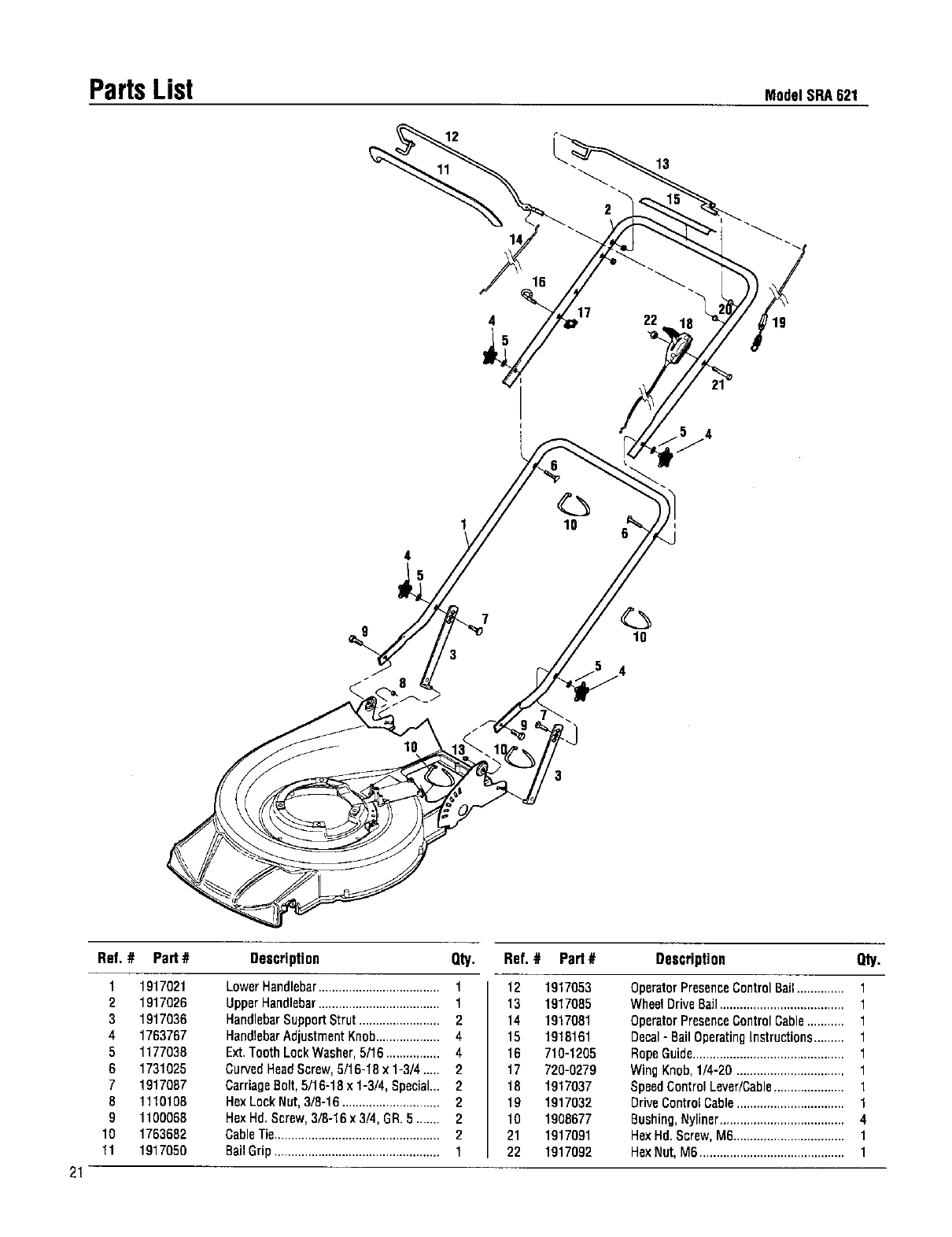

PartsList ModelSRA621
17
4
13
22
1 10
10
3
21
Ref.# Part# Description Qty.
1 1917021
2 1917026
3 1917036
4 1763767
5 1177038
6 1731025
7 1917087
8 1110108
9 1100068
10 1763682
11 1917050
LowerHandlebar.................................... 1
UpperHandlebar.................................... 1
HandlebarSupportStrut ........................ 2
HandlebarAdjustmentKnob................... 4
Ext.Tooth Lock Washer,5/16 ................ 4
CurvedHeadScrew,5/16-18 x 1-3/4..... 2
CarriageBolt, 5/16-18 x 1-3/4, Special... 2
HexLock Nut,3/8-16 ............................. 2
HexHd. Screw,3/8-16 x 3/4, GR.5 ....... 2
CableTie................................................. 2
Bail Grip................................................. 1
Ref.# Part# Description Qty.
12 1917053
13 1917085
14 1917081
15 1918161
16 710-1205
17 720-0279
18 1917037
19 1917032
10 1908677
21 1917091
22 1917092
OperatorPresenceControlBail.............. 1
Wheel DriveBail..................................... 1
OperatorPresenceControlCable........... 1
Decal- BailOperatingInstructions......... 1
RopeGuide............................................. 1
WingKnob,1/4-20 ................................ 1
SpeedControl Lever/Cable..................... 1
DriveControlCable................................ 1
Bushing,Nyliner..................................... 4
HexHd.Screw, M6................................. 1
HexNut, M6........................................... 1
