User guide

RZT-S Zero
94

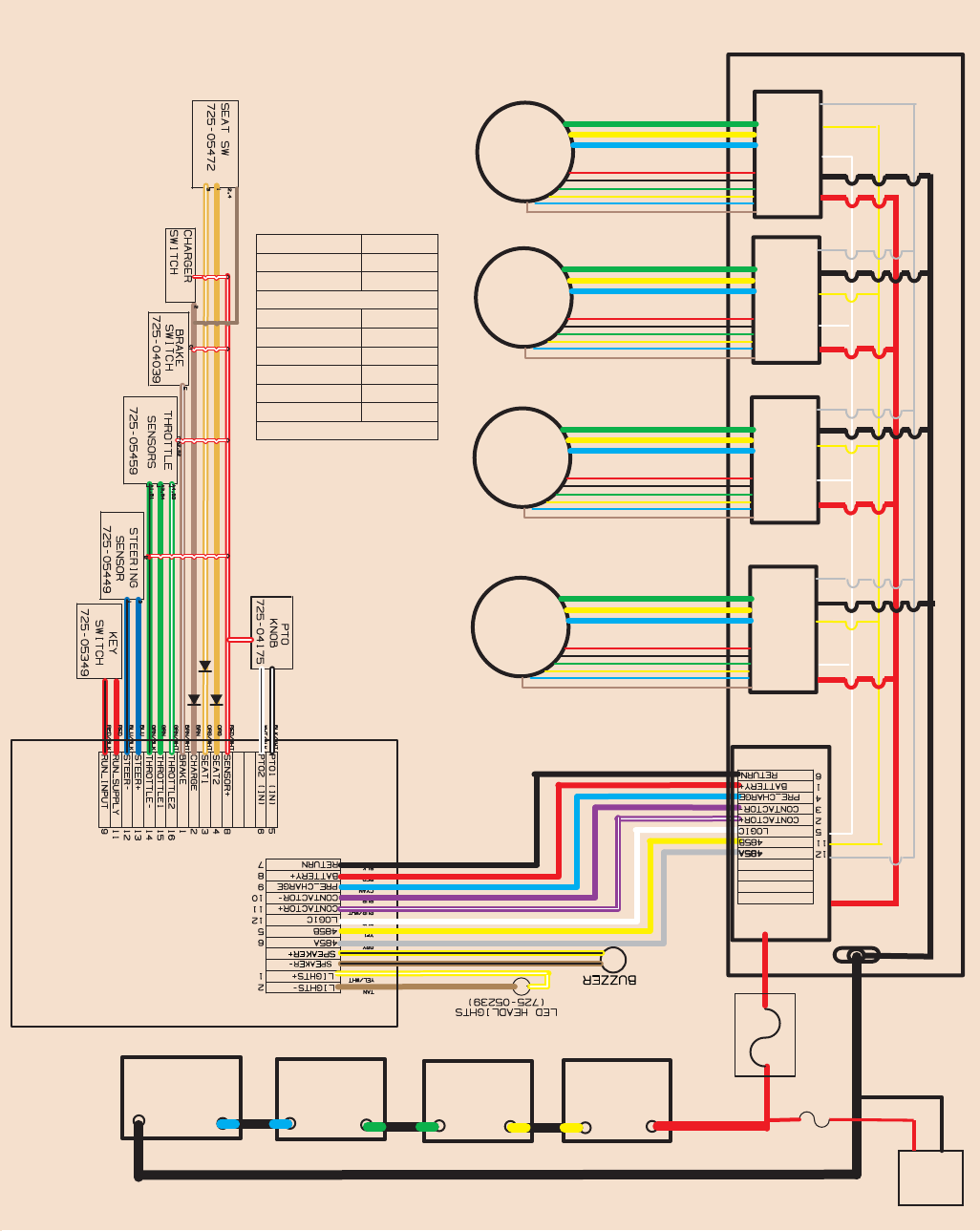

Schematic
VCM
Control Panel
Battery
+
-
Battery
+
-
Battery
+
-
Battery
+
-
contactor
R Deck
L Deck
R Hub
L Hub
Controller
Controller Controller
Controller
Sensor wires
RED +5 VOLTS
BLACK
SIGNAL GROUND
GREEN
HALL A
YELLOW
HALL B
BLUE
HALL C
THERMISTOR
BROWN
Heavy Gauge Wires
BLUE
PHASE W
YELLOW
PHASE V
GREEN
PHASE U
Main Fuse
Charger
port
