NOTE: If the one or both of the sensors jump from
one end of the scale to the other:
• Remove the two Phillips headed screws that
hold one of the hall effect sensor to the TPS
bracket. See Figure 5.44.
• Slide the magnet out of the TPS lever.
• Rotate the magnet 180
o
and re-insert it in the
TPS lever.
• Re-install the hall effect sensor.
• Calibrate the TPS by following the procedures
described in Chapter 4: Steering.

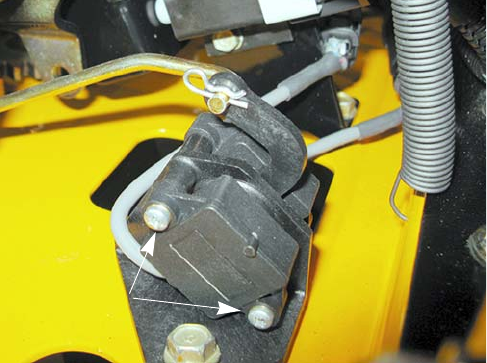

Figure 5.44
Screws
